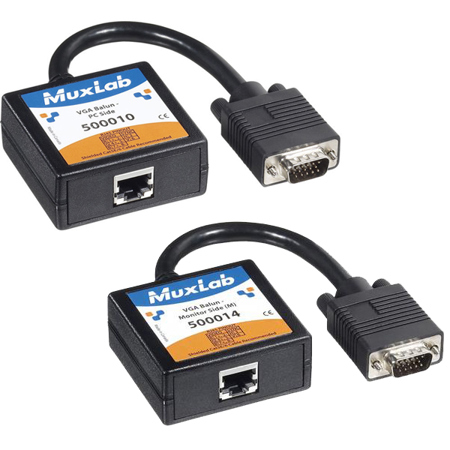

Muxlab VGA Over CAT5 Balun Extender Kit, Includes PC Side VGA Balun with 6" lead HD15 Plug and Monitor Side VGA Balun with 6" Lead HD15 Plug

SKU: ML50001014PK MFR: 500010-14-PK
$117.00
$180.00
Save: $63 (35%)
Earn VIP Reward Points

Key Features

  • Extend VGA signals up to 450 feet with this VGA over CAT5 extender kit for optimal signal quality.
  • Enjoy easy installation; this VGA balun kit includes everything needed for quick setup & use.
  • Use with CRT, LCD monitors, projectors; this VGA extender supports various display devices seamlessly.
  • Achieve reliable video transmission with a bandwidth of DC to 60 MHz using quality surveillance cables.
  • Ensure clear video with low insertion loss; less than 3dB, perfect for professional surveillance.
  • This durable VGA extender kit supports resolutions up to 1024x768, ensuring great display clarity.
See More Product Details
Special Order?Estimated to Ship: 09/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$19.99

3 Year

$30.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Balun Extender Kit Specifications

  • Environment

    VGAVESA VP&D 1.0VIP ver 2.0.

  • Devices

    CRT and flat-screen LCD monitors, plasma screens, laptops, PCs, multimedia projectors

  • Transmission

    Transparent to the user

  • Bandwidth

    DC to 60 MHz

  • Input Signals

    Video: 1.1Vp-p
    Horizontal synchronization: TTL standard, 300 kHz maximum bandwidth
    Vertical synchronization: TTL standard, 300 kHz maximum bandwidth

  • Insertion Loss

    Less than 3 dB per pair over the frequency range

  • Common Mode Rejection

    15 kHz: -60 dB maximum
    100 kHz to 10 MHz: -40 dB maximum
    100 MHz: -20 dB maximum

  • Video Signal Return Loss

    -15 dB maximum from DC to 60 MHz

  • Video Differential Gain

    +/- 2%

  • Video Differential Phase

    +/- 2%

  • Connectors

    RJ45 shielded
    500010:
    HD15 Plug (Connects to VGA output of PC), 6" lead
    500014:
    HD15 Plug (Connects to VGA monitor input), 6" lead

  • Maximum Distance via Cat5e/6

    VGA: 640 x 480 pixels (15 MHz), 450' (137 m)
    SVGA: 800 x 600 pixels (30 MHz), 350' (107 m)
    XGA: 1024 x 768 pixels (60 MHz), 250' (76 m)
    SXGA: 1280 x 1024 pixels (100 MHz), 200' (61 m)
    WXGA:1366 x 768 pixels, 180' (55 m)

  • RJ45 Pin Configuration

    R Video (Red), Pin 1 (+), Pin 2 (-) Balanced, Horizontal synchronization Pin 3
    G Video (Green), Pin 4 (+), Pin 5 (-) Balanced, Vertical synchronization Pin 6
    B Video (Blue), Pin 7 (+), Pin 8 (-) Balanced

  • Impedance

    Input: RGB 75 ohms (HD15) unbalanced
    Output: RGB 100 ohms (RJ45 shielded) balanced
    Horizontal and vertical sync: TTL standard

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    ABS fire retardant plastic

  • Mounting

    Free-standing Separate adhesive mounting pad included

  • Dimensions

    2.40 x 2.25 x 1.00" / 6.10 x 5.72 x 2.54cm

  • Weight

    3.87oz / 109.71g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Balun Extender Kit

Become an innovator in your video display setup with the high-quality VGA Over CAT5 Balun Extender Kit from Muxlab. This durable and efficient solution allows you to extend one VGA video channel through the use of four twisted pairs, transforming the way you connect and present visual content. The kit includes a reliable PC-side VGA Balun with a convenient 6" lead HD15 plug and a corresponding monitor-side VGA Balun, also with a 6" lead HD15 plug, ensuring a user-friendly installation process.

Crafted for versatility, the VGA Balun Extender Kit is compatible with a wide array of devices, making it a universal solution for a multitude of environments. Whether you're setting up for educational purposes in classrooms and lecture halls, enhancing audience engagement in auditoriums, or creating dynamic displays in retail kiosks and video information panels, this kit delivers a smart, fast, and cost-effective alternative to traditional coax cable connections.

Ideal for on-line advertising, tradeshows, hotel and convention centers, or mobile presentations, the VGA Balun Extender Kit facilitates collaborative viewing experiences with ease. Its robust design ensures a reliable connection, allowing for high-quality video transmission over longer distances with minimal signal degradation.

The Muxlab brand is synonymous with excellence in the industry, and this VGA Over CAT5 Balun Extender Kit is no exception. It stands as a testament to the brand's commitment to producing innovative and reliable products that meet the needs of today's tech-savvy consumers and professionals. Upgrade your video connectivity and embrace the clarity and convenience offered by this top-tier VGA extension solution.

Muxlab Balun Extender Kit Features

  • Up to 350 feet (106m) via Cat 5 twisted pair at 800x600 resolution
  • Supports up to 1280x1024 pixels
  • Works with desktop PCs, CRT monitors, laptops, multimedia projectors, plasma displays, flat panel multimedia displays
  • One VGA connector, RJ45 for twisted pair

Key Features

  • Extend VGA signals up to 450 feet with this VGA over CAT5 extender kit for optimal signal quality.
  • Enjoy easy installation; this VGA balun kit includes everything needed for quick setup & use.
  • Use with CRT, LCD monitors, projectors; this VGA extender supports various display devices seamlessly.
  • Achieve reliable video transmission with a bandwidth of DC to 60 MHz using quality surveillance cables.
  • Ensure clear video with low insertion loss; less than 3dB, perfect for professional surveillance.
  • This durable VGA extender kit supports resolutions up to 1024x768, ensuring great display clarity.

What's in the box:

  • Muxlab PC Side VGA Balun with 6 " lead HD15 Plug
  • Monitor Side VGA Balun with 6 " Lead HD15 Plug
  • Muxlab Lifetime Warranty
