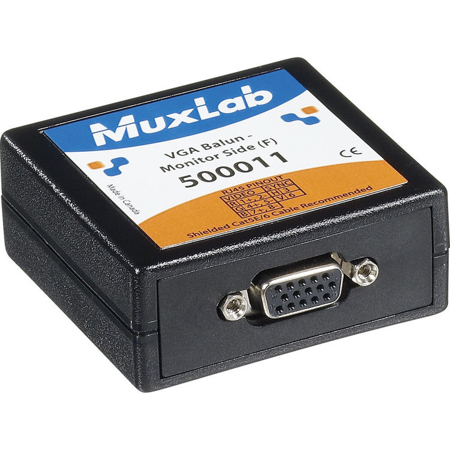

Muxlab Monitor Side VGA Balun with DB15HD Receptacle
See all Muxlab items
35% Off

Muxlab Monitor Side VGA Balun with DB15HD Receptacle

SKU: ML500011 MFR: 500011
Be the first to review this itemAsk a Question
$65.00
$100.00
Save: $35 (35%)
Earn VIP Reward Points

Key Features

  • Extend your VGA signal up to 450 feet with this reliable VGA balun over Cat5e/6.
  • Enjoy crystal-clear video with our VGA balun, supporting resolutions up to 1024x768.
  • This VGA extender balun supports CRT, LCD monitors, projectors, and plasma screens.
  • Easy to install, this VGA balun comes with an adhesive pad for secure mounting.
  • Get superior signal quality with this VGA balun, minimizing loss up to 60 MHz bandwidth.
  • This durable VGA to RJ45 balun ensures compatibility and long-lasting performance.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$11.99

3 Year

$16.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab Monitor Side VGA Balun Specifications

  • Environment

    VGAVESA VP&D 1.0VIP ver 2.0.

  • Devices

    CRT and flat-screen LCD monitors, plasma screens, laptops, PCs, multimedia projectors

  • Transmission

    Transparent to the user

  • Bandwidth

    DC to 60 MHz

  • Input Signals

    Video: 1.1Vp-pHorizontal synchronization: TTL standard, 300 kHz maximum bandwidth Vertical synchronization: TTL standard, 300 kHz maximum bandwidth

  • Insertion Loss

    Less than 3 dB per pair over the frequency range

  • Common Mode Rejection

    15 kHz: -60 dB maximum
    100 kHz to 10 MHz: -40 dB maximum
    100 MHz: -20 dB maximum

  • Video Signal Return Loss

    -15 dB maximum from DC to 60 MHz

  • Video Differential Gain

    +/- 2%

  • Video Differential Phase

    +/- 2%

  • Connectors

    HD15 receptacle (connects to VGA monitor input) RJ45 shielded

  • Maximum Distance via Cat5e/6

    VGA: 640 x 480 pixels (15 MHz), 450' (137 m)
    SVGA: 800 x 600 pixels (30 MHz), 350' (107 m)
    XGA: 1024 x 768 pixels (60 MHz), 250' (76 m)
    SXGA: 1280 x 1024 pixels (100 MHz), 200' (61 m)
    WXGA:1366 x 768 pixels, 180' (55 m)

  • RJ45 Pin Configuration

    R Video (Red), Pin 1 (+), Pin 2 (-) Balanced, Horizontal synchronization Pin 3
    G Video (Green), Pin 4 (+), Pin 5 (-) Balanced, Vertical synchronization Pin 6
    B Video (Blue), Pin 7 (+), Pin 8 (-) Balanced

  • Impedance

    Input: RGB 75 ohms (HD15) unbalanced
    Output: RGB 100 ohms (RJ45 shielded) balanced
    Horizontal and vertical sync: TTL standard

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    ABS fire retardant plastic

  • Mounting

    Free-standing Separate adhesive mounting pad included

  • Dimensions

    2.40 x 2.25 x 1.00" / 6.10 x 5.72 x 2.54cm

  • Weight

    2.34oz / 66.34g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Monitor Side VGA Balun

Make your video presentations, collaborative viewings, and digital advertising more efficient and cost-effective with the high-quality Monitor Side VGA Balun with DB15HD Receptacle. This durable and reliable device allows you to connect one VGA video channel via four twisted pairs, offering a smart and speedy alternative to traditional coax cable connections.

Designed for compatibility with a wide range of devices, this universal VGA Balun is an ideal solution for various settings, from classrooms and lecture halls to retail kiosks and online advertising platforms. Whether you're setting up for a tradeshow, a mobile presentation, or a video information display, this VGA Balun ensures clear, crisp image transfer for an optimal viewing experience.

The Monitor Side VGA Balun with DB15HD Receptacle is not just for commercial applications. It's also perfect for home use, making it a versatile addition to your audio and video equipment. Manufactured by Muxlab and sold by Adorama, a trusted retailer of top-brand photography equipment, digital cameras, lenses, pro audio and video, and professional gear and musical instruments, this VGA Balun is a testament to quality and reliability.

Experience the convenience of connecting VGA displays and projectors using twisted pair instead of coax cable, and enjoy high-quality image transfer with the Monitor Side VGA Balun with DB15HD Receptacle.

Muxlab Monitor Side VGA Balun Features

  • Up to 350 feet (106m) via Cat 5 twisted pair at 800x600 resolution
  • Supports up to 1280x1024 pixels
  • Works with desktop PCs, CRT monitors, laptops, multimedia projectors, plasma displays, flat panel multimedia displays
  • One (1) VGA connector (Monitor Side)
  • RJ45 for twisted pair

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your VGA signal up to 450 feet with this reliable VGA balun over Cat5e/6.
  • Enjoy crystal-clear video with our VGA balun, supporting resolutions up to 1024x768.
  • This VGA extender balun supports CRT, LCD monitors, projectors, and plasma screens.
  • Easy to install, this VGA balun comes with an adhesive pad for secure mounting.
  • Get superior signal quality with this VGA balun, minimizing loss up to 60 MHz bandwidth.
  • This durable VGA to RJ45 balun ensures compatibility and long-lasting performance.

What's in the box:

  • Muxlab Monitor Side VGA Balun with DB15HD Receptacle
  • Adhesive Mounting Pad
  • Muxlab Lifetime Warranty
