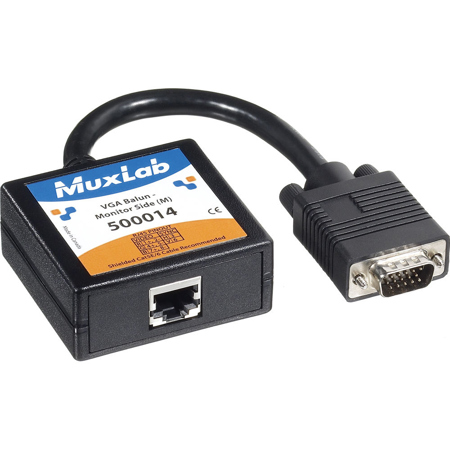

Muxlab Monitor Side VGA Balun with DB15HD Plug
See all Muxlab items
35% Off

Muxlab Monitor Side VGA Balun with DB15HD Plug

SKU: ML500014 MFR: 500014
Be the first to review this itemAsk a Question
$65.00
$100.00
Save: $35 (35%)
Earn VIP Reward Points

Key Features

  • Extend VGA signals up to 450 feet with this reliable Muxlab VGA balun for optimal performance.
  • Achieve crystal-clear video quality with our VGA balun, supporting resolutions up to 1024x768.
  • This VGA balun is perfect for connecting your PC to remote monitors, projectors, and plasma screens.
  • Enjoy easy installation with the included adhesive pad, making setup a breeze for your VGA setup.
  • Our durable VGA balun ensures long-lasting performance, ideal for both home and commercial setups.
  • This Muxlab VGA balun supports resolutions up to SXGA, ensuring a sharp display for your needs.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$11.99

3 Year

$16.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab Monitor Side VGA Balun Specifications

  • Environment

    VGAVESA VP&D 1.0VIP ver 2.0.

  • Devices

    CRT and flat-screen LCD monitors, plasma screens, laptops, PCs, multimedia projectors

  • Transmission

    Transparent to the user

  • Bandwidth

    DC to 60 MHz

  • Input Signals

    Video: 1.1Vp-pHorizontal synchronization: TTL standard, 300 kHz maximum bandwidth Vertical synchronization: TTL standard, 300 kHz maximum bandwidth

  • Insertion Loss

    Less than 3 dB per pair over the frequency range

  • Common Mode Rejection

    15 kHz: -60 dB maximum
    100 kHz to 10 MHz: -40 dB maximum
    100 MHz: -20 dB maximum

  • Video Signal Return Loss

    -15 dB maximum from DC to 60 MHz

  • Video Differential Gain

    +/- 2%

  • Video Differential Phase

    +/- 2%

  • Connectors

    HD15 Plug (Connects to VGA monitor input), 6" lead

  • Maximum Distance via Cat5e/6

    VGA: 640 x 480 pixels (15 MHz), 450' (137 m)
    SVGA: 800 x 600 pixels (30 MHz), 350' (107 m)
    XGA: 1024 x 768 pixels (60 MHz), 250' (76 m)
    SXGA: 1280 x 1024 pixels (100 MHz), 200' (61 m)
    WXGA:1366 x 768 pixels, 180' (55 m)

  • RJ45 Pin Configuration

    R Video (Red), Pin 1 (+), Pin 2 (-) Balanced, Horizontal synchronization Pin 3
    G Video (Green), Pin 4 (+), Pin 5 (-) Balanced, Vertical synchronization Pin 6
    B Video (Blue), Pin 7 (+), Pin 8 (-) Balanced

  • Impedance

    Input: RGB 75 ohms (HD15) unbalanced
    Output: RGB 100 ohms (RJ45 shielded) balanced
    Horizontal and vertical sync: TTL standard

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    ABS fire retardant plastic

  • Mounting

    Free-standing Separate adhesive mounting pad included

  • Dimensions

    2.40 x 2.25 x 1.00" / 6.10 x 5.72 x 2.54cm

  • Weight

    3.87oz / 109.71g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Monitor Side VGA Balun

The VGA Balun allows one (1) VGA video channel to be connected via four (4) twisted pairs. Used in pairs, the VGA Balun is used in home or commercial applications as a smart, fast and cost-effective means of connecting VGA displays and projectors using twisted pair instead of coax cable. Ideal for classrooms, lecture halls, auditoriums, retail kiosks, video information displays, on-line advertising, tradeshows, hotel and convention centers, mobile presentations, collaborative viewing.

Muxlab Monitor Side VGA Balun Features

  • Up to 350 feet (106m) via Cat 5 twisted pair at 800x600 resolution
  • Supports up to 1280x1024 pixels
  • Works with desktop PCs, CRT monitors, laptops, multimedia projectors, plasma displays, flat panel multimedia displays
  • One (1) VGA connector (Monitor Side)
  • RJ45 for twisted pair

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend VGA signals up to 450 feet with this reliable Muxlab VGA balun for optimal performance.
  • Achieve crystal-clear video quality with our VGA balun, supporting resolutions up to 1024x768.
  • This VGA balun is perfect for connecting your PC to remote monitors, projectors, and plasma screens.
  • Enjoy easy installation with the included adhesive pad, making setup a breeze for your VGA setup.
  • Our durable VGA balun ensures long-lasting performance, ideal for both home and commercial setups.
  • This Muxlab VGA balun supports resolutions up to SXGA, ensuring a sharp display for your needs.

What's in the box:

  • Muxlab Monitor Side VGA Balun with DB15HD Plug
  • Adhesive Mounting Pad
  • Muxlab Lifetime Warranty
