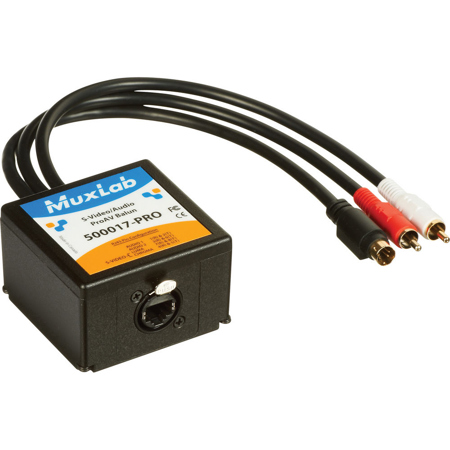

Muxlab S-Video/Audio ProAV Balun Transmitter
See all Muxlab items
35% Off

Muxlab S-Video/Audio ProAV Balun Transmitter, 20Hz-20KHz Audio Bandwidth

SKU: ML500017PRO MFR: 500017-PRO
Be the first to review this itemAsk a Question
$71.50
$110.00
Save: $38.5 (35%)
Earn VIP Reward Points

Key Features

  • Extend your audio/video reach up to 1000ft with this S-Video balun transmitter over Cat5e/6.
  • Enjoy crystal-clear audio with a 20Hz-20KHz bandwidth, perfect for pro AV applications.
  • This S-Video balun offers transparent signal transmission, ensuring top-notch video quality.
  • Easily connect DVD players, cameras, and more with this versatile S-Video audio transmitter.
  • Reduce signal loss with our balun's superior common mode rejection, greater than 40dB.
  • Built to last, the fire-retardant plastic enclosure ensures durability and reliable performance.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.49

2 Year

$12.99

3 Year

$18.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab S-Video/Audio ProAV Balun Transmitter Specifications

  • Environment

    S-video equipment

  • Devices

    DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks, monitors, LCD projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, S-video splitters, S-video converters and other S-video equipment.

  • Transmission

    Transparent to the user

  • Cable - UTP

    24 AWG or lower solid copper twisted pair wire
    Impedance: 100 ohms at 1 MHz
    Maximum capacitance: 20 pf/foot
    Attenuation: 6.6 dB/1000' at 1 MHz

  • Audio: Bandwidth

    20 Hz to 20 KHz

  • Audio: Impedance

    600 ohms min

  • Audio: Maximum Input

    1.1 Vp-p

  • Audio: Insertion Loss

    Less than 2 dB per pair over the frequency range

  • Audio: Common Mode Rejection

    Greater than 60 dB at 1 KHz
    Greater than 40 dB over the frequency and distance range

  • Audio: Max. Distance via CAT 5e/6 UTP

    3250' (990 m)

  • Audio: RJ45 Pin Configuration

    Audio 1: pins 1 [R] & 2 [T]
    Audio 2: pins 3 [R] & 6 [T]

  • S-Video: Bandwidth

    DC to 6 MHz

  • S-Video: Impedance

    75 ohms

  • S-Video: Maximum Input

    1.1 Vp-p

  • S-Video: Insertion Loss

    Less than 2 dB per pair over the frequency range from DC to 6 MHz

  • S-Video: Return Loss

    Better than 15 dB over the frequency range

  • S-Video: Common Mode Rejection

    Greater than 40 dB over the frequency range

  • S-Video: Max. Distance (CAT 5e/6 UTP)

    1,000' (305 m)

  • S-Video: RJ45 Pin Configuration

    S-video Luma: pins 7 [R] &8 [T]
    S-video Chroma: pins 4 [R] & 5 [T]

  • Connectors

    4-pin Mini DIN S-video 12" (30.5 cm) cable lead
    2 RCA audio jacks for stereo audio
    Ethercon RJ45 for CAT 5e

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    Fire retardant plastic

  • Dimensions

    2.75 x 2.64 x 1.97" / 6.99 x 6.71 x 5.00cm
    Plus 12" / 30.48cm cable lead

  • Weight

    0.54lbs / 0.24kg

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab S-Video/Audio ProAV Balun Transmitter

You can experience superior signal transmission with the high-quality S-Video/Audio ProAV Balun Transmitter. This efficient device allows for the transmission of one S-Video channel and one stereo audio channel via unshielded twisted pair (UTP) cable for distances up to 1,000ft (305m) in a point-to-point connection.

Designed with a robust metal enclosure, this durable Balun Transmitter is built to withstand the rigors of a demanding professional audio-video environment. It features Ethercon RJ45 and heavy-duty, built-in cable leads, ensuring reliable and uninterrupted signal transmission.

The S-Video/Audio ProAV Balun Transmitter boasts a high audio bandwidth of 20Hz-20KHz, capable of transmitting a wide range of audio frequencies for high-quality sound. It is a user-friendly device that converts RCA to RJ45 signals, making it a versatile solution for various applications.

This reliable Balun Transmitter is compatible with the 500017, 500038, and 500038-WP models, offering more flexibility in your cabling options. Whether you're setting up a CCTV and security system or working on pro audio and video applications, the S-Video/Audio ProAV Balun Transmitter is a dependable choice for long-distance signal transmission.

Muxlab S-Video/Audio ProAV Balun Transmitter Features

  • Rugged metal enclosure
  • Robust Ethercon RJ45
  • Heavy-duty built-in 12" cable harness
  • Up to 1,000 feet (305m) via Cat5e/6 UTP
  • 20 Hz to 20 kHz audio bandwidth
  • Compatible with 500017, 500038, 500038-WP

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your audio/video reach up to 1000ft with this S-Video balun transmitter over Cat5e/6.
  • Enjoy crystal-clear audio with a 20Hz-20KHz bandwidth, perfect for pro AV applications.
  • This S-Video balun offers transparent signal transmission, ensuring top-notch video quality.
  • Easily connect DVD players, cameras, and more with this versatile S-Video audio transmitter.
  • Reduce signal loss with our balun's superior common mode rejection, greater than 40dB.
  • Built to last, the fire-retardant plastic enclosure ensures durability and reliable performance.

What's in the box:

  • Muxlab S-Video/Audio ProAV Balun Transmitter
  • Muxlab Lifetime Warranty
