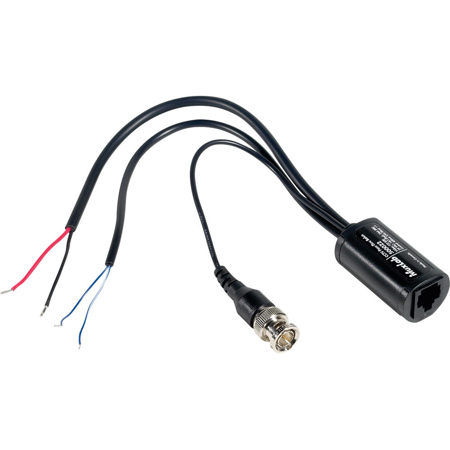

Muxlab CCTV Pass-Thru Balun

SKU: ML500022 MFR: 500022
Be the first to review this itemAsk a Question
$21.00
$32.00
Save: $11 (34%)
Earn VIP Reward Points

Key Features

  • Extend CCTV camera signals up to 2200ft with this transparent Muxlab CCTV Balun.
  • Enjoy superior video quality with less than 2dB insertion loss using this CCTV balun.
  • Simplify CCTV setups; supports baseband video like NTSC, PAL, and SECAM effortlessly.
  • This CCTV Pass-Thru Balun supports remote low voltage power via twisted pairs.
  • Easily manage PTZ camera control up to 4000ft with the 2-wire PTZ control feature.
  • Use with DVRs, IP encoders, and other CCTV equipment for seamless integration.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$4.99

3 Year

$7.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab CCTV Pass-Thru Balun Specifications

  • Environment

    Baseband video; NTSC, PAL, SECAM

  • Devices

    Close-circuit TV (CCTV) cameras, monitors, switchers, IP encoders, digital video recorders (DVRs) and other CCTV equipment

  • Transmission

    Transparent to the user

  • Video: Bandwidth

    DC to 8 MHz

  • Video: Maximum Input

    1.1Vp-p

  • Video: Insertion Loss

    Less than 2 dB per pair over the frequency range from DC to 8 MHz

  • Video: Return Loss

    Greater than 15 dB over the frequency range from DC to 8 MHz

  • Video: Common Mode Rejection

    Greater than 40 dB at 8 MHz

  • Video: Maximum Distance

    Color: Cat 3 - 1200' (365m), Cat 5 - 2200' (670m)
    Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m)
    B/W: Cat 3 - 1500' (457m), Cat 5 - 2500' (762m)

  • Remote Power: Wiring

    Remote low voltage power supported via two (2) twisted pairs. A Class II power supply is recommended

  • Remote Power: Maximum Distance

    (at 24VAC via two twisted pairs)

    5 vA: 350' (107m)
    10 vA: 175' (53m)
    20 vA: 90' (30m)
    30 vA: 60' (20m) Based on 10% voltage drop at camera. Longer distances may be achieved at 28 VAC.

  • PTZ: Wiring

    2-Wire PTZ Control (i.e. RS-422, Manchester/Bi-Phase, half duplex RS485)
    Wiring: Remote 2-wire PTZ control supported via one (1) twisted pair

  • PTZ: Maximum Distance

    Up to 4,000' (1.2 km) depending on the PTZ camera vendor

  • PTZ: Maximum Power

    Maximum Power Rating: 50 Volts (AC RMS/DC)
    3A (AC RMS/DC)

  • PTZ: Maximum Input Voltage

    50 Volts (AC RMS/DC)

  • PTZ: Maximum Current

    3A (AC RMS/DC)

  • Cable Requirements

    UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
    Maximum capacitance: 20 pf/foot
    Attenuation: 6.6 dB/1000' (305m) at 1 MHz
    BNC:
    Impedance: 75 ohms at 1 MHz (RG59/U mini coax)
    Max. 25' (7.6m) of coax allowed end to end

  • Connectors

    Combined signals: RJ45
    Video: BNC-male 8" (203mm) mini-coax lead
    Power: 2-wire 18AWG lead
    Control: 2-wire 24AWG twisted pair lead

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    ABS fire retardant plastic

  • Dimensions

    1.87 x 1.0" / 4.75 x 2.54cm Diameter Plus Cable Leads
    8" / 20.32cm for video
    10" / 25.4cm for power and control leads

  • Weight

    1.95oz / 55.28g

About Muxlab CCTV Pass-Thru Balun

How can you streamline your CCTV security and surveillance setup The Muxlab CCTV Pass-Thru Balun is the answer. This innovative device is engineered to transmit video, 2-wire PTZ (Pan, Tilt, Zoom) control, and remote power through a single 4-pair Cat5e/6 cable. By consolidating your connections, it eliminates the need for multiple cables, leading to a more efficient and less cluttered installation process.

Crafted with durability in mind, the high-quality Pass-Thru Balun is a testament to Muxlab's commitment to reliable and long-lasting products. Its compatibility with a wide range of CCTV cameras makes it a versatile choice for various surveillance systems. Whether you're setting up a new system or upgrading an existing one, this balun ensures a seamless integration with other Muxlab CCTV baluns, including models 500000, 500009, 500023, and 500015.

The Muxlab CCTV Pass-Thru Balun is not just a practical solution; it's a testament to the brand's innovative approach to surveillance technology. By simplifying the cabling requirements, this device allows for a more streamlined and efficient CCTV setup. Choose the Muxlab CCTV Pass-Thru Balun for a professional-grade solution that upholds the integrity of your surveillance system.

Muxlab CCTV Pass-Thru Balun Features

  • Combines video, PTZ control and remote power under one 4-pair Cat 5 cable for more efficient cabling
  • Video up to 2200 ft (670m) via Cat 5 UTP
  • Remote power up to 350ft (106m)at 24VAC/5VA via two (2) twisted pairs

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend CCTV camera signals up to 2200ft with this transparent Muxlab CCTV Balun.
  • Enjoy superior video quality with less than 2dB insertion loss using this CCTV balun.
  • Simplify CCTV setups; supports baseband video like NTSC, PAL, and SECAM effortlessly.
  • This CCTV Pass-Thru Balun supports remote low voltage power via twisted pairs.
  • Easily manage PTZ camera control up to 4000ft with the 2-wire PTZ control feature.
  • Use with DVRs, IP encoders, and other CCTV equipment for seamless integration.

What's in the box:

  • Muxlab CCTV Pass-Thru Balun
  • Muxlab Lifetime Warranty
