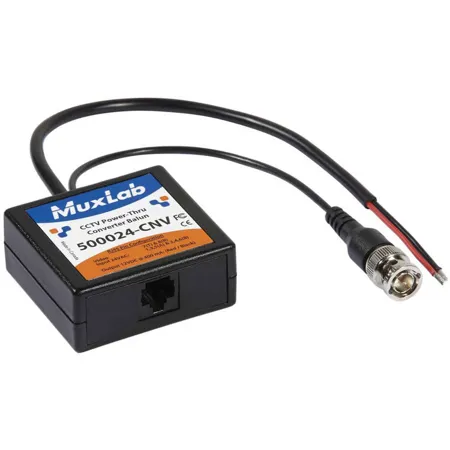

Muxlab CCTV Power-Thru Converter Balun
See all Muxlab items
32% Off

Muxlab CCTV Power-Thru Converter Balun, Converts 24VAC to 12VDC

SKU: ML500024CNV MFR: 500024-CNV
Be the first to review this itemAsk a Question
$61.00
$90.00
Save: $29 (32%)
Earn VIP Reward Points

Key Features

  • Extend your CCTV camera range up to 2,200 ft using CAT5e/6 cable with this converter balun.
  • This CCTV Power-Thru Converter Balun supports both 24VAC to 12VDC power conversion easily.
  • Enjoy clear video signals with a bandwidth of DC to 8 MHz, ensuring quality CCTV footage.
  • Simplify your security setup with easy installation using standard RJ45 and BNC connectors.
  • Maximize compatibility; this balun works seamlessly with CCTV cameras, DVRs, and monitors.
  • Weather-resistant design ensures reliable performance for your surveillance cables & accessories.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.49

2 Year

$10.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab CCTV Power-Thru Converter Balun Specifications

  • Environment

    Baseband video; NTSC, PAL, SECAM

  • Devices

    Close-circuit TV (CCTV) cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVR) and other CCTV equipment

  • Transmission

    Transparent to the user

  • Video: Bandwidth

    DC to 8 MHz

  • Video: Impedance

    Input: 75 Ω (BNC), Output: 100 Ω (RJ45)

  • Video: Maximum Input

    1.1 Vpp

  • Video: Insertion Loss

    Less than 2 dB per pair over the frequency range from DC to 8 MHz

  • Video: Return Loss

    Greater than 15 dB over the frequency range from DC to 8 MHz

  • Video: Common Mode Rejection

    Greater than 40 dB at 8 MHz

  • Video: Maximum Distance

    ColorCAT3: 1,200' (365 m), CAT5e/6: 2,200' (670 m)B&WCAT3: 1,500' (457 m), CAT5e/6: 2,500' (762 m) Color: Certain models of DVR may yield shorter distances of 1,000 to 1,500' (304.8 to 457.2 m).

  • Remote Power: Wiring

    Remote power via 3 twisted pairs
    Class II power supply recommended.

  • Remote Power: Maximum Distance

    795' (242 m) with 24 VAC or 1,113' ( (339 m) with 28 VAC With a maximum consumption of 400 mA.

  • Remote Power: Input Voltage

    13 to 30 VAC/DC

  • Remote Power: Output Voltage

    12 VDC/400 mA

  • Cable Type

    UTP:
    24 AWG or lower solid copper twisted pair wire Impedance: 100 Ohms at 1 MHz
    Maximum Capacitance: 20 pF/ft
    Attenuation: 6.6 dB per 1,000' (304.8 m) at 1 MHz
    Coax:
    Impedance: 75 Ohms at 1 MHz (RG59/U)
    Maximum 25.0' (7.6 m) of coax allowed end to end

  • Connectors

    Video: BNC male 8.0" (20.3 cm) mini-coax lead
    Power: 2-wire 18 AWG lead

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    ABS fire-retardant plastic

  • Dimensions

    1.87 x 1.0" / 4.75 x 2.54cm Diameter Plus Cable Leads
    8" / 20.32cm for video
    10" / 25.4cm for power and control leads

  • Weight

    1.95oz / 55.28g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab CCTV Power-Thru Converter Balun

You can streamline your security and surveillance setup with the CCTV Power-Thru Converter Balun, a versatile device that simplifies cabling by transmitting both video and remote power through a single 4-pair Cat5e/6 cable. This innovative solution eliminates the need for multiple cables, making it an ideal choice for analog CCTV security systems.

One of the key features of this converter balun is its ability to convert 24VAC to 12VDC. This functionality enables 12VDC cameras to be powered remotely from a centralized 24VAC CCTV power supply, enhancing the efficiency and flexibility of your surveillance system.

Designed for installation at the camera side, the CCTV Power-Thru Converter Balun is compatible with Muxlab's CCTV Power-Thru Balun (500024), Passive CCTV Power Integrator Hub (500136), and Passive CCTV Hub (500130). This compatibility ensures a comprehensive and seamless cabling solution for your security needs.

Incorporating the CCTV Power-Thru Converter Balun into your system not only simplifies your cabling but also optimizes your CCTV security and surveillance environment.

Muxlab CCTV Power-Thru Converter Balun Features

  • Video and remote power via one 4-pair Cat5e/6 cable
  • Converts 24VAC to 12VDC/400mA at the camera
  • Video up to 2200 ft (670m) via Cat 5e/6 UTP
  • Transmits 24VAC up to 795 ft (242m) at 400mA max
  • Installed at the camera side
  • Works with 500024/130/124/126/127/136

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your CCTV camera range up to 2,200 ft using CAT5e/6 cable with this converter balun.
  • This CCTV Power-Thru Converter Balun supports both 24VAC to 12VDC power conversion easily.
  • Enjoy clear video signals with a bandwidth of DC to 8 MHz, ensuring quality CCTV footage.
  • Simplify your security setup with easy installation using standard RJ45 and BNC connectors.
  • Maximize compatibility; this balun works seamlessly with CCTV cameras, DVRs, and monitors.
  • Weather-resistant design ensures reliable performance for your surveillance cables & accessories.

What's in the box:

  • Muxlab CCTV Power-Thru Converter Balun
  • Muxlab Lifetime Warranty
