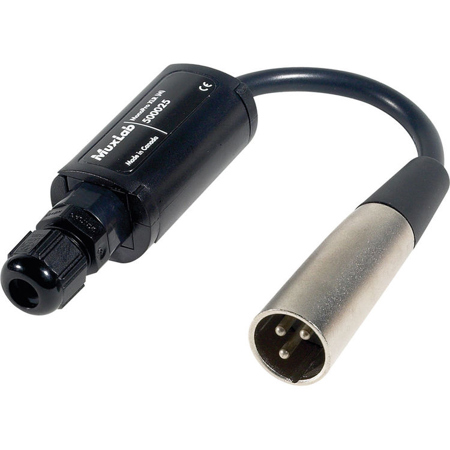

Muxlab MonoPro XLR3-Male Connector Balun

SKU: ML500025 MFR: 500025
$27.00
Earn VIP Reward Points

Key Features

  • Extend audio signals up to 5,000ft with this XLR balun, ensuring top signal quality.
  • Use this XLR to terminal balun for balanced line level or microphone analog audio setups.
  • Achieve transparent audio transmission; this balun is user-friendly & easy to install.
  • This durable balun supports digital audio up to 1,400ft, perfect for pro installations.
  • Ensure compatibility with AES/EBU standards using this high-performance Muxlab balun.
  • Weather-resistant design allows for reliable use in diverse environments with this balun.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Muxlab MonoPro XLR Male Balun Specifications

  • Environment

    Analog Audio: Balanced line level or microphone analog audio
    Digital Audio: Balanced line level digital audio

  • Signal Amplitude

    Analog Audio: Phase polarity sensitive
    Digital Audio: Not polarity sensitive

  • Impedance

    Analog Audio: Output: 600 Ω / Input: 600-20kΩ
    Digital Audio: 110 Ω

  • Signal

    Analog Audio: Professional balanced analog line level or microphone
    Digital Audio: Professional balanced digital line level

  • Maximum Distance

    Analog Audio
    Line level: 5,000' (1.5 km)
    Mic level: 3,000' (914m)

    Digital Audio
    32 kHz: 1,400' (426m)
    44.1 kHz: 1,300' (396m)
    48 kHz: 1,250' (381m)
    96 kHz: unspecified

  • Frequency Response

    DC to 6 MHz

  • Transmission

    Transparent to the user

  • Insertion Loss

    Less than 1 dB/pair from DC to 6 MHz - per balun pair

  • Return Loss

    Less than 15dB from DC to 6 MHz

  • Common Mode Rejection

    Greater than 45 dB

  • UTP

    24 gauge or lower solid copper twisted pair wire Impedance: 100 Ohms at 1 MHz
    Maximum capacitance: 20 pf/foot
    Attenuation: 6.6 dB/1000' (305m) at 1 MHz

  • Connectors

    XLR Male (3 pin)
    Two (2) screw terminals for signal
    One (1) screw terminal for optional shield (ground)

  • Pins

    XLR Pin 1: Shield
    XLR Pin 2: Positive
    XLR Pin 3: Return

    UTP Pin 1: Ground (optional)
    UTP Pin 2: Tip [T]
    UTP Pin 3: Ring [R]

  • Strain Relief

    Threaded and tapered cable grip mechanism

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    Fire retardant plastic. UL94-V0

  • Standards

    AES/EBU 1982, AES-1992, ANSI S.40-1992, IEC-958

  • Regulatory

    FCC, CE

  • Dimensions

    Overall: (Dia x L): 1.87 x 1.0" / 4.75 x 2.54cm Plus 5" / 12.7cm XLR3 Lead

  • Weight

    2.64oz / 74.84g

  • UPC Code

    627699000250

Designed For Use With:

  • Muxlab

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab MonoPro XLR Male Balun

An essential tool for professional audio setups, the Muxlab MonoPro XLR3-Male Connector Balun is designed to extend a standard AES analog or digital XLR audio channel via a single Cat5e/6 cable. This high-quality connector balun is ideal for use in demanding environments such as live events, rental, or staging, thanks to its heavy-duty cable strain relief.

The MonoPro XLR3-Male Connector Balun comes equipped with secure locking XLR3 connectors, ensuring a stable and reliable connection at all times. It is compatible with active microphones, requiring the ground pin to be connected at both ends for optimal performance.

This versatile audio accessory allows for the extension of stereo signals up to distances of 5,000ft / 1.5km, making it a great choice for large venues or outdoor events. For digital audio signals, it can extend up to a distance of 1,400ft / 426m, ensuring clear and uninterrupted sound quality.

The 500025 model of the Muxlab MonoPro XLR3-Male Connector Balun features an XLR3 plug and an XLR3 socket respectively, offering a seamless integration with your existing audio equipment. Whether you're a professional sound engineer or an audio enthusiast, this connector balun is a valuable addition to your audio setup.

Muxlab MonoPro XLR Male Balun Features

  • Line level audio up to distances of 5,000ft / 1.5km via single Cat5e/6
  • Digital audio up to distances of 1,400ft / 426m via single Cat5e/6
  • Cat5e/6 cable terminates inside the balun
  • Locking metal XLR3 male connector with cable strain relief
  • Optional terminal for ground / shield

Key Features

  • Extend audio signals up to 5,000ft with this XLR balun, ensuring top signal quality.
  • Use this XLR to terminal balun for balanced line level or microphone analog audio setups.
  • Achieve transparent audio transmission; this balun is user-friendly & easy to install.
  • This durable balun supports digital audio up to 1,400ft, perfect for pro installations.
  • Ensure compatibility with AES/EBU standards using this high-performance Muxlab balun.
  • Weather-resistant design allows for reliable use in diverse environments with this balun.

What's in the box:

  • Muxlab MonoPro XLR3-Male Connector Balun
  • Muxlab Lifetime Warranty
