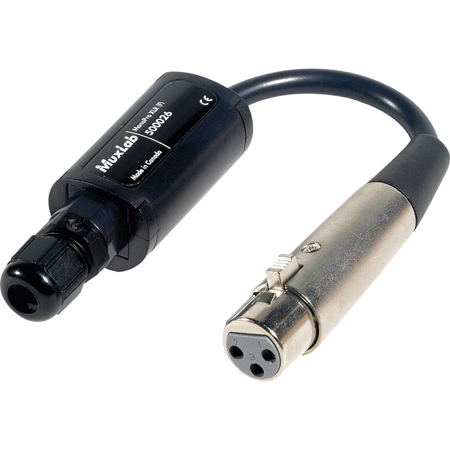

Muxlab MonoPro XLR3-Female Connector Balun

SKU: ML500026 MFR: 500026
$27.00
Earn VIP Reward Points

Key Features

  • Extend your audio reach up to 5,000ft with this XLR3-Female Connector Balun for balanced signals.
  • Enjoy crystal-clear audio with a frequency response from DC to 6 MHz using this balun.
  • This durable balun features a fire-retardant enclosure, ensuring long-lasting performance.
  • Achieve optimal signal strength with impedance matching for professional balanced audio setups.
  • Easy to install with screw terminals; this balun supports both line and microphone levels.
  • Ensure compatibility with AES/EBU standards for pro audio using this Muxlab connector balun.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Muxlab MonoPro XLR Female Balun Specifications

  • Environment

    Analog Audio: Balanced line level or microphone analog audio
    Digital Audio: Balanced line level digital audio

  • Signal Amplitude

    Analog Audio: Phase polarity sensitive
    Digital Audio: Not polarity sensitive

  • Impedance

    Analog Audio: Output: 600 Ω / Input: 600-20kΩ
    Digital Audio: 110 Ω

  • Signal

    Analog Audio: Professional balanced analog line level or microphone
    Digital Audio: Professional balanced digital line level

  • Maximum Distance

    Analog Audio
    Line level: 5,000' (1.5 km)
    Mic level: 3,000' (914m)

    Digital Audio
    32 kHz: 1,400' (426m)
    44.1 kHz: 1,300' (396m)
    48 kHz: 1,250' (381m)
    96 kHz: unspecified

  • Frequency Response

    DC to 6 MHz

  • Transmission

    Transparent to the user

  • Insertion Loss

    Less than 1 dB/pair from DC to 6 MHz - per balun pair

  • Return Loss

    Less than 15dB from DC to 6 MHz

  • Common Mode Rejection

    Greater than 45 dB

  • UTP

    24 gauge or lower solid copper twisted pair wire Impedance: 100 Ohms at 1 MHz
    Maximum capacitance: 20 pf/foot
    Attenuation: 6.6 dB/1000' (305m) at 1 MHz

  • Connectors

    XLR Female (3 pin)
    Two (2) screw terminals for signal
    One (1) screw terminal for optional shield (ground)

  • Pins

    XLR Pin 1: Shield
    XLR Pin 2: Positive
    XLR Pin 3: Return

    UTP Pin 1: Ground (optional)
    UTP Pin 2: Tip [T]
    UTP Pin 3: Ring [R]

  • Strain Relief

    Threaded and tapered cable grip mechanism

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    Fire retardant plastic. UL94-V0

  • Standards

    AES/EBU 1982, AES-1992, ANSI S.40-1992, IEC-958

  • Regulatory

    FCC, CE

  • Dimensions

    Overall: (Dia x L): 1.87 x 1.0" / 4.75 x 2.54cm Plus 5" / 12.7cm XLR3 Lead

  • Weight

    2.64oz / 74.84g

  • UPC Code

    627699000267

Designed For Use With:

  • Muxlab

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab MonoPro XLR Female Balun

If you're seeking a robust solution for extending your audio channels in a professional setting, the Muxlab MonoPro XLR 500026 Female Connector Balun is an indispensable tool. This high-quality balun is engineered to facilitate the seamless transmission of standard AES analog or digital XLR audio channels through a single Cat5e/6 cable, ensuring reliable performance in various professional audio environments.

Crafted with durability in mind, the MonoPro XLR3-Female Connector Balun features heavy-duty cable strain relief, making it an ideal choice for rigorous applications such as rental or staging events where equipment must withstand constant handling and movement. The inclusion of locking XLR3 connectors adds an extra layer of security, ensuring stable and uninterrupted connections during use.

Designed to support active microphones, which require the ground pin to be connected at both ends, this versatile balun ensures compatibility with a wide range of audio equipment. Whether you're dealing with stereo signals or digital audio, the MonoPro XLR3-Female Connector Balun delivers exceptional performance. It extends stereo signals up to impressive distances of 5000ft / 1.5km and digital audio signals up to 1400ft / 426m, providing flexibility for complex setups.

The Muxlab MonoPro XLR 500026 is not only compatible with Muxlab equipment but also works seamlessly with other professional audio and video brands, making it a versatile addition to any technician's toolkit. When you choose this professional-grade balun, you're investing in a product made by a reputable brand known for its commitment to producing high-quality audio and video solutions. Enhance your audio transmission capabilities with the MonoPro XLR3-Female Connector Balun, a reliable and professional choice for audio professionals everywhere.

Muxlab MonoPro XLR Female Balun Features

  • Line level audio up to distances of 5,000ft / 1.5km via single Cat5e/6
  • Digital audio up to distances of 1,400ft / 426m via single Cat5e/6
  • Cat5e/6 cable terminates inside the balun
  • Locking metal XLR3 female connector with cable strain relief
  • Optional terminal for ground / shield

Key Features

  • Extend your audio reach up to 5,000ft with this XLR3-Female Connector Balun for balanced signals.
  • Enjoy crystal-clear audio with a frequency response from DC to 6 MHz using this balun.
  • This durable balun features a fire-retardant enclosure, ensuring long-lasting performance.
  • Achieve optimal signal strength with impedance matching for professional balanced audio setups.
  • Easy to install with screw terminals; this balun supports both line and microphone levels.
  • Ensure compatibility with AES/EBU standards for pro audio using this Muxlab connector balun.

What's in the box:

  • Muxlab MonoPro XLR3-Female Connector Balun
  • Muxlab Lifetime Warranty
