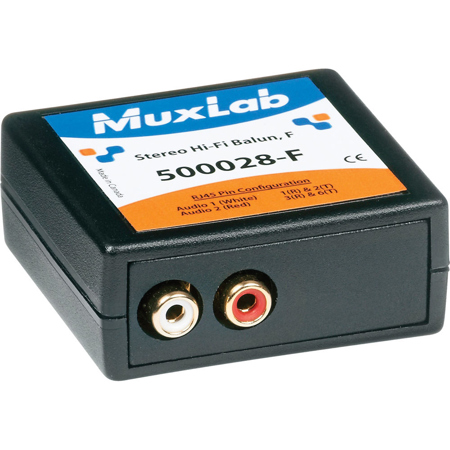

Muxlab Stereo Hi-Fi Balun with Color Coded RCA Female Plugs
See all Muxlab items

Muxlab Stereo Hi-Fi Balun with Color Coded RCA Female Plugs

SKU: ML500028F
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Muxlab : Picture 1 regular
Muxlab Dual Audio-Video Balun
$82.50$49.95
Muxlab Stereo Audio Balun: Picture 1 regular
Muxlab Stereo Audio Balun with Color Coded RCA Male Plug
$48.00
Muxlab Stereo Hi-Fi Balun: Picture 1 regular
Muxlab Stereo Hi-Fi Balun with Color Coded RCA Male Plugs
$55.00
Muxlab Stereo Hi-Fi Balun: Picture 1 regular
Muxlab Stereo Hi-Fi Balun with Color Coded RCA Male Plugs, 2 Pack
$97.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab Stereo Hi-Fi Balun Specifications

  • Environment

    Line level unbalanced analog audio

  • Devices

    DVD players, satellite receivers, MPEG players, laptops, hi-fidelity stereo audio amplifiers, audio switchers, AV monitors, powered sub-woofer, and other line level audio equipment

  • Transmission

    Transparent to the user

  • 3dB Bandwidth

    20 Hz to 20 kHz over the distance range

  • Maximum Input

    1.1 Vpp (unbalanced)

  • Insertion Loss

    Per Balun Pair: Less than 2 dB over the frequency range

  • Common Mode Rejection

    Greater than 60 dB at 1 kHz
    Greater than 40 dB over the frequency and distance range

  • THD

    Maximum 0.007% at 1 kHz over the distance range

  • Audio Impedance

    Source: 100 ohms maximum
    Receiver: 10 kOhms minimum

  • Maximum Distance

    CAT5e/6 UTP: 3,250' (1 km)

  • Pin Configuration

    RJ45:
    Audio 1 (White): Pins 1 (R) & 2 (T) Audio 2 (Red): Pins 3 (R) & 6 (T)

  • Cable

    UTP:
    24 AWG or lower solid copper twisted pair wire Impedance: Maximum 100 Ohms at 1 MHz
    Capacitance: 20 pf/ft
    Attenuation: 6.6 dB/1000' (6.6 dB/304.8 m) at 1 MHz
    Coax: Shielded audio cable

  • Connectors

    2 x RCA-F 6 cable leads
    1x RJ45

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    ABS, fire-retardant plastic

  • Dimensions

    2.40 x 2.25 x 1.00" / 6.10 x 5.72 x 2.54cm
    6" / 15.24cm (Audio Lead)

  • Weight

    3.1oz / 87.88g

  • UPC Code

    627699940280

About Muxlab Stereo Hi-Fi Balun

The Muxlab Stereo Hi-Fi Balun (500028-F) allows an unbalanced line-level Hi-Fi stereo analog audio signal to be transmitted via single Cat5e/6 cable in a point-to-point connection to distances of up to 3250ft / 1km.

The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required.

Used in pairs, the Stereo Hi-Fi Balun can be used with the 500028-F (female RCA connectors) or the 500028-WP-UK/US as a neat wall-plate solution.

Muxlab Stereo Hi-Fi Balun Features

  • Cost-efficient cabling
  • Extend stereo Hi-Fi audio signal distances up to 3250ft / 1km via single Cat5e/6
  • Quicker moves, adds and changes
  • Color coded RCA cable leads (female plugs)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Cost-efficient cabling
  • Quicker moves, adds and changes

What's in the box:

  • Muxlab Stereo Hi-Fi Balun with Color Coded RCA Female Plugs
  • Muxlab Lifetime Warranty
