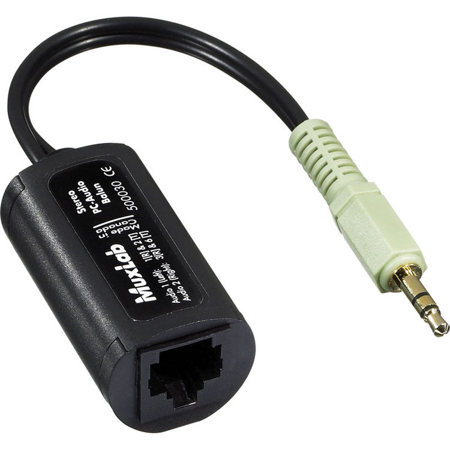

Muxlab Stereo PC-Audio Balun

Line level unbalanced analogue audio

Boardroom systems, classroom training, auditoriums, custom home installations, media servers

PC sound cards, active speakers, DVD, camcorders, audio mixers, audio matrix switchers, audio splitters, audio distribution amplifiers, boosters, satellite receivers, MP3 players, laptops, stereo audio amplifiers, audio switchers, integrated TV monitors and other line level audio equipment. Not suitable for unamplified receivers (i.e. passive headphones) or non-amplified sources (i.e. passive microphones)

Transparent to the user.

(3dB roll-off point) (400 Ohms source & 50 kOhms receiver): Up to 1000 ft (305m): 60Hz - 20 kHz
1000 ft (305m) to 5000 ft (1.5 km): 100Hz - 20 kHz

1.1Vp-p

Less than 1 dB per pair over the frequency range

Greater than 60 dB at 1 kHz

Less than 600 ohms

10 k ohms or greater

Single unit: 4:1 (source: line)

UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (305m) at 1 MHz

5000 ft (1525m)

One (1) 3.5mm stereo plug with 6" cable lead
One (1) RJ45

Audio 1 (Left): pins 1[R] & 2 [T]
Audio 2 (Right): pins 3 [R] & 6 [T]

0 to 55 deg. C / 32 to 131 deg. F

-20 to 85 deg. C / -4 to 185 deg. F

Up to 95%

ABS. Fire retardant plastic

1.87 x 1.0" / 4.75 x 2.54cm Diameter Plus 6" / 15.24cm Audio Leads

1.0oz / 28.35g

627699000304
