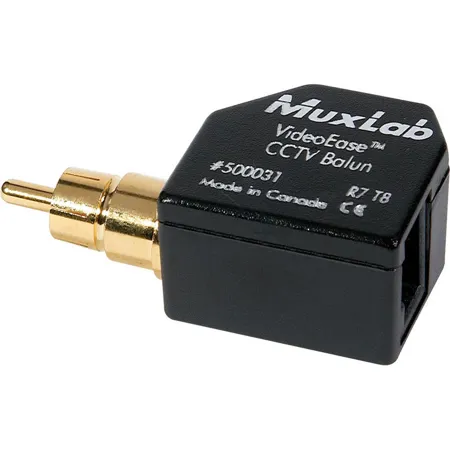

Muxlab CCTV RCA to RJ45 Modular RCA Balun

SKU: ML500031 MFR: 500031
$23.00
$35.00
Save: $12 (34%)
Earn VIP Reward Points

Key Features

  • Extend your CCTV camera range up to 2200ft with this reliable RCA to RJ45 balun.
  • Enjoy clear video signals with our balun's exceptional common mode rejection at 8 MHz.
  • Use with CCTV cameras, DVRs, and monitors for seamless security system integration.
  • Our CCTV balun ensures optimal signal strength and minimal loss for superior video quality.
  • Easy to install, this Muxlab balun is transparent to the user, simplifying setup.
  • Durable ABS fire retardant plastic enclosure ensures long-lasting CCTV cable protection.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.39

2 Year

$3.99

3 Year

$5.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab CCTV RCA to RJ45 Modular RCA Balun Specifications

  • Environment

    Close-Circuit TV (CCTV) equipment for security and surveillance

  • Devices

    CCTV cameras, digital video recorders (DVRs), monitors, switchers, sequencers, multiplexers and other CCTV equipment.

  • Transmission

    Transparent to the user

  • Bandwidth

    Video: DC - 8 MHz

  • Maximum Input

    1.1Vp-p

  • Insertion Loss

    Less than 2 dB per pair over the frequency range from DC - 8 MHz

  • Return Loss

    Greater than 15 dB over the frequency range from DC - 8 MHz

  • Common Mode Rejection

    Greater than 40 dB at 8 MHz

  • Maximum Distance

    Color: Cat 3 - 1200 (365m)
    Cat 5 or higher - 2200' (670m)
    (Shorter distances may be achieved when used with DVRs, typical 1000' (305m) - 1500' (457m) via cat 5)
    B/W: Cat 3 - 1500' (457 m)
    Cat 5/6 - 2500' (762 m)

  • Cable Requirements

    UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
    Maximum capacitance: 20 pf/foot
    Attenuation: 6.6 dB/1000' (305 m) at 1 MHz
    BNC: Impedance: 75 ohms at 1 MHz (RG59/U mini coax)

  • Connectors

    (reverse polarity sensitive)
    RJ45 Pins R7 T8

  • Impedance

    Input: 75 ohms (BNC)
    Output: 100 ohms (RJ45)

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Enclosure

    ABS fire retardant plastic

  • Dimensions

    1.75 x 0.75 x 1" / 4.45 x 1.91 x 2.54cm

  • Weight

    1.5oz / 42.52g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab CCTV RCA to RJ45 Modular RCA Balun

Because your security and surveillance systems demand both flexibility and performance, the CCTV RCA to RJ45 Modular RCA Balun offers a sophisticated solution for transmitting a single composite CCTV video signal through a single unshielded twisted pair (UTP). This high-quality balun chassis, crafted by the reputable brand Muxlab, ensures a durable and reliable connection for your surveillance needs.

The use of this universal balun enables a more streamlined and cost-effective cabling infrastructure by eliminating the need for costly and cumbersome coaxial cables. Instead, it allows CCTV equipment to be seamlessly integrated into any modular outlet, providing a compatible and convenient option for a wide array of devices.

Designed with the professional CCTV installer, end user, and reseller in mind, this balun is not only robust but also offers high-quality construction that stands the test of time. When used in tandem, these baluns facilitate a cleaner, more organized setup and are capable of supporting the distribution of video signals to multiple monitors when paired with Muxlab's CCTV-Audio/Video Hub (500200).

In summary, the CCTV RCA to RJ45 Modular RCA Balun is an essential component for anyone looking to enhance their security system's infrastructure with a reliable, high-quality, and universally compatible video transmission solution.

Muxlab CCTV RCA to RJ45 Modular RCA Balun Features

  • Up to 2500 feet (760m) in B&W via Cat 5 twisted pair
  • Up to 2200 feet (670m) in color via Cat 5 twisted pair
  • RCA to RJ45 modular
  • Compact design
  • Weather resistant

Key Features

  • Extend your CCTV camera range up to 2200ft with this reliable RCA to RJ45 balun.
  • Enjoy clear video signals with our balun's exceptional common mode rejection at 8 MHz.
  • Use with CCTV cameras, DVRs, and monitors for seamless security system integration.
  • Our CCTV balun ensures optimal signal strength and minimal loss for superior video quality.
  • Easy to install, this Muxlab balun is transparent to the user, simplifying setup.
  • Durable ABS fire retardant plastic enclosure ensures long-lasting CCTV cable protection.

What's in the box:

  • Muxlab CCTV Modular RCA Balun
  • Muxlab Lifetime Warranty
