Muxlab Quad Audio Wall Plate Balun, United States
See all Muxlab items

Muxlab Quad Audio Wall Plate Balun, United States

SKU: ML500033WPUS

This item is no longer available.

Recommended Alternatives

Muxlab : Picture 1 regular
Muxlab Dual Audio-Video Balun
$82.50$49.95
Muxlab : Picture 1 regular
Muxlab S-Video/Audio Balun with 4-Pin Mini DIN and 2x RCA Connectors
$80.00$52.00
Muxlab : Picture 1 regular
Muxlab S-Video/Audio ProAV Balun Transmitter
$110.00$71.50
Muxlab : Picture 1 regular
Muxlab S-Video/Audio Ground Loop Isolation (GLI) Balun
$90.00$58.50
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab Wall Plate Balun Specifications

  • Environment

    Unbalanced line-level analog audio

  • Devices

    DVD players, audio receivers, audio amplifiers and audio mixers, audio matrix switchers and other unbalanced line-level audio equipment

  • Transmission

    Transparent to the user

  • Applications

    Custom commercial and home audio systems
    Intercom systems
    Rental and Staging systems
    Audio-video conferencing systems

  • Bandwidth

    20Hz to 20kHz

  • Peripherals' Impedance

    Source: 100Ohms Max
    Receiver: 10kOhms min.

  • Insertion Loss

    Less than 2 dB per pair over the frequency range

  • Common Mode Rejection Ratio

    Greater than 60dB at 1kHz

  • THD

    Less then 0.007% at 1kHz

  • Maximum Input Level

    1.1 Vp-p

  • Impedance Transformation Ratio

    Single unit: 4:1 (source: line)

  • Cable: Cat 5E UTP/STP

    24 AWG or lower solid copper twisted pair wire
    Impedance: 100Ohms at 1 MHz
    Maximum capacitance: 20 pf/ft.
    Attenuation: 6.6 dB/1000 ' at 1 MHz

  • Unbalanced In/ Out Cable

    Shielded, coaxial

  • Ground Loop Isolation

    Range of +/-50VDC

  • Connectors

    4x RCA receptacles for audio
    1x RJ45 jack

  • Pin Configuration

    Audio 1: Pins 7(R) & 8(T)
    Audio 2: Pins 3(R) & 6(T)
    Audio 3: Pins 4(R) & 5(T)
    Audio 4: Pins 1(R) & 2(T)

  • Max. Distance: Cat 5E/6 UTP/STP

    3250' / 990.61m

  • Enclosure

    Fire retardant plastic

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Dimensions

    4.1 x 1.8 x 1.44" / 104.14 x 45.72 x 36.58mm
    Choose 1.6" (40 mm) deep back box to allow for Cat 5E/6 wiring connection

  • Weight

    4.1oz / 116.23g

  • UPC Code

    627699920336

About Muxlab Wall Plate Balun

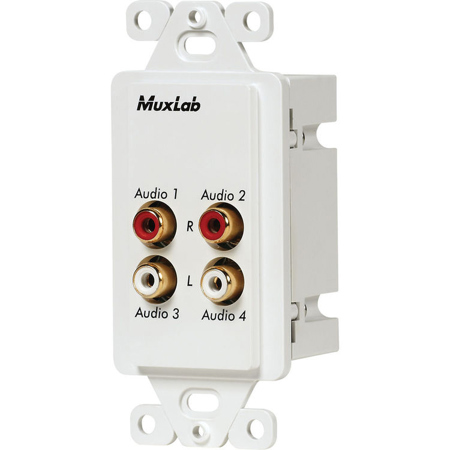

The Muxlab Quad Audio Wall-Plate Balun (500028-WP-US) allows up to four (4) individual RCA or two (2) stereo RCA line-level audio signals to be transmitted via single Cat5e/6 cable in a point-to-point connection to distances of up to 3250' / 1km. The Quad Audio Balun is compatible with the Muxlab 500033 (where a wall plate is not required) and also works in conjunction with other Muxlab stereo audio baluns such as the 500019 (single RCA) or the 500028 (dual RCA). Compatible with decora face plates.
