35% Off

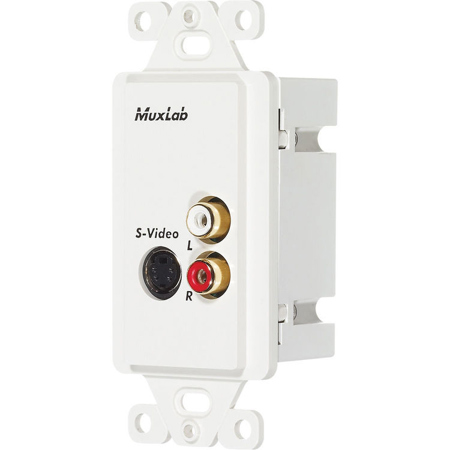

Muxlab S-Video/Hi-Fi Wall Balun, United States

SKU: ML500038WPUS MFR: 500038-WP-US
$65.00
$100.00
Save: $35 (35%)
Earn VIP Reward Points

Key Features

  • Extend your S-Video and Hi-Fi audio signals up to 1000ft with this reliable balun.
  • Achieve crystal-clear audio and video with our low-loss S-Video audio balun solution.
  • Use with DVD players, cameras, and more; this S-Video balun offers broad compatibility.
  • Simplify your setup with easy RJ45 connectivity for S-Video and stereo audio devices.
  • This compact S-Video balun supports high bandwidth for superior audio-video fidelity.
  • Enjoy peace of mind with our lifetime warranty on this durable S-Video & Hi-Fi balun.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$11.99

3 Year

$16.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab S-Video/Hi-Fi Wall Balun, United States Specifications

  • Environment

    S-Video equipment

  • Devices

    DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks, projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, S-Video splitters, S-Video converters and other S-Video equipment

  • Transmission

    Transparent to the user

  • Bandwidth

    S-Video: DC to 6 MHz
    Audio : 20 Hz to 20 KHz

  • Impedance

    S-Video: 75Ohms
    Audio : 600Ohms minimum

  • Maximum Input

    S-Video: 1.1 Vpp
    Audio : 1.1 Vpp

  • Insertion Loss

    S-Video: Less than 2 dB per pair over the frequency range from DC to 6 MHz
    Audio : Less than 2 dB per pair over the frequency range

  • Return Loss

    S-Video: Better than 15 dB over the frequency range

  • Common Mode Rejection

    S-Video: Greater than 40 dB over the frequency range
    Audio : Greater than 60 dB at 1 KHz / Greater than 40 dB over the frequency and distance range

  • Max. Distance via Cat 5 Twisted Pair

    S-Video: 1000' (305 m)
    Audio : 3250' (990 m)

  • RJ45 Pin Configuration

    S-Video Luma: Pins 7[R] &8 [T]
    S-Video Chroma: Pins 4[R] & 5 [T]
    (Reverse Polarity Sensitive)
    Audio 1: Pins 1[R] & 2 [T]
    Audio 2: Pins 3 [R] & 6 [T]

  • Cable: Cat 5E/6 UTP/STP

    24 AWG or lower solid copper twisted pair wire
    Impedance: 100Ohms at 1 MHz
    Maximum Capacitance: 20 pf/foot
    Attenuation: 6.6 dB/1000' at 1 MHz

  • Connectors

    1x 4-pin Mini DIN jack for S-Video
    2x RCA audio jacks for stereo audio
    1x RJ45 for Cat 5E/6

  • Enclosure

    ABS fire retardant plastic, Finish glossy

  • Compliance

    FCC, CE, Decora faceplate

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Dimensions

    4.1 x 1.8 x 1.44" / 104.14 x 45.72 x 36.58mm
    Choose 1.6" (40 mm) deep back box to allow for Cat 5E/6 wiring connection

  • Weight

    4.1oz / 116.23g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab S-Video/Hi-Fi Wall Balun, United States

Enhance your audio and video experience with the high-quality S-Video/Hi-Fi Wall Balun. This reliable and durable device allows a single S-Video signal to be transmitted via unshielded twisted pair (UTP) cable for an impressive distance of up to 1000 feet (305m) in a point-to-point connection.

Designed for high fidelity applications, the S-Video/Hi-Fi Wall Balun boasts a full audio bandwidth response, ensuring clear and consistent signal transmission. This makes it an ideal choice for applications that require high-quality audio and video signals, such as classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks.

The S-Video/Hi-Fi Wall Balun is also decora compatible, making it easy to install in a variety of settings. It works seamlessly in pairs or in conjunction with the 500038 or 500017 models, offering you flexibility and convenience.

Moreover, its universal compatibility means it can be used with a wide range of devices, including CCTV cameras, DVRs, and other security systems. This feature allows it to convert a CCTV RCA signal to an RJ45 Ethernet signal for use in a network, making it a versatile addition to your electronic setup.

In summary, the S-Video/Hi-Fi Wall Balun is a reliable, high-quality solution for transmitting audio and video signals over long distances, offering compatibility with a wide range of devices and easy installation.

Muxlab S-Video/Hi-Fi Wall Balun, United States Features

  • Up to 1000' (305m) via Cat5e/6 UTP
  • 20 Hz to 20 kHz audio bandwidth
  • Decora compatible
  • Lifetime warranty

Key Features

  • Extend your S-Video and Hi-Fi audio signals up to 1000ft with this reliable balun.
  • Achieve crystal-clear audio and video with our low-loss S-Video audio balun solution.
  • Use with DVD players, cameras, and more; this S-Video balun offers broad compatibility.
  • Simplify your setup with easy RJ45 connectivity for S-Video and stereo audio devices.
  • This compact S-Video balun supports high bandwidth for superior audio-video fidelity.
  • Enjoy peace of mind with our lifetime warranty on this durable S-Video & Hi-Fi balun.

What's in the box:

  • Muxlab S-Video/Hi-Fi Wall Balun
  • Muxlab Lifetime Warranty
