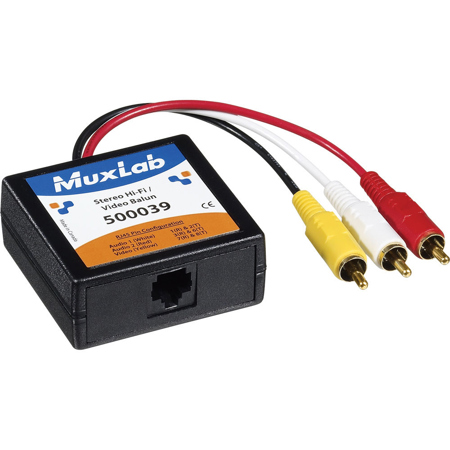

Muxlab Stereo Hi-Fi/Video Balun
See all Muxlab items

Muxlab Stereo Hi-Fi/Video Balun

SKU: ML500039
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Muxlab : Picture 1 regular
Muxlab Dual Audio-Video Balun
$82.50$49.95
Muxlab Stereo Audio Balun: Picture 1 regular
Muxlab Stereo Audio Balun with Color Coded RCA Male Plug
$48.00
Muxlab Stereo Hi-Fi Balun: Picture 1 regular
Muxlab Stereo Hi-Fi Balun with Color Coded RCA Male Plugs
$55.00
Muxlab Stereo Hi-Fi Balun: Picture 1 regular
Muxlab Stereo Hi-Fi Balun with Color Coded RCA Male Plugs, 2 Pack
$97.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab Stereo Hi-Fi/Video Balun Specifications

  • Environment

    Composite video (NTSC, PAL, SECAM) equipment

  • Devices

    DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks, monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters and other composite video equipment

  • Transmission

    Transparent to the user

  • Bandwidth

    Composite Video: DC to 6 MHz
    Audio: 20Hz to 20KHz over the distance range

  • Impedance

    Composite Video: 75 Ohms
    Audio: 600 Ohms min.

  • Max. Input

    Composite Video: 1.1Vp-p
    Audio: 1.1Vp-p

  • Insertion Loss

    Composite Video: Less than 2 dB per pair over the frequency range from DC to 6 MHz
    Audio: Less than 2 dB per pair over the frequency range

  • Return Loss

    Composite Video: Better than 15 dB over the frequency range

  • Common Mode Rejection

    Composite Video: Greater than 40 dB over the frequency range

  • Max. Distance Cat5E/6 UTP

    Composite Video: 2200' / 670.57m
    Audio: 3250' / 990.61m

  • Pin Configuration (RJ45)

    Composite Video
    Video (Yellow): Pins 7[R] &8 [T], Reverse Polarity Sensitive

    Audio
    Audio 1 (White): Pins 1[R] & 2 [T]
    Audio 2 (Red): Pins 3 [R] & 6 [T]

  • Cable: UTP

    24AWG or lower solid copper twisted pair wire
    Impedance: 100 ohms at 1 MHz
    Maximum capacitance: 20 pf/foot.
    Attenuation: 6.6 dB/1000 ft. at 1 MHz

  • Connectors

    1x RCA-M for video (yellow)
    2x RCA-M for stereo audio (red, white)
    1x RJ45 for Cat5E/6

  • Enclosure

    Fire retardant plastic

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Dimensions

    2.40 x 2.25 x 1.00" / 6.10 x 5.72 x 2.54cm plus 6" (15.24cm) cable leads for video and stereo audio

  • Weight

    3.1oz / 87.88g

  • UPC Code

    627699000397

About Muxlab Stereo Hi-Fi/Video Balun

The Stereo Hi-Fi/Video Balun allows a single composite video signal to be transmitted via unshielded twisted pair (UTP) cable up to 2200' (670m) in a point-to-point connection. The Stereo Hi-Fi/Video Balun features full audio bandwidth response for high fidelity applications and features built-in color-coded cable leads for ease of installation. The Stereo Hi-Fi/Video Balun also works in conjunction with MuXLab' s Audio-Video Distribution Hub (p/n 500200) to allow composite video programming to be distributed via UTP. Some of the applications are; classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing and video kiosks.

Muxlab Stereo Hi-Fi/Video Balun Features

  • Up to 2200' (670m) via Cat5E/6 UTP
  • 20 Hz to 20 kHz audio bandwidth
  • Built-in color-coded cable leads
  • Compact design for neater wiring
  • Lifetime warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Lifetime warranty

What's in the box:

  • Muxlab Stereo Hi-Fi/Video Balun
  • Muxlab Lifetime Warranty
