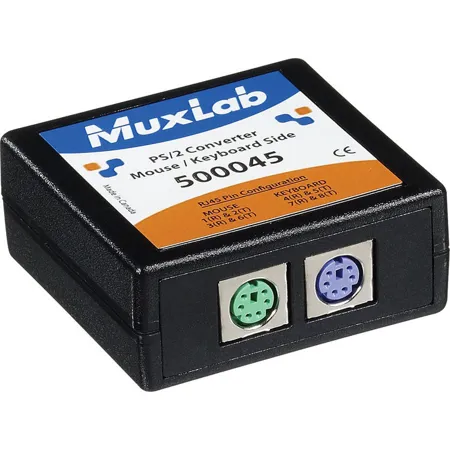

Muxlab PS/2 Converter, PS/2-Receptacle, Keyboard/Mouse Side
See all Muxlab items
34% Off

Muxlab PS/2 Converter, PS/2-Receptacle, Keyboard/Mouse Side

SKU: ML500045 MFR: 500045
Be the first to review this itemAsk a Question
$23.00
$35.00
Save: $12 (34%)
Earn VIP Reward Points

Key Features

  • Extend your KVM setup with this PS/2 converter, reaching up to 350 feet easily.
  • Enjoy transparent data transmission; this PS/2 adapter supports keyboard and mouse signals.
  • This PS/2 KVM extender supports PCs, laptops, and servers with PS/2 keyboard/mouse ports.
  • Connect a USB keyboard/mouse to a PS/2 port using this reliable PS/2 keyboard converter.
  • Built for durability, the Muxlab PS/2 converter features fire-retardant ABS plastic enclosure.
  • Ensure seamless connectivity with this PS/2 adapter, compliant with FCC and CE standards.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$3.99

3 Year

$4.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab PS/2 Converter Specifications

  • Environment

    PS/2 Keyboard and Mouse

  • Devices

    PC, laptops, servers, HDX hard disk players, keyboards and mice supporting PS/2
    A USB keyboard/mouse may be connected to a PS/2 port via a USB-to-PS/2 adapter

  • Transmission

    Transparent to the user

  • Bandwidth

    DC to 1 MHz

  • Signals

    Mouse data, mouse clock, keyboard data, keyboard clock, Vcc, ground

  • Connectors

    Dual 6-pin mini DIN female for keyboard/mouse side
    RJ45 for unshielded twisted pair

  • Color code

    Mouse: Green
    Keyboard: Purple

  • Maximum Distance

    350' / 106.68m (via Cat5E/6 Twisted Pair)

  • RJ45 Pin Configuration

    Mouse: Pin 1 (R), Pin 2 (T), Pin 3 (R), Pin 6 (T)
    Keyboard: Pin 4 (R), Pin 5 (T), Pin 7 (R), Pin 8 (T)
    (Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight through wiring)

  • Cable

    Category 5 or better twisted pair cable

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    ABS fire retardant plastic

  • Compliance

    Regulatory: FCC, CE (pending)
    Flammability: 94V0

  • Dimensions

    2.4 x 2.25 x 1.0" / 60.96 x 57.15 x 25.40mm

  • Weight

    1.6oz / 45.36g

  • UPC Code

    627699000458

About Muxlab PS/2 Converter

The PS/2 Converter allows a standard PS/2 keyboard and mouse to be connected to a PC up to 350 ft via Cat5 unshielded twisted pair cable in a point-to-point configuration. There are two (2) models; 500045 and 500046. Both models work in pairs or in conjunction with each other for maximum cabling flexibility. The 500045 is designed to connect easily to a PS/2 keyboard and mouse. The 500046 is designed to connect easily to the PC.

• Up to 350 ft via Cat5 UTP
• Color coded cable leads
• Compact design

Applications
Classroom projector systems, digital signage, boardroom systems, collaborative PC systems and medical information systems.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your KVM setup with this PS/2 converter, reaching up to 350 feet easily.
  • Enjoy transparent data transmission; this PS/2 adapter supports keyboard and mouse signals.
  • This PS/2 KVM extender supports PCs, laptops, and servers with PS/2 keyboard/mouse ports.
  • Connect a USB keyboard/mouse to a PS/2 port using this reliable PS/2 keyboard converter.
  • Built for durability, the Muxlab PS/2 converter features fire-retardant ABS plastic enclosure.
  • Ensure seamless connectivity with this PS/2 adapter, compliant with FCC and CE standards.

What's in the box:

  • Muxlab PS/2 Converter
  • MuxLab Lifetime Warranty
