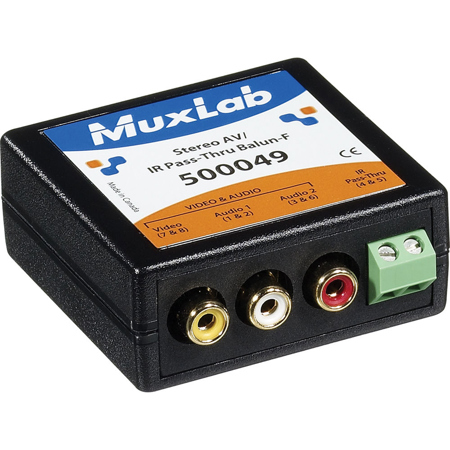

Muxlab VideoEase Stereo AV/IR Pass-Thru Balun, Female
See all Muxlab items

Muxlab VideoEase Stereo AV/IR Pass-Thru Balun, Female

SKU: ML500049 MFR: 500049
Be the first to review this itemAsk a Question
$59.00
Earn VIP Reward Points

Key Features

  • Extend your surveillance system reach with this AV/IR pass-thru balun, up to 2200ft via Cat5e/6.
  • Enjoy crystal-clear surveillance video quality with composite video bandwidth up to 6 MHz.
  • Easily integrate DVD players, cameras, and more into your surveillance setup with this balun.
  • Achieve seamless IR remote control pass-through for convenient device management.
  • Ensure reliable surveillance with durable balun supporting 24-gauge twisted pair wire.
  • Simplify your surveillance installation using standard RCA-F and RJ45 connectors.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$10.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab AV/IR Pass-Thru Balun Specifications

  • Environment

    Composite video (NTSC, PAL, SECAM)
    Line level analog audio
    IR remote

  • Devices

    DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks, monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters and other composite video equipment

  • Transmission

    Transparent to the user

  • Bandwidth

    Composite Video: DC to 6 MHz
    Analog audio: 20 Hz to 20 KHz

  • Impedance

    Composite Video: 75Ohms
    Audio: 600Ohms min

  • Maximum Input

    Composite Video & Audio: 1.1Vp-p

  • Insertion Loss

    Composite Video: Less than 2dB per pair over the frequency range from DC to 6 MHz
    Audio: Less than 2dB per pair over the frequency range

  • Return Loss

    Composite Video: Better than 15dB over the frequency range

  • Common Mode Rejection

    Composite Video: Greater than 40dB over the frequency range

  • Maximum Distance

    Composite Video: Cat5e/6 UTP: 2200' / 670.57m
    Audio: Cat5e/6 UTP: 3250' / 990.61m

  • Pin Configuration (RJ45)

    Composite Video: Video (Yellow): pins 7 [R] & 8 [T], IR Pass-Thru: pins 4 [R] & 5 [T]
    Audio 1 (White): pins 1 [R] & 2 [T]
    Audio 2 (Red): pins 3 [R] & 6 [T]
    (Reverse Polarity Sensitive)

  • Cable

    UTP: 24 gauge or lower solid copper twisted pair wire
    Impedance: 100Ohms at 1 MHz
    Maximum capacitance: 20 pf/foot
    Attenuation: 6.6dB/1000' / 304.80m at 1 MHz

  • Connectors

    3 RCA-F connectors: Video (yellow) & stereo audio (red, white)
    1 two-pole terminal block for IR emitter pass-through
    1 RJ45 for Cat5

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    Fire retardant plastic

  • Dimensions

    2.40 x 2.25 x 1.00" / 60.96 x 57.15 x 25.40mm

  • Weight

    3.1oz / 87.88g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab AV/IR Pass-Thru Balun

Take your audio and video transmission to the next level with the VideoEase Stereo AV/IR Pass-Thru Balun. This innovative device allows for the transmission of one composite video, one stereo audio, and one IR emitter signal via a single Cat5E/6 cable, creating a streamlined point-to-point connection.

Designed with high fidelity applications in mind, the Stereo AV/IR Pass-Thru Balun delivers full audio bandwidth response, ensuring high-quality sound in every use. Its built-in color-coded cable leads simplify installation, making this user-friendly device a reliable choice for both professionals and novices alike.

This durable balun is not just about audio and video; it also supports third-party IR Remote Control equipment. This feature allows the IR Emitter to connect to the IR control module using the same Cat5E/6 cable as video and audio, resulting in more cost-efficient cabling.

Whether you're looking to enhance classroom video distribution, upgrade commercial and home audio/video systems, improve hospital video training, or optimize video conferencing and video kiosks, the VideoEase Stereo AV/IR Pass-Thru Balun is your universal solution. Crafted by Muxlab, a reputable brand in the field of audio and video equipment, you can trust in the quality and reliability of this product.

Muxlab AV/IR Pass-Thru Balun Features

  • Video up to 2,200 feet (670m) via Cat 5E/6
  • Audio up to 3,250 ft (990m) via Cat5E/6
  • 20 Hz to 20 kHz audio bandwidth
  • IR 2-wire emitter pass-thru on fourth twisted pair
  • Built-in color-coded cable leads

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your surveillance system reach with this AV/IR pass-thru balun, up to 2200ft via Cat5e/6.
  • Enjoy crystal-clear surveillance video quality with composite video bandwidth up to 6 MHz.
  • Easily integrate DVD players, cameras, and more into your surveillance setup with this balun.
  • Achieve seamless IR remote control pass-through for convenient device management.
  • Ensure reliable surveillance with durable balun supporting 24-gauge twisted pair wire.
  • Simplify your surveillance installation using standard RCA-F and RJ45 connectors.

What's in the box:

  • Muxlab VideoEase Stereo AV/IR Pass-Thru Balun
  • MuxLab Lifetime Warranty
