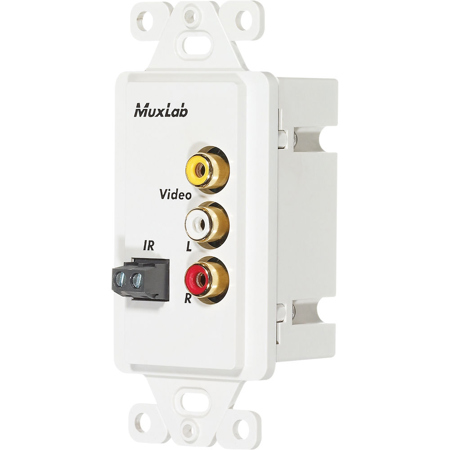

Muxlab Stereo AV/IR Pass-Thru Wall Balun, United States

SKU: ML500049WPUS MFR: 500049-WP-US
$71.50
$110.00
Save: $38.5 (35%)
Earn VIP Reward Points

Key Features

  • Extend your AV signals up to 2200ft with this balun, using Cat 5E/6 cable for reliable video transmission.
  • Enjoy crystal-clear audio and video with our stereo AV balun, perfect for home or business surveillance systems.
  • This Muxlab balun supports IR pass-through, giving you remote control over your devices at a distance.
  • Easily connect DVD players, cameras, and more with this versatile RCA to RJ45 balun adapter for AV signals.
  • Our durable balun ensures minimal signal loss, providing high-quality audio and video over long distances.
  • Install this balun in any environment; its wide temperature range makes it ideal for diverse setups.
See More Product Details
Special Order?Estimated to Ship: 09/13/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.49

2 Year

$12.99

3 Year

$18.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Wall Balun Specifications

  • Environment

    Composite video (NTSC, PAL, SECAM)
    Line level analog audio
    IR remote

  • Devices

    DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks, monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters and other composite video equipment

  • Transmission

    Transparent to the user

  • Bandwidth

    Composite Video: DC to 6 MHz
    Analog audio: 20 Hz to 20 KHz over the distance range

  • Impedance

    Composite Video: 75Ohms
    Audio: 600Ohms min

  • Maximum Input

    Composite Video & Audio: 1.1Vp-p

  • Insertion Loss

    Composite Video: Less than 2dB per pair over the frequency range from DC to 6 MHz
    Audio: Less than 2dB per pair over the frequency range

  • Return Loss

    Composite Video: Better than 15dB over the frequency range

  • Common Mode Rejection Ratio

    Composite Video: Greater than 40dB over the frequency range

  • Maximum Distance

    Composite Video: 2200' / 670.57m
    Audio: 3250' / 990.61m
    ( via Cat 5E/6 UTP/STP Cable)

  • Pin Configuration (RJ45)

    Composite Video: Video: pins 7 [R] & 8 [T], IR Pass-Thru: pins 4 [R] & 5 [T], (Reverse Polarity Sensitive)
    Audio 1: pins 1 [R] & 2 [T]
    Audio 2: pins 3 [R] & 6 [T]

  • Cable

    Cat 5E/6 UTP/STP: 24 gauge or lower solid copper twisted pair wire
    Impedance: 100Ohms at 1 MHz
    Maximum capacitance: 20 pf/foot
    Attenuation: 6.6dB/1000' / 304.80m at 1 MHz

  • Connectors

    3 RCA-F connectors: Video (yellow) & stereo audio (red, white)
    One 2-pole terminal block for IR emitter pass-through
    1 RJ45 for Cat 5E/6

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    ABS fire retardant plastic, Color white, Finish glossy

  • Compliance

    FCC, CE, Decora faceplate

  • Dimensions

    4.1 x 1.8 x 1.44" / 104.14 x 45.72 x 36.58mm
    Choose 1.6" / 40.64mm deep back box to allow for Cat 5E/6 wiring connection

  • Weight

    4.1oz / 116.23g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Wall Balun

The Stereo AV/IR Pass-Thru Wall Balun allows one (1) composite video, one (1) stereo audio and one (1) IR emitter signal to be transmitted via a single Cat5e/6 cable in a point-to-point connection. The Stereo AV/IR Pass-Thru Wall Balun features full audio bandwidth response for high fidelity applications and is decora compatible. The Stereo AV/IR Pass-Thru Balun works in pairs or in conjunction with the 500048 or 500049. Some of the applications are; classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing and video kiosks.

Muxlab Wall Balun Features

  • Video up to 2,200 feet (670m) via Cat5e/6
  • Audio up to 3,250 ft (990m) via Cat5e/6
  • 20 Hz to 20 kHz audio bandwidth
  • IR 2-wire emitter pass-thru on fourth twisted pair
  • Compatible with Decora face plates

Key Features

  • Extend your AV signals up to 2200ft with this balun, using Cat 5E/6 cable for reliable video transmission.
  • Enjoy crystal-clear audio and video with our stereo AV balun, perfect for home or business surveillance systems.
  • This Muxlab balun supports IR pass-through, giving you remote control over your devices at a distance.
  • Easily connect DVD players, cameras, and more with this versatile RCA to RJ45 balun adapter for AV signals.
  • Our durable balun ensures minimal signal loss, providing high-quality audio and video over long distances.
  • Install this balun in any environment; its wide temperature range makes it ideal for diverse setups.

What's in the box:

  • Muxlab Stereo AV/IR Pass-Thru Wall Balun
  • MuxLab Lifetime Warranty
