38% Off

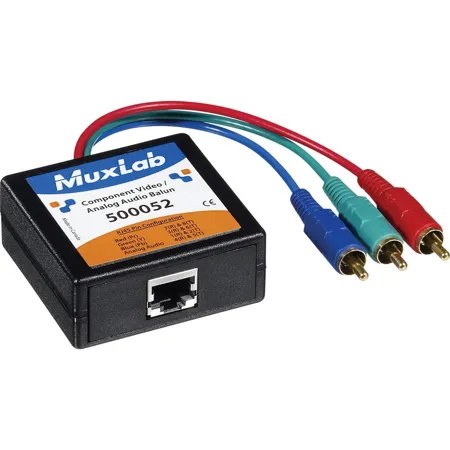

Muxlab Component Video/Analog Audio Balun, Male

SKU: ML500052 MFR: 500052
$62.50
$100.00
Save: $37.5 (38%)
Earn VIP Reward Points

Key Features

  • Extend your surveillance system reach with this component video balun up to 1000 feet!
  • Enjoy clear video signal for your security cameras using high-quality video balun tech.
  • This audio balun supports DVD players, satellite receivers, and home theater equipment.
  • Achieve optimal video and audio transmission with our durable and reliable balun chassis.
  • Easy to install: Connect your surveillance cameras quickly with RCA to RJ45 balun adapter.
  • Weather-resistant balun ensures consistent performance, perfect for any surveillance setup.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.49

2 Year

$10.99

3 Year

$16.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Component Video/Analog Audio Balun, Male Specifications

  • Environment

    Component video (YPbPr)
    RGB video (sync on green). 480i/p, 720p, 1080i/p
    Linelevel analog audio

  • Devices

    DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theater and other equipment supporting HDTV component video and/or analog audio

  • Transmission

    Transparent to the user

  • Bandwidth

    Video: 60 MHz, 3dB roll off
    Analog audio: 20 Hz to 20 KHz

  • Maximum Input

    1.1 Vpp

  • Insertion Loss Per Pair

    Video: 0.1dB for 0.1 MHz. Gradually increasing to 3.0dB over the frequency range
    Audio: Less than 2dB per pair over the frequency range

  • Return Loss

    Video: Greater than 15dB over the frequency range

  • Common Mode Rejection

    Video: -55dB maximum
    Audio: Greater than 60dB at 1 KHz, Greater than 40dB over the frequency and distance range

  • Max. Distance - Cat 5E/6 UTP/STP

    480i/p: 1000' / 304.80m
    720p and 1080I: 500' / 152.40m
    Analog Audio: 3250' / 990.61m

  • Cable - Cat5e/6 UTP/STP

    24 gauge or lower solid copper twisted pair wire
    Impedance: 100Ohms at 1 MHz
    Maximum capacitance: 20 pf/foot
    Attenuation: 6.6dB/1000' (304.80m) at 1 MHz

  • Cable - Coax

    Impedance: 75Ohms at 1 MHz

  • Connectors

    3 RCA-M connectors, Green (Y), Blue (Pb) , Red (Pr)
    1 RCA-F connector for analog audio
    RJ45S for twisted pair

  • Pin Configuration

    Red (Pr): Pins 7 [R] & 8 [T]
    Green (Y): Pins 3 [R] & 6 [T]
    Blue (Pb): Pins 1 [R] & 2 [T]
    Analog Audio: Pins 4 [R] & 5 [T]
    (Reverse polarity sensitive)

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95%

  • Enclosure

    ABS fire retardant plastic

  • Dimensions

    2.40 x 2.25 x 1.0" / 60.96 x 57.15 x 25.40mm
    Plus 6" / 152.40mm cable lead for video

  • Weight

    2.9oz / 82.21g

  • UPC Code

    627699000526

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Component Video/Analog Audio Balun, Male

Why settle for less when you can enhance your audio-visual experience with the Component Video/Analog Audio Balun, Male (500052, 500053) This durable and high-quality balun is designed to streamline your cabling needs by allowing the transmission of one component video (YPbPr or RGB) signal alongside one analog audio signal through a single Category 5E/6 twisted pair cable. Ideal for both commercial and residential settings, this balun is a reliable solution for high-definition (HDTV) video applications.

The Component Video/Analog Audio Balun is universally compatible, supporting a range of video formats including 480i/p, 720p, and 1080i/p, ensuring that it meets the diverse needs of various devices and setups. With the capability to support 480i/p video format for distances up to 1,000 ft (305m) and 720p/1080i/p video formats up to 500 ft (152m) via Cat5E/6, this balun offers flexibility and convenience for your installation requirements.

Crafted with molded color-coded RCA cable leads, this balun simplifies connections and reduces the chance of errors during setup. The inclusion of analog audio on the fourth twisted pair further enhances its functionality, making it a comprehensive audio-visual solution. The modular shielded RJ45 connector ensures a secure and interference-free connection, contributing to the balun's reliable performance.

Choosing the Component Video/Analog Audio Balun, Male, means opting for a more cost-efficient cabling approach, which not only saves you money but also results in quicker moves, adds, and changes. The neat wiring arrangement facilitated by this balun contributes to a more organized and professional installation.

In summary, the Component Video/Analog Audio Balun is an essential tool for anyone looking to transmit high-quality audio and video signals over Ethernet networks. Its compatibility with a wide range of devices and its ability to deliver clear and reliable performance make it a top choice for those seeking a versatile and dependable audio-visual transmission solution.

Muxlab Component Video/Analog Audio Balun, Male Features

  • Transmits component video and analog audio via single Cat5E/6 cable
  • Supports multiple HDTV formats: 480i/p, 720p, 1080i/p
  • Long-range transmission up to 1,000 ft for 480i/p, 500 ft for 720p/1080i/p
  • Color-coded RCA cable leads for easy setup
  • Integrated analog audio support on fourth twisted pair
  • Equipped with modular shielded RJ45 connector for secure connections

Key Features

  • Extend your surveillance system reach with this component video balun up to 1000 feet!
  • Enjoy clear video signal for your security cameras using high-quality video balun tech.
  • This audio balun supports DVD players, satellite receivers, and home theater equipment.
  • Achieve optimal video and audio transmission with our durable and reliable balun chassis.
  • Easy to install: Connect your surveillance cameras quickly with RCA to RJ45 balun adapter.
  • Weather-resistant balun ensures consistent performance, perfect for any surveillance setup.

What's in the box:

  • Muxlab Component Video/Analog Audio Balun
  • MuxLab Lifetime Warranty
