42% Off

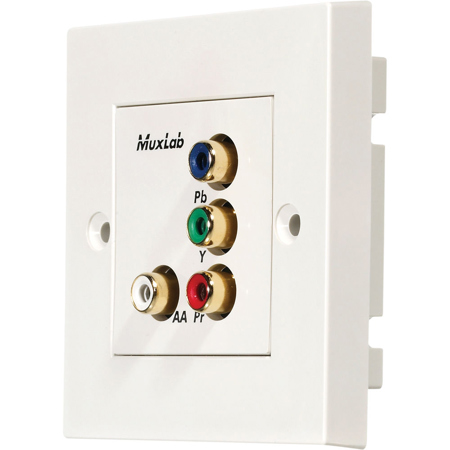

Muxlab Component Video/Analog Audio Wall Balun, United Kingdom

SKU: ML500053WPUK MFR: 500053-WP-UK
$75.95
$130.00
Save: $54.05 (42%)
Earn VIP Reward Points

Key Features

  • Extend your audio/video reach with this Component Video Wall Balun over Cat 5E/6 cable.
  • Enjoy crystal-clear video up to 1000ft (480i/p) using our high-performance video balun.
  • Easily connect DVD players & satellite receivers with this user-friendly video balun.
  • This durable balun supports resolutions up to 1080i/p for high-definition video quality.
  • Minimize signal loss and maximize audio fidelity with our superior audio balun design.
  • Simplify your setup with this Balun, compatible with standard Cat 5E/6 UTP/STP cabling.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$19.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Component Video/Analog Audio Wall Balun, United Kingdom Specifications

  • Environment

    Component Video (YPbPr), RGB Video (sync on green)
    480i/p, 720p, 1080i/p
    Line level analog audio

  • Devices

    DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theatre and other equipment supporting HDTV component video and/or analog audio

  • Transmission

    Transparent to the user

  • Bandwidth

    Video: 60 MHz, 3dB roll off
    Analog audio: 20 Hz to 20 kHz

  • Maximum Input

    1.1 Vp-p

  • Insertion Loss per Pair (Video)

    0.1dB for 0.1 MHz
    Gradually increasing to 3.0dB over the frequency range

  • Insertion Loss per Pair (Audio)

    Less than 2dB per pair over the frequency range

  • Return Loss (Video)

    Greater than 15dB over the frequency range

  • Common Mode Rejection Ratio (Video)

    -55dB maximum

  • Common Mode Rejection Ratio (Audio)

    Greater than 60dB at 1 kHz
    Greater than 40dB over the frequency and distance range

  • Max. Distance Color

    480i/p: 1000' / 304.80m
    720p and 1080i: 500' / 152.40m
    Analog Audio: 3250' / 990.61m
    (via Cat 5E/6 UTP/STP Cable)

  • Cable - Cat 5E/6 UTP/STP

    24 AWG or lower solid copper twisted pair wire
    Impedance: 100Ohms at 1 MHz
    Maximum capacitance: 20 pf/ft
    Attenuation: 6.6dB/1000' (304.80m) at 1 MHz

  • Cable - Coax

    Impedance: 75Ohms at 1 MHz

  • Connectors

    Three RCA-F connectors: Green (Y), Blue (Pb), Red (Pr)
    One RCA-F connector for analog audio
    RJ45S for twisted pair

  • Pin Configuration

    Red (Pr): Pins 7(R) & 8(T)
    Green (Y): Pins 3(R) & 6(T)
    Blue (Pb):Pins 1(R) & 2(T)
    Analog Audio: Pins 4(R) & 5(T)
    (Reverse polarity sensitive)

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    ABS fire retardant plastic, Color white, Finish glossy

  • Regulatory

    FCC, CE, RoHS, European Standard for 86mm / 3.39" faceplate

  • Dimensions

    86 x 86 x 36mm / 3.39 x 3.39 x 1.42"
    Choose 40mm / 1.57" deep back box to allow for Cat 5E/6 wiring connection

  • Weight

    4.1oz / 116.23g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Component Video/Analog Audio Wall Balun, United Kingdom

From professional home theater setups to commercial video distribution systems, the Component Video/Analog Audio Wall Balun (500053-WP-UK) by Muxlab is an essential solution for transmitting high-quality video and audio signals over long distances. This high-quality balun enables one component video (YPbPr or RGB) and one analog audio signal to be efficiently sent through a single Category 5e/6 twisted pair cable, streamlining your cabling needs and reducing installation costs.

Designed for versatility and durability, the balun is ideal for a variety of high-definition (HDTV) video applications, both in commercial and residential environments. It supports a range of video formats, including 480i/p, ensuring compatibility with standard definition devices, as well as 720p and 1080i/p for high-definition sources, maintaining the integrity of the video quality over distances up to 1,000 ft (305m) for 480i/p and up to 500 ft (152m) for 720p/1080i/p via Cat5E/6 cabling.

The unit features molded color-coded RCA cable leads for easy and reliable connection, and it supports analog audio on the fourth twisted pair, making it a comprehensive audio-visual solution. The balun is also designed to fit neatly into 86x86mm back boxes and is compatible with a 50x50mm faceplate opening, ensuring a clean and professional installation.

The Component Video/Analog Audio Wall Balun is not only efficient in its performance but also in its installation. With quicker moves, adds, and changes, it offers a more cost-effective and neater wiring solution for installers and end-users alike. Whether you're setting up a networked CCTV system or distributing high-definition content across a large facility, this reliable and versatile balun chassis by Muxlab is the smart choice for seamless video and audio transmission.

Muxlab Component Video/Analog Audio Wall Balun, United Kingdom Features

  • Transmits component video and analog audio via one Cat5e/6 cable
  • Supports video formats including 480i/p, 720p, and 1080i/p
  • Molded color-coded RCA leads for straightforward connections
  • Analog audio support on the fourth twisted pair for comprehensive AV solutions
  • Fits 86x86mm back boxes and compatible with 50x50mm faceplate openings
  • Streamlines cabling for cost-efficiency and neater installations

Key Features

  • Extend your audio/video reach with this Component Video Wall Balun over Cat 5E/6 cable.
  • Enjoy crystal-clear video up to 1000ft (480i/p) using our high-performance video balun.
  • Easily connect DVD players & satellite receivers with this user-friendly video balun.
  • This durable balun supports resolutions up to 1080i/p for high-definition video quality.
  • Minimize signal loss and maximize audio fidelity with our superior audio balun design.
  • Simplify your setup with this Balun, compatible with standard Cat 5E/6 UTP/STP cabling.

What's in the box:

  • Muxlab Component Video/Analog Audio Wall Balun
  • MuxLab Lifetime Warranty
