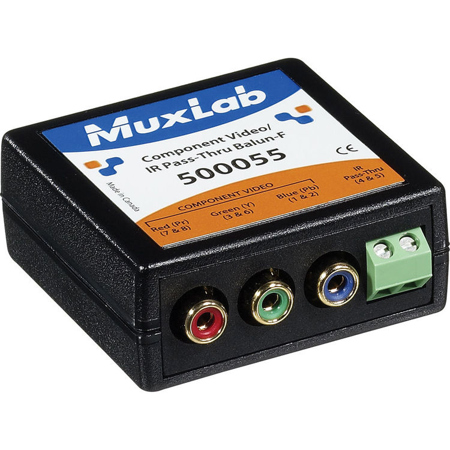

Muxlab Component Video/IR-Pass-Thru Balun, Female

SKU: ML500055 MFR: 500055
Be the first to review this itemAsk a Question
$63.60
$100.00
Save: $36.4 (36%)
Earn VIP Reward Points

Key Features

  • Extend your video signal reach with this durable Component Video Balun up to 1000 feet!
  • Enjoy easy installation: Connect DVD players & displays using standard Cat5/6 UTP cable.
  • Achieve crystal-clear video: Supports 480i/p, 720p, and 1080i/p resolutions effortlessly.
  • This weather resistant Balun offers IR pass-through for seamless remote control integration.
  • Ensure universal compatibility: Works with satellite receivers, projectors, and monitors.
  • Reliable video transmission: Features gold-plated RCA-F connectors for optimal signal strength.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.49

2 Year

$10.99

3 Year

$16.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab Component Video/IR-Pass-Thru Balun, Female Specifications

  • Environment

    Component Video (YPbPr)
    RGB Video (sync on green)
    480i/p, 720p, 1080i/p
    IRemitter pass-thru

  • Devices

    DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theatre and other equipment supporting HDTV component video and IR control

  • Transmission

    Transparent to the user

  • Bandwidth

    Video: 60 MHz, 3dB roll off

  • Maximum Input

    1.1Vp-p

  • Insertion Loss Per Pair

    0.1dB for 0.1 MHz
    Gradually increasing to 3.0dB over the frequency range

  • Return Loss

    Greater than 15dB over the frequency range

  • Common Mode Rejection

    -55dB max

  • Maximum Distance Color

    480i/p: 1000' / 304.80m
    720p and 1080i/p: 500' / 152.40m
    (Using Cat 5E/6 UTP & STP)

  • Cable - Cat5/6 UTP/STP

    24 gauge or lower solid copper twisted pair wire
    Impedance: 100Ohms at 1 MHz
    Maximum capacitance: 20 pf/foot.
    Attenuation: 6.6dB/1000' (304.80m) at 1 MHz

  • Cable - Coax

    Impedance: 75Ohms at 1 MHz

  • Connectors

    Three gold-plated RCA-F connectors: Green (Y), Blue (Pb) , Red (Pr)
    One 2-pole terminal block for IR emitter pass-through
    RJ45S for twisted pair

  • Pin Configuration

    Red (Pr): Pins 7 [R] & 8 [T]
    Green (Y): Pins 3 [R] & 6 [T]
    Blue (Pb): Pins 1 [R] & 2 [T]
    IR Pass-Thru: Pins 4 [R] & 5 [T]
    (Reverse polarity sensitive)

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95%

  • Enclosure

    ABS fire retardant plastic

  • Regulatory

    FCC, CE, RoHS

  • Dimensions

    2.40 x 2.25 x 1.0" / 60.96 x 57.15 x 25.40mm

  • Weight

    2.9oz / 82.21g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Component Video/IR-Pass-Thru Balun, Female

The Component Video/IR Pass-Thru Balun allows one component video (YPbPr or RGB) signal and one IR emitter signal to be transmitted via one Category 5 twisted pair cable for more cost-efficient cabling. Used in pairs, the Component Video/IR Pass-Thru Balun supports 480i/p, 720p and 1080i/p video formats for commercial and residential hi-definition (HDTV) video applications.

• Supports 480i/p, 720p, 1080i/p
• Supports 480i/p up to 1,000 ft (305m) via Cat5E/6
• Supports 720p/1080i/p up to 500 ft (152m) via Cat5E/6
• Molded color-coded RCA cable leads
• Supports IR-emitter pass-thru on fourth twisted pair
• Modular shielded RJ45 connector

Benefits
• More cost efficient cabling
• Quicker moves, adds and changes
• Neater wiring
