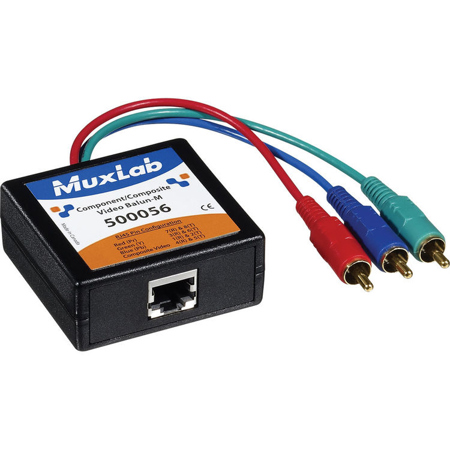

Muxlab Component/Composite Video Balun, Male

SKU: ML500056 MFR: 500056
$65.00
$100.00
Save: $35 (35%)
Earn VIP Reward Points

Key Features

  • Extend your surveillance system reach with this durable video balun, up to 2200 feet!
  • Enjoy crystal-clear video signal quality with our component/composite video balun.
  • This affordable balun supports 480i/p, 720p, and 1080i/p resolutions for versatile use.
  • Easy installation with standard RCA and RJ45 connectors; get your system running quickly.
  • Weather-resistant design ensures reliable performance for both indoor and outdoor setups.
  • Use with DVD players, satellite receivers, and more; a universal solution for video!
