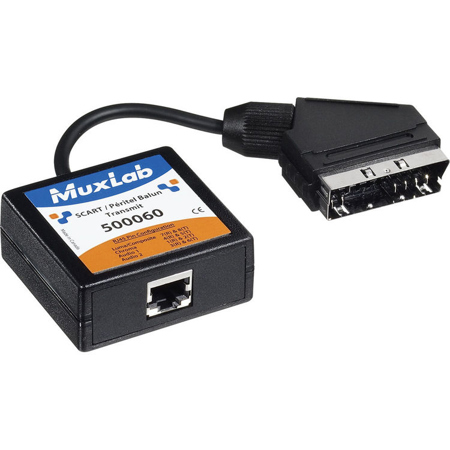

Muxlab SCART / Peritel Balun, Transmit (Source)
See all Muxlab items
35% Off

Muxlab SCART / Peritel Balun, Transmit (Source)

SKU: ML500060 MFR: 500060
Be the first to review this itemAsk a Question
$52.00
$80.00
Save: $28 (35%)
Earn VIP Reward Points

Key Features

  • Extend your video reach with this SCART balun, transmitting signals up to 670m via Cat 5 UTP cable.
  • Enjoy enhanced durability with our fire-retardant plastic enclosure, designed for lasting performance.
  • Achieve superior signal quality with impedance matching, ensuring clear video and audio transmission.
  • This balun offers easy install, quickly connecting your DVD players, VCRs, and satellite receivers.
  • Ensure compatibility with various devices using the SCART/Peritel to RJ45 balun for seamless integration.
  • Weather resistance design allows for reliable use in diverse environments, maintaining optimal function.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.49

2 Year

$8.99

3 Year

$14.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab SCART / Peritel Balun Specifications

  • Environment

    SCART / Peritelvision / Euro connector
    Composite video, S-Video, stereo audio
    PAL, SECAM, NTSC

  • Devices

    DVD players, VCR, satellite receivers, Xbox, Digital TV, MPEG players, monitors, LCD projectors, plasma screens, video switchers, sequencers, digital video servers, video multiplexers, video distribution amplifiers, video converters, and other composite video and S-Video equipment for SCART / Peritelvision / Euro connector

  • Transmission

    Transparent to the user

  • Compatible Baluns

    500000, 500001, 500009, 500012, 500016, 500017, 500018, 500019, 500021, 500023, 500038, 500039, 500201

  • Bandwidth

    Composite Video & S-Video:
    DC to 6 MHz
    Stereo Analog Audio:
    600Ohms for 73 Hz to 156 KHz at 300m / 984.24"
    1.2 KOhms for 128 Hz to 91 KHz at 300m / 984.24"

  • Impedance

    Composite Video & S-Video: 75Ohms
    Stereo Analog Audio: 600Ohms, minimum

  • Maximum Input

    Composite Video & S-Video: 1.1 Vpp
    Stereo Analog Audio: 1.1 Vpp

  • Insertion Loss

    Composite Video & S-Video:
    Less than 2 dB per pair over the frequency range from DC to 6 MHz
    Stereo Analog Audio:
    600Ohms, less than 3 dB per pair
    1.2KOhms, less than 1.9 dB per pair

  • Return Loss

    Composite Video & S-Video: Better than 15 dB from DC to 6 MHz

  • Common Mode Rejection

    Composite Video & S-Video: Greater than 40 dB from DC to 6 MHz

  • Maximum Distance - Cat 5 UTP

    S-Video: 300m / 984.24"
    Composite Video: 670m / 2198.14"
    Stereo Analog Audio: 1500m / 4921.20"

  • Cable - UTP

    24 AWG or lower solid copper twisted pair
    Impedance: 100Ohms; at 1 MHz
    Maximum Capacitance: 65 pf/m
    Attenuation: 2.2 dB/100m at 1 MHz

  • Connectors

    1x SCART / Peritel / Euro connector and 1x shielded RJ45 connector

  • Pin Configuration 1

    SCART: 4
    Description: Audio return
    SCART: 1
    Description: Audio right out (signal)
    SCART: 4
    Description: Audio return
    SCART: 13
    Description: Chroma return
    SCART: 15
    Description: Chroma out
    SCART: 3
    Description: Audio left (mono) out (sig)
    SCART: 17
    Description: Luma return Composite video return
    SCART: 19
    Description: Luma out Composite video out
    SCART: 21
    Description: Shield (optional)

  • Pin Configuration 2

    RJ45 EN 50173: 1
    RJ45 Signal: Audio 1 [R]
    RJ45 EN 50173: 2
    RJ45 Signal: Audio 1 [T]
    RJ45 EN 50173: 3
    RJ45 Signal: Audio 2 [R]
    RJ45 EN 50173: 4
    RJ45 Signal: Chroma [R]
    RJ45 EN 50173: 5
    RJ45 Signal: Chroma [T]
    RJ45 EN 50173: 6
    RJ45 Signal: Audio 2 [T]
    RJ45 EN 50173: 7
    RJ45 Signal: Luma/Composite [R]
    RJ45 EN 50173: 8
    RJ45 Signal: Luma/Composite [T]
    RJ45 EN 50173: Shield
    RJ45 Signal: Shield (optional)

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95%

  • Enclosure

    Fire retardant plastic

  • Standards

    EN 50173, EIA/TIA 568, ISO/IEC DIS 11081

  • Dimensions

    6.1 x 5.5 x 2.5cm / 2.40 x 2.17 x 0.98"
    Plus 4" / 101.60mm SCART cable lead

  • Weight

    3.3oz / 93.55g

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab SCART / Peritel Balun

The SCART/Peritel Balun allows a single composite video or S-Video signal plus stereo analog audio signals to be transmitted via unshielded twisted pair (UTP) cable in the European SCART/Peritelvision/Euro connector environment. The SCART/Peritel Balun functions as a transmit/receive pair and features two (2) models: 500060 and 500061; The 500060 is connected to the video source (transmit) and the 500061 is connected to the video display (receive). The product is compatible with MuXLab's 500001, 500012, 500016, 500017 and 500201 for a more cabling versatility.

Muxlab SCART / Peritel Balun Features

  • Supports Composite video, S-Video & Stereo Audio
  • Supports PAL, SECAM, NTSC
  • Supports SCART, Peritel, Euro connector
  • Composite video up to 670m via Cat5 UTP
  • S-Video up to 305m via Cat5 UTP
  • Stereo audio up to 1.5 km via Cat5 UTP
  • Works in conjunction with other MuxLab products such as 500001, 500012, 500016, 500017, 500200

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your video reach with this SCART balun, transmitting signals up to 670m via Cat 5 UTP cable.
  • Enjoy enhanced durability with our fire-retardant plastic enclosure, designed for lasting performance.
  • Achieve superior signal quality with impedance matching, ensuring clear video and audio transmission.
  • This balun offers easy install, quickly connecting your DVD players, VCRs, and satellite receivers.
  • Ensure compatibility with various devices using the SCART/Peritel to RJ45 balun for seamless integration.
  • Weather resistance design allows for reliable use in diverse environments, maintaining optimal function.

What's in the box:

  • Muxlab SCART / Peritel Balun
  • Muxlab Lifetime Warranty
