Muxlab Converter Specifications

  • Environment

    Digital Audio, LPCM

  • Devices

    DVD, CD Players, TV, PC, IP streaming devices, AVR

  • Applications

    Adapting 2-channel digital audio to legacy analog audio systems
    Commercial and residential AV systems
    Classroom video systems, boardroom systems

  • Transmission

    Transparent to the user

  • Signals

    2 channel LPCM (Linear Pulse Code Modulation)

  • Connectors

    1x Coaxial connector
    1x TOSLink Connector
    1x RCA Connectors

  • Switch

    Selects between SPDIF and TOSlink

  • Distortion

    <0.001% at 1KH

  • SNR

    > 90 dB (20Hz - 20 KHz)

  • Sample Rate

    32, 44.1, 48 and 96 KHz

  • Bit Depth

    24 bit S/PDIF bitstream on right and left channels

  • Power Supply

    110-240V/5VDC Power supplies with interchangeable blades

  • Power Consumption

    0.75W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Enclosure

    ABS fire retardant plastic

  • Mounting

    Velcro pads

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    2.4 x 2.25 x 1.0" / 6.10 x 5.72 x 2.54cm

  • Weight

    1.0lbs / 0.45kg

  • UPC Code

    627699000809

About Muxlab Converter

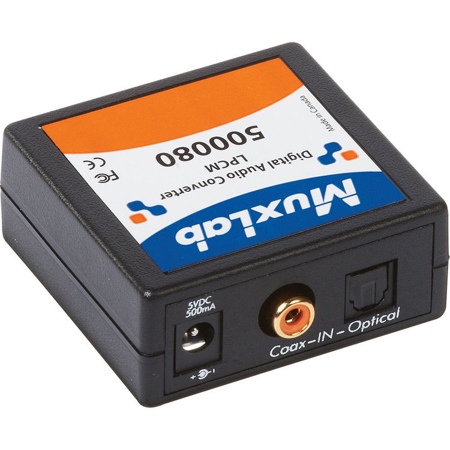

The Muxlab Digital Audio Converter (500080), converts one LPCM-encoded Digital Coax (S/PDIF) or Digital Optical (TOSlink) audio signal to a standard left/right analog audio output (RCA).This allows a digital audio source such as a BluRay, games console or CD player without a stereo audio output to be connected to an amplifier or TV.

Muxlab Converter Features

  • Converts digital audio signals to stereo audio (DAC)
  • Switch for selecting between S/PDIF and TOSlink inputs
  • 1m Digital Optical (TOSlink) cable included
  • Velcro pads included for ease of installation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 1m Digital Optical (TOSlink) cable included
  • Velcro pads included for ease of installation

What's in the box:

  • Muxlab LPCM Digital to Analog Converter
  • Power Supply
  • TOSlink Cable
  • Velcro Pads
  • Muxlab 2 Year Warranty
