31% Off

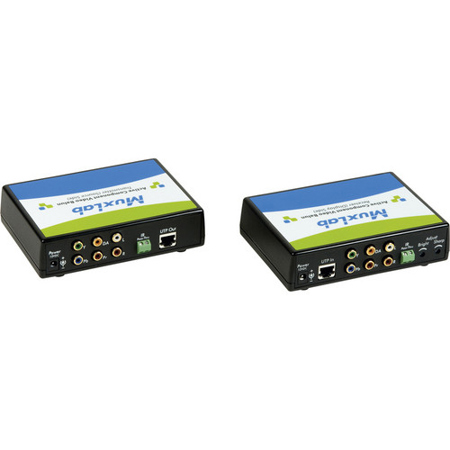

Muxlab Active Component Video Balun Kit

SKU: ML500090 MFR: 500090
Earn VIP Reward Points

Key Features

  • Extend your video setup up to 1000ft with this active component video balun kit.
  • Enjoy crystal-clear video with a bandwidth of up to 220MHz, supporting 1080p resolution.
  • This kit includes everything needed for easy installation, including power supplies.
  • Achieve optimal image quality with brightness and sharpness adjustments on the receiver.
  • Use standard Cat 5e UTP cable for reliable signal quality and cost-effective extension.
  • Compatible with DVD players, satellite receivers, and more for versatile applications.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$44.99

2 Year

$79.99

3 Year

$119.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Active Component Video Balun Kit Specifications

  • Environment

    Component Video with Analog Stereo and/or Digital Audio, IR-emitter Pass-through

  • Devices

    DVD Players, Satellite Receivers, PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors

  • Transmission

    Transparent to the user

  • Video Bandwidth

    Up to 220MHz (1080p)

  • 3dB Analog Audio BW

    20 Hz to 20 kHz over the distance range

  • Input Impedance

    Video & Digital Audio RCA: 75 Ohms
    Stereo Audio: 2.2 KOhms

  • Output Impedance

    Cat 5e: 100 Ohms

  • Connectors: Transmitter

    Component Input: 3 x female RCAs
    Stereo Audio Input: 2x Female RCAs
    Digital Audio Input: Female RCA
    IR-emitter pass-through: 2 Position terminal block
    Transmitter Output (Cat 5e): RJ45 shielded

  • Connectors: Receiver

    Receiver Input (Cat 5e): RJ45 shielded
    Component Output: 3x Female RCAs
    Stereo Audio Output: 2x Female RCAs
    Digital Audio Output: Female RCA
    IR-emitter pass-through: 2 position terminal block

  • Maximum Distance

    Component Video (Y/Pb/Pr) via Cat 5e UTP Cable (or better):
    480i/p: 1000" (305m)
    720p/1080i: 500" (152m)
    1080p: 500" (152m)

    Audio (Stereo/Digital) via Cat 5e UTP Cable (or better):
    Analog Stereo Audio: 1000" (305m)
    Digital Audio: 1000" (305m)

  • Brightness Adjustment

    Brightness control via rotary switch on receiver (factory default setting: zero gain)

  • Sharpness Adjustment

    Sharpness control via potentiometer on receiver (factory default: fully counter clockwise)

  • LED Indicators

    Tx Balun Power: 1x green LED
    Rx Balun Power: 1x green LED

  • Cable

    Cat 5e unshielded twisted pair (or better)

  • Power Supply

    2x 2110-240V/12VDC/0.5A, 12VDC power jacks
    Removable AC blades

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -10 to 70 deg. C / 14 to 158 deg. F

  • Humidity

    Up to 95% non-condensing

  • Enclosure

    ABS fire retardant plastic

  • Regulatory

    FCC/CE, RoHS

  • Dimensions

    6 x 4.25 x 1.50" / 15.24 x 10.80 x 3.81cm

  • Weight

    2.8lbs / 1.27kg (1.3 kg)

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Active Component Video Balun Kit

After integrating the Active Component Video Balun Kit into your audiovisual setup, you'll experience the seamless transmission of high-quality component video alongside both analog stereo and digital audio signals. This kit is expertly designed to facilitate the use of cost-effective unshielded copper twisted cable for point-to-point configurations, ensuring a more economical and efficient cabling solution without compromising signal integrity.

The kit is versatile, supporting the simultaneous transmission of stereo audio and digital audio, making it an ideal choice for a variety of applications. With the inclusion of an IR-emitter pass-through, users gain the convenience of remote control signal extension, enhancing the functionality of your system.

Optimized for high-definition content, the Active Component Video Balun Kit supports video resolutions up to 1080p, delivering crisp and clear images for an immersive viewing experience. The manual brightness and sharpness adjustments empower users to fine-tune the video output to match specific preferences or room conditions, ensuring the best possible picture quality.

This product is particularly well-suited for a range of environments, from digital signage deployments that demand high-resolution video, to residential settings where quality cannot be compromised. It's also an excellent choice for boardrooms and classrooms where clarity and reliability are paramount, as well as for home theatre systems where the cinematic experience is enhanced by superior audiovisual transmission.

Incorporate the Active Component Video Balun Kit into your electronic equipment lineup and elevate the standard of your audio and video presentations, ensuring they are not only impactful but also delivered with the highest fidelity.

Muxlab Active Component Video Balun Kit Features

  • Up to 1,000 ft (305m) via Cat5E/6 at 480i/p
  • Up to 500 ft (152m) via Cat5E/6 at 1080p
  • Supports simultaneous stereo and digital audio
  • IR-Emitter pass-through
  • Manual brightness compensation
  • Manual sharpness compensation
  • Ground Loop isolation

Key Features

  • Extend your video setup up to 1000ft with this active component video balun kit.
  • Enjoy crystal-clear video with a bandwidth of up to 220MHz, supporting 1080p resolution.
  • This kit includes everything needed for easy installation, including power supplies.
  • Achieve optimal image quality with brightness and sharpness adjustments on the receiver.
  • Use standard Cat 5e UTP cable for reliable signal quality and cost-effective extension.
  • Compatible with DVD players, satellite receivers, and more for versatile applications.

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • 2x External Power Supplies
  • Blades
  • Installation Guide
  • Muxlab 2 Year Warranty
