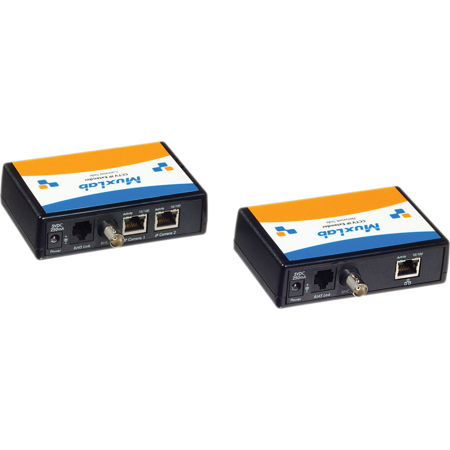

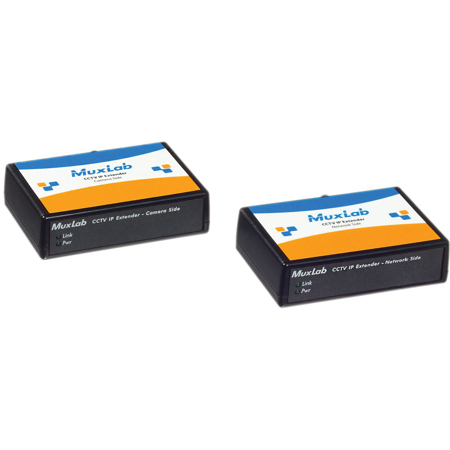

Muxlab CCTV IP Extender Kit
Muxlab CCTV IP Extender Kit: Picture 1 thumbnail
Muxlab CCTV IP Extender Kit: Picture 2 thumbnail
See all Muxlab items
34% Off

Muxlab CCTV IP Extender Kit

SKU: ML500110 MFR: 500110
Be the first to review this itemAsk a Question
$527.92
$800.00
Save: $272.08 (34%)
OR
$88/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your CCTV IP camera range up to 5000ft with this reliable Ethernet extender kit.
  • Enjoy seamless transmission with this transparent CCTV IP extender, easy for any user.
  • This Muxlab extender supports IEEE 802.3 standards for optimal network connectivity.
  • Achieve speeds up to 44 MB/s with this kit, perfect for high-resolution CCTV footage.
  • Connect your CCTV IP cameras & NVRs effortlessly with this versatile extender kit.
  • This durable CCTV IP extender kit includes a 2-year warranty for worry-free use.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab CCTV IP Extender Kit Specifications

  • Environment

    CCTV IP

  • Devices

    CCTV IP cameras, NVR, IP encoders, network switches and any device with a 10/100 MB/s Ethernet port, supporting IP

  • Transmission

    Transparent to the user

  • Standard supported

    Ethernet: IEEE 802.3 10BaseT, IEEE 802.3U 100Base-TX, IP ver 4 and 6
    Line side: VDSL-DMT: ITU-T G993.1 VDSL, ITU-T G997.1, G.993.2 VDSL2 (profile 17a)

  • Maximum Distance versus Speed

    Asymetric-Downstream/Upstream
    CAT 5e/6:
    5000' (1.5 km) => 17 MB/s 1.2 MB/s
    4000' (1.2 km) => 22 MB/s 5.3 MB/s
    3000' (0.9 km) => 28 MB/s 10 MB/s
    2000' (0.6 km) => 34 MB/s 21 MB/s
    1000' (0.3 km) => 44 MB/s 31 MB/s

  • Maximum Distance versus Speed 1

    RG59/U 20AWG Coax:
    5000' (1.5 km) => 31 MB/s 14 MB/s
    4000' (1.2 km) => 39 MB/s 21 MB/s
    3000' (0.9 km) => 39 MB/s 26 MB/s
    2000' (0.6 km) => 44 MB/s 28 MB/s
    1000' (0.3 km) => 44 MB/s 31 MB/s
    With two (2) cameras connected, maximum distance depends on throughput/resolution/compression ratio of the camera; 5 to 25 MB/s per camera

  • Cable Type

    Between unit:
    Coax 75Ohms or Cat5e/6 twisted-pair
    AWG24 or better
    Between Ethernet port:
    10 MB/s: CAT3, 4 or 5 UTP up to 330' (100 m)
    100 MB/s: CAT5, 5E or 6 UTP up to 330' (100 m)

  • LED Indicators

    Power, Link, Ethernet: 10/100 MB/s
    Ethernet: Activity

  • Connectors

    1x isolated BNC 75Ohms female to connect remote unit
    1x isolated RJ45 to connect remote unit
    1x or 2x metallic RJ45 with leds for Ethernet with auto reversal
    1x 2mm Power connector

  • Pin Configurations

    RJ45 connector: Pin 4 & Pin 5 (1 pair required only, blue and white/blue)
    BNC: 75Ohms coax cable: Center & Shield (shield is isolated from chassis)Polarity insensitive

  • Power Supplies

    100-240 V/5 VDC/625 mA
    2x Power supplies with for NA, Eur and UK

  • Power Consumption

    1.2 W each unit

  • Operating Temperature

    0 to 60 deg. C / 32 to 140 deg. F

  • Storage Temperature

    -55 to 85 deg. C / -67 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Enclosure

    Plastic

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94 V0

  • Dimensions

    4.5 x 3 x 1.25" / 11.43 x 7.62 x 3.18cm

  • Weight

    1lbs / 0.45kg

About Muxlab CCTV IP Extender Kit

After careful consideration of the needs of professional surveillance systems, the Muxlab CCTV IP Extender Kit (500110) emerges as a superior solution for enhancing the range and flexibility of your security network. This innovative and user-friendly extender kit is designed to seamlessly connect any CCTV IP camera over extended distances, ensuring reliable and high-quality video transmission.

Crafted with durability in mind, the extender supports robust connectivity via both Cat5e and coaxial cable options, catering to various installation environments and preferences. The 500110 model boasts the capability to maintain a high-speed connection of up to 100 Mbps for two IP cameras at distances up to 650 feet (200m), making it an ideal choice for expansive properties and complex surveillance setups.

For even larger areas, the extender kit excels by providing a stable connection at 25 Mbps up to an impressive 1 mile (1.6km), ensuring that even the most remote cameras in your surveillance network can transmit their feed with clarity and precision.

The Muxlab CCTV IP Extender Kit is compatible with most RJ-45 connector-equipped CCTV IP cameras, affirming its versatility and ease of integration into existing systems. This extender kit stands out as a testament to Muxlab's commitment to high-quality, reliable, and innovative surveillance solutions, making it a preferred choice for professionals seeking to enhance the reach and performance of their security cameras without compromising on video quality.

Muxlab CCTV IP Extender Kit Features

  • Extend distance between IP camera and 10/100BaseT LAN
  • Plug-and-forget - eliminates service calls
  • Leverages existing coax or Cat5e/6 installations
  • Supports up to two (2) IP cameras
  • Cat5e/6 or coax link
  • Up to 650' (200m) at 100Mbps
  • Up to 1 mile (1.6 km) at 25Mbps

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your CCTV IP camera range up to 5000ft with this reliable Ethernet extender kit.
  • Enjoy seamless transmission with this transparent CCTV IP extender, easy for any user.
  • This Muxlab extender supports IEEE 802.3 standards for optimal network connectivity.
  • Achieve speeds up to 44 MB/s with this kit, perfect for high-resolution CCTV footage.
  • Connect your CCTV IP cameras & NVRs effortlessly with this versatile extender kit.
  • This durable CCTV IP extender kit includes a 2-year warranty for worry-free use.

What's in the box:

  • Muxlab Transmitter (Camera Side)
  • Receiver (Network Side)
  • 2x Identical Wall-Mount Power Supplies
  • Muxlab 2 Year Warranty
