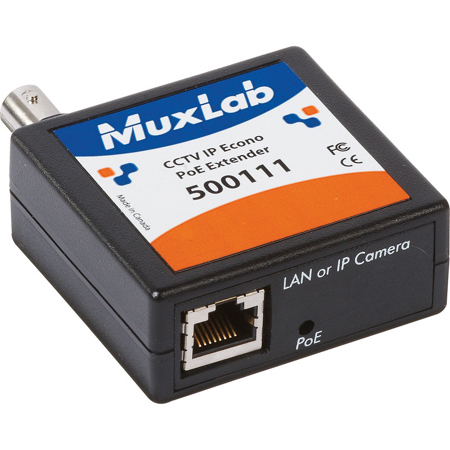

Muxlab CCTV IP PoE Extender

SKU: ML500111 MFR: 500111
$90.00
$120.00
Save: $30 (25%)
Earn VIP Reward Points

Key Features

  • Extend your CCTV IP camera range with this PoE extender, up to 1600 feet at 10 Mbps!
  • This CCTV IP PoE extender supports both PoE Mode A and Mode B for flexible installations.
  • Ensure reliable network connections in demanding environments with this durable PoE extender.
  • Perfect for campuses, highways, and more, this extender supports PoE CCTV IP cameras.
  • Achieve optimal performance with this PoE extender, designed for 10/100 Mbps Ethernet ports.
  • Simplify your setup; this extender requires no external power supply, consuming only 0.5W.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$8.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab CCTV IP PoE Extender Specifications

  • Environment

    PoE CCTV IP

  • Devices

    PoE CCTV IP cameras with a 10/100 Mbps Ethernet port, using up to 14 W

  • Standards

    Ethernet side:
    IEEE 802.3 10BaseT
    IEEE 802.3U 100Base-TX
    IEEE 802.3af compatible PoE. PoE Mode B
    Auto MDIX cross-over

  • Applications

    Campus, Highways, Airports, Hotels, Casinos, Commercial complexes, Remote parking lots, Entry gates, Self-storage, Hospitals, Car dealerships, Prisons, Network connections

  • Distance vs Speed Between Units

    10 Mbps at 7 W: 1600' (500 m)
    10 Mbps at 14 W: 1000' (300 m)
    100 Mbps at 14 W: 330' (100 m)

  • Cable

    Coax 75Ohms RG59/RG6 or better, (avoid CCS cable)

  • Cable for Ethernet Port

    Cat 5/5e/6 UTP, up to 10' (3 m)

  • Indicators

    Power present

  • Ethernet Connector

    1x RJ45S

  • Connector

    Connector to Connect the Two Units: BNC 75Ohms

  • PoE Mode Switch

    Manual switch selects between PoE Mode A or Mode B
    Mode A: For use with PoE switches (factory default)
    Mode B: For use with PoE power injectors

  • Power Consumption

    0.5 W from the PoE, no external supply required

  • Operating Temperature

    0 to 60 deg. C / 32 to 140 deg. F

  • Storage Temperature

    -55 to 85 deg. C / -67 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Enclosure

    Plastic

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    2.4 x 2.25 x 1" / 6.10 x 5.72 x 2.54cm

  • Weight

    Approx. 1lbs / 0.45kg

  • UPC Code

    00627699001110

About Muxlab CCTV IP PoE Extender

How can you enhance your surveillance system's reach and flexibility With our durable and high-quality CCTV IP PoE Extender, you can seamlessly extend the range of your IP camera's network connection. This innovative device allows a single IP camera to be connected via a 75-Ohms coax cable in a point-to-point configuration, providing a reliable and efficient solution for your surveillance needs.

Our CCTV IP PoE Extender is designed to work in pairs, ensuring a stable and uninterrupted connection. It boasts low power consumption, ensuring it does not burden your PoE source or switch, making it an energy-efficient addition to your security setup.

The maximum distance this device can cover depends on the grade of the coax cable and the power consumption of the camera, offering you the flexibility to customize your surveillance system based on your specific needs. Plus, it's compatible with both PoE and non-PoE cameras, making it a versatile choice for users with existing cameras that are not PoE-enabled.

In essence, this CCTV IP PoE Extender is not just a device, but a solution that eliminates the need for a separate power source by providing power to the camera over the same Ethernet cable used to transmit video and data. Enhance your surveillance capabilities with this efficient and reliable CCTV IP PoE Extender.

Muxlab CCTV IP PoE Extender Features

  • Connects IP PoE camera to 10/100BaseT PoE Switch via single coax cable
  • Up to 1600' (500m) at 10Mbps at 7W
  • Up to 330' (100m) at 100Mbps at 14W
  • Used in pairs
  • Preserve investment in legacy coax
  • Network connections in harsh electrical areas
  • Ease of migration to IP surveillance

Key Features

  • Extend your CCTV IP camera range with this PoE extender, up to 1600 feet at 10 Mbps!
  • This CCTV IP PoE extender supports both PoE Mode A and Mode B for flexible installations.
  • Ensure reliable network connections in demanding environments with this durable PoE extender.
  • Perfect for campuses, highways, and more, this extender supports PoE CCTV IP cameras.
  • Achieve optimal performance with this PoE extender, designed for 10/100 Mbps Ethernet ports.
  • Simplify your setup; this extender requires no external power supply, consuming only 0.5W.

What's in the box:

  • Muxlab CCTV IP PoE Extender
  • Muxlab 2 Year Warranty
