Muxlab Extender Kit Specifications

  • Environment

    PoE CCTV IP

  • Devices

    PoE CCTV IP cameras with a 10/100 Mb/s Ethernet port, using up to 15.4 W

  • Transmission

    Transparent to the user

  • Supported Standards

    Ethernet Side: IEEE 802.3 10BaseT, IEEE 802.3U 100Base-TX, IEEE 802.3af compatible PoE

  • PoE Power

    PoE Class 3

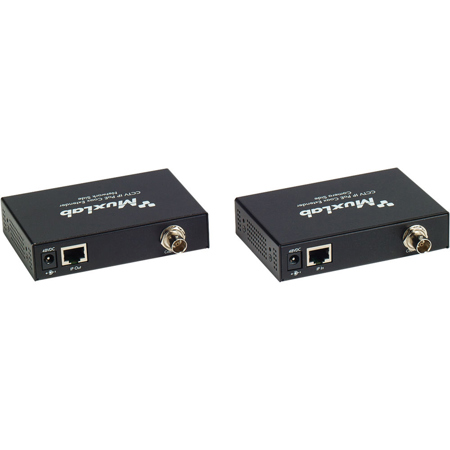

  • Connectors

    1x BNC 75Ohms
    1x RJ45 for CAT5e/6 unshielded or shielded twisted pair.

  • LED Indicators

    Power, IP traffic, 100 Mb/s

  • Maximum Distance

    RG59/RG6: Up to 980' / 298.71m at 100 Mb/s
    UTP CAT5e/6: Up to 330' / 100.59m at 100 Mb/s

  • RJ45 Pin Configuration

    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)
    (Reverse PolaritySensitive.Use EIA/TIA 568A or 586Bstraight-through wiring.)

  • Cable

    UTP/STP: 1x CAT5e/6 or better twisted pair cable required
    RG59/RG6: 75Ohms (avoid CCS and aluminum foil cable due to DC loss)

  • PoE Power Supply

    Optional Power Supply (110 to 240 V/48 VDC/0.625 A 2.1mm / 0.08" plug) with inter-changeable blades (sold separately)

  • Power Consumption

    Network Side: 1.82 W
    Camera Side: 1.73 W

  • Temperature

    Operating: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal

  • Compliance

    FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.37 x 2.95 x 0.99" / 111.00 x 74.93 x 25.15mm

  • Weight

    1.50lbs / 0.68kg

About Muxlab Extender Kit

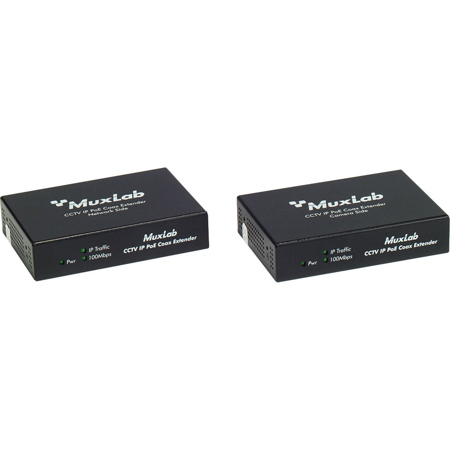

The LongReach CCTV IP PoE Extender Kit (500112) allows one CCTV PoE IP camera (up to 15.4 Watts) to be connected up to 980 ft (300 m) via a single 75-ohm coax cable in a point-to-point configuration to a PoE LAN switch. If the LAN switch is not PoE, then the 48VDC Power Supply (500113) is required in order to power the PoE camera and the 500112. The maximum distance depends on the grade of coax cable and the power consumption of the camera.

• Supports one IP PoE camera via one coax cable
• Supports CCTV IP PoE cameras up to 15.4W
• Up to 980 ft (300m) via coax at 100Mbps/15.4W
• Up to 330 ft (100m) on the LAN connection
• LED indicators for power, IP traffic, 100Mbps
• Includes wall-mount brackets

Applications
Campus, highways, airports, hotels, casinos, commercial complexes, remote parking lots, entry gates, self-storage, hospitals, car dealerships, prisons, network connections.

Benefits
Preserve investment in coax infrastructure Network connections in harsh electrical areas.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • 2x Wall Mount Bracket
  • Muxlab 2 Year Warranty
