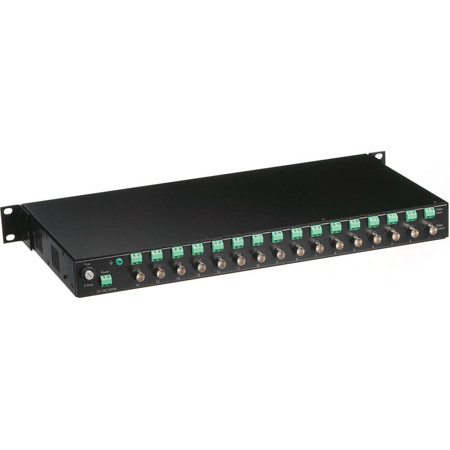

Muxlab LongReach 16 Active CCTV Receiver Hub, UTP/Coax, 110V/24VAC

After extensive research and development, we present the LongReach 16 Active CCTV Receiver Hub, a high-tech, advanced solution for your surveillance needs. This innovative device is equipped with 16 ports and features full Auto Gain Control (AGC), offering a truly sophisticated and professional plug-and-forget CCTV cabling solution via copper twisted pair.

The LongReach 16 is designed to automatically adjust picture brightness, sharpness, and contrast based on actual cabling conditions. This unique feature significantly reduces the need for on-site service calls, saving you time and resources.

Available in two models, UTP/UTP and UTP/Coax, the LongReach 16 caters to diverse cabling applications. This flexibility allows it to seamlessly integrate into your existing network setup, whether you're using UTP or Coax cables.

The LongReach 16 supports an impressive distance of up to 4,500 feet (1,371m) between the camera and DVR or IP camera encoder via Cat 5/6 twisted pair cable. This is achievable when used in conjunction with Muxlab's passive CCTV Baluns, making it an ideal choice for large-scale CCTV systems.

Each port on the LongReach 16 features Auto Gain Control (AGC), ensuring optimal video quality at all times. It supports NTSC, PAL, and SECAM video formats, providing a wide range of compatibility options.

The device also includes Ground Loop Isolation up to +/-50V and fuse protection, ensuring the safety and longevity of your equipment. LED indicators for power and video sync provide easy monitoring of the system's status.

The LongReach 16 requires a 24VAC power supply, which is included with the product. This professional-grade CCTV receiver hub is designed to save installation and maintenance time, making it a valuable addition to any surveillance system.

Please note that the UTP/UTP version of the LongReach 16 eliminates the need for coax cables completely, offering a streamlined and efficient cabling solution.
