Muxlab LongReach 16 Active CCTV Receiver Hub, UTP/Coax, 220-240V/24VAC
Muxlab Receiver Hub: Picture 1 thumbnail
Muxlab Receiver Hub: Picture 2 thumbnail
See all Muxlab items
25% Off

Muxlab LongReach 16 Active CCTV Receiver Hub, UTP/Coax, 220-240V/24VAC

SKU: ML500123 MFR: 500123
Be the first to review this itemAsk a Question
$2,475.00
$3,300.00
Save: $825 (25%)
OR
$207/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Enhance your CCTV setup with this LongReach receiver hub for reliable video signals.
  • Enjoy wide compatibility with various CCTV cameras, DVRs, and other video equipment.
  • Achieve low latency video transmission up to 4000ft via Cat 5/6 UTP cabling.
  • This video switcher supports transparent transmission, ensuring seamless operation.
  • Simplify your security system setup with easy installation for wall or desktop use.
  • Get good value with this Muxlab receiver hub, featuring automatic gain control.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab Receiver Hub Specifications

  • Environment

    CCTV equipment for security and surveillance. RS-343 (RS-170) NTSC, PAL

  • Devices

    CCTV cameras, DVR, IP camera encoders, monitors, switchers, multiplexers and other CCTV equipment

  • Transmission

    Transparent to the user

  • Bandwidth

    DC to 4.5 MHz

  • Input

    1.5 Vp-p max, 100Ohms, balanced

  • Output

    1.1 Vp-p, +/- 1 dB, 75Ohms, unbalanced

  • Insertion Loss

    -14 dB minimum for luma, -60 dB minimum for chroma
    Determined by Automatic Gain Control

  • Return Loss

    Greater than 15 dB over the frequency range

  • Common Mode Rejection

    Greater than 40 dB at 3.85 MHz

  • Maximum Distance

    Via Cat 5/6 UTP:
    NTSC: Camera to Hub: 4000' / 1219.21m
    Hub to DVR: 500' / 152.40m
    Total: 4500' / 1371.62m

    PAL: Camera to Hub: 3000' / 914.41m
    Hub to DVR: 350' (107 m)
    Total: 3500' / 1066.81m Longer distances may be achieved when connected directly to a CCTV monitor

  • Automatic Gain Control

    Automatic Gain Control for sharpness and luminosity

  • LED Indicators

    Power: 1x green LED
    Video Sync: 16x green LEDs

  • Cable - UTP

    UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100Ohms at 1 MHz
    Maximum capacitance: 20 pf/foot
    Attenuation: 6.6 dB/1000' (304.80 m) at 1 MHz

  • Cable - BNC

    Impedance: 75Ohms at 1 MHz (RG59/U or RG6)

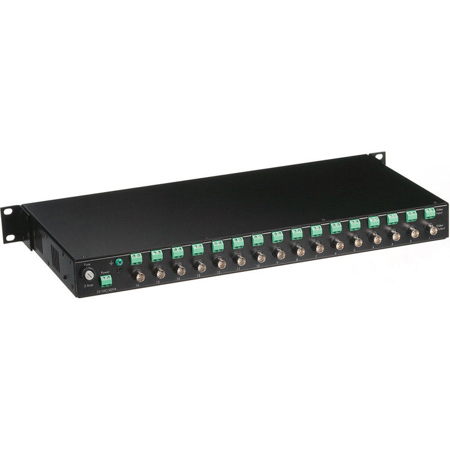

  • Connectors

    Video Input from cameras: 16x 2-pole screw terminals
    Video Output to DVR: 16x 2-pole screw terminals or 16x BNC-F
    Ground: 1x chassis ground lug
    (reverse polarity sensitive)

  • Compatible Baluns/Hubs

    Compatible Baluns/Hubs: 500000, 500000R, 500009, 500021, 500022, 500023, 500024, 500100, 500101, 500132, 500130, 500133

  • Power Consumption

    40W RMS max. at 24VAC RMS typical (floating; +15%, -10%)

  • Power Transformer Included

    Europe: 220-240/24VAC/70VA

  • Video Ground Loop Isolation

    +/- 50V max permanent voltage
    +/- 100V max surge for 3 secs

  • Fuse Rating

    3A

  • Temperature

    Operating: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    Black

  • Mounting

    Rackmount (factory default)
    Removable brackets for wallmount or desktop installation
    Rubber stand-offs included for desktop installation

  • Regulatory

    FCC and CE

  • Dimensions

    19 x 8.6 x 1.75" / 482.60 x 218.44 x 44.45mm

  • Weight

    4.6lbs / 2.09kg

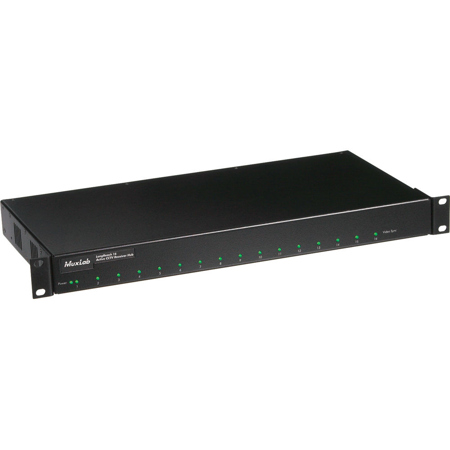

About Muxlab Receiver Hub

The LongReach 16 is a 16-port Active CCTV Receiver Hub with full Auto Gain Control (AGC) providing a true plug-and-forget CCTV cabling solution via copper twisted pair. The LongReach 16 automatically adjusts picture brightness, sharpness and contrast based on actual cabling conditions, thereby helping to reduce on-site service calls. The LongReach 16 is available in two (2) models: UTP/UTP and UTP/Coax depending on the cabling application. The product supports up to 4,500 ft (1,371m) between the camera and DVR or IP camera encoder via Cat 5/6 twisted pair cable when used in conjunction with Muxlab's passive CCTV Baluns.

• Auto Gain Control (AGC) on each port
• Up to 4,500 feet (1066m) via Cat 5 UTP
• Supports NTSC, PAL and SECAM
• Ground Loop Isolation up to +/-50V
• Fuse protection
• LEDs for power and video sync
• Requires 24VAC (included)
• 1 year warranty

Benefits
Saves installation and maintenance time UTP/UTP version eliminates coax completely.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhance your CCTV setup with this LongReach receiver hub for reliable video signals.
  • Enjoy wide compatibility with various CCTV cameras, DVRs, and other video equipment.
  • Achieve low latency video transmission up to 4000ft via Cat 5/6 UTP cabling.
  • This video switcher supports transparent transmission, ensuring seamless operation.
  • Simplify your security system setup with easy installation for wall or desktop use.
  • Get good value with this Muxlab receiver hub, featuring automatic gain control.

What's in the box:

  • Muxlab LongReach 16 Active CCTV Receiver Hub
  • Power Transformer (220-240V/24VAC)
  • Removable Brackets for Wallmount or Desktop Installation
  • Rubber Stand-Offs for Desktop Installation
  • Muxlab 1 Year Warranty
