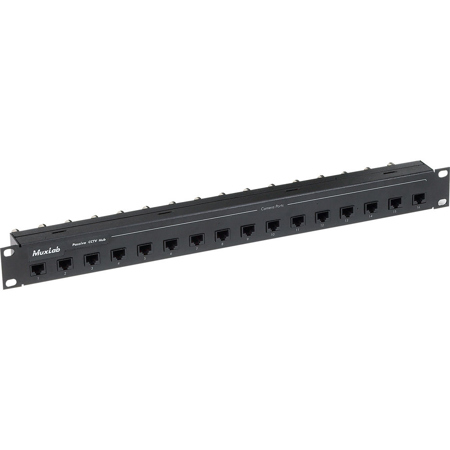

Muxlab VideoEase Passive CCTV Hub, UTP/Coax
Muxlab VideoEase Passive CCTV Hub, UTP/C...: Picture 1 thumbnail
Muxlab VideoEase Passive CCTV Hub, UTP/C...: Picture 2 thumbnail
See all Muxlab items
25% Off

Muxlab VideoEase Passive CCTV Hub, UTP/Coax

SKU: ML500130 MFR: 500130
Be the first to review this itemAsk a Question
$394.00
$525.00
Save: $131 (25%)
OR
$66/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Maximize CCTV setup with this passive hub, supporting multiple cameras & DVRs.
  • Extend video signals up to 2200' via Cat 5, ensuring clear, long-distance surveillance.
  • Simplify PTZ camera control up to 4000' with dedicated 2-wire PTZ control support.
  • Each port is configurable for Pass-Thru or Power-Thru, adapting to your power needs.
  • Supports both UTP and coax cables, offering flexible connectivity options for video.
  • Reduce interference with >40dB common mode rejection at 8 MHz for clear video.
See More Product Details
