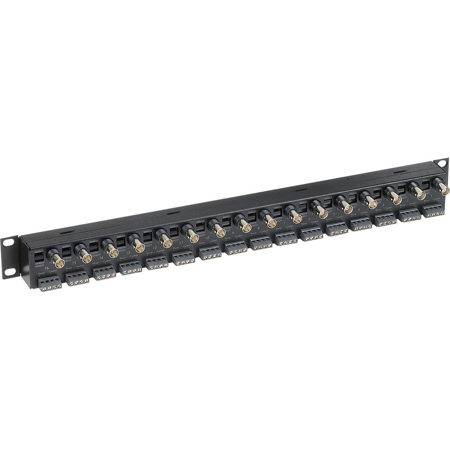

Muxlab VideoEase Passive CCTV Hub, UTP/UTP

SKU: ML500131 MFR: 500131
Earn VIP Reward Points

Key Features

  • Maximize CCTV setup with this Muxlab VideoEase hub, ensuring seamless video signal transmission.
  • Extend your surveillance reach; supports up to 2200' via Cat 5 for clear video monitoring.
  • Enhance video clarity; the hub maintains signal integrity with less than 2dB insertion loss.
  • Simplify PTZ camera control; supports remote 2-wire PTZ up to 4000', streamlining operations.
  • Reliable video distribution; features greater than 40dB common mode rejection at 8 MHz.
  • Versatile connectivity with RJ45 jacks, perfect for integrating various CCTV equipment easily.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab VideoEase Passive CCTV Hub, UTP/UTP Specifications

  • Environment

    Composite video; NTSC, PAL, SECAM

  • Devices

    CCTV cameras, DVRs, monitors, switchers, multiplexers and other CCTV equipment

  • Transmission

    Transparent to the user

  • Video: Bandwidth

    DC to 8 MHz

  • Video: Maximum Input

    1.1Vp-p

  • Video: Insertion Loss

    Less than 2 dB per pair over the frequency range from DC to 8 MHz

  • Video: Return Loss

    Greater than 15 dB over the frequency range from DC to 8 MHz

  • Video: Common Mode Rejection

    Greater than 40 dB at 8 MHz

  • Video: Maximum Distance

    Color: Cat 3 - 1200' / 365.76m, Cat 5 - 2200' / 670.57m
    B/W: Cat 3 - 1500' / 457.21m, Cat 5 - 2500' / 762.01m

  • Remote Power: Switch Mode

    Pass-Thru Mode (500022):
    Number of twisted pairs: Two
    Max. Distance at 24VAC:
    5 VA: 350' / 106.68m
    10 VA: 175' / 53.34m
    20 VA: 90' / 27.43m
    30 VA: 60' / 18.29m

    Pass-Thru Mode (500024/500029):
    Number of twisted pairs: Three
    Max. Distance at 24VAC:
    5 VA: 518' / 157.89m
    10 VA: 259' / 78.94m
    20 VA: 130' / 39.62m
    30 VA: 86' / 26.21m

  • Remote Power: Maximum Input Voltage

    50 Volts (AC RMS/DC). Recommended Class II PSU with fuse protection per port

  • Remote Power: Maximum Current

    4.5A (AC RMS/DC)

  • 2-Wire PTZ Control: Wiring

    Remote 2-wire PTZ control supported via 1x twisted pair

  • 2-Wire PTZ Control: Maximum Distance

    Up to 4000' / 1219.21m depending on the PTZ camera vendor

  • 2-Wire PTZ Control: Maximum Power

    50 Volts (AC RMS/DC); 3A (AC RMS/DC)

  • Cable - UTP

    24 gauge or lower solid copper twisted pair wire impedance: 100Ohms at 1 MHz
    Maximum capacitance: 20 pf/foot
    Attenuation: 6.6 dB/1000' (304.80m) at 1 MHz

  • Cable - Coax

    Impedance: 75Ohms at 1 MHz (RG59/U mini coax). Max. 25' (7.6m) of coax allowed end to end

  • Connectors

    Video: 16x 2-pole screw terminals
    Power: 16x 2-pole screw terminals
    Control: 16x 2-pole screw terminals
    Combined signals: 16x RJ45 jacks

  • Port Configuration Switch

    Port Configuration Switch: Sets each port as Pass-Thru (500022) or as Power-Thru (500024/500029)

  • RJ45 Pin Configuration 1

    Signal: Power A (+)
    500022 Mode: 1,3
    500024/500029: 1,3,5

    Signal: Power B (-)
    500022 Mode: 2,6
    500024/500029: 2,4,6

    Signal: Control (+)
    500022 Mode: 4

    Signal: Control (-)
    500022 Mode: 5

  • RJ45 Pin Configuration 2

    Signal: Video BNC Center (Tip)
    500022 Mode: 7 [T] opposite to 500000
    500024/500029: 7 [T] opposite to 500000

    Signal: Video BNC Ground (Ring)
    500022 Mode: 8 [R] opposite to 500000
    500024/500029: opposite to 500000
    (Reverse polarity sensitive if 12 DC camera is used)

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    Black, anodized aluminum

  • Dimensions (W x H x D)

    19 x 1.75 x 1.5" / 482.60 x 44.45 x 38.10mm

  • Weight

    2.3lbs / 1.04kg

About Muxlab VideoEase Passive CCTV Hub, UTP/UTP

After meticulous design, the VideoEase Passive CCTV Hub emerges as a pinnacle of surveillance efficiency, offering a streamlined solution for security professionals. This high-quality, durable hub is engineered to transmit video, remote power, and PTZ (Pan-Tilt-Zoom) control signals over a single Cat5 cable, thereby simplifying the cabling process and enhancing the tidiness of security video installations.

The hub boasts two 16-port models to cater to diverse needs: Model 500130, which provides a coaxial video output, and Model 500131, featuring a twisted pair video output. This versatility ensures that the hub can integrate seamlessly with various types of video transmission systems, making it a user-friendly and adaptable choice for a wide range of security setups.

As a passive device, the VideoEase Passive CCTV Hub operates without the need for external power, which not only reduces energy consumption but also minimizes the potential for power-related disruptions. This energy-efficient design is particularly attractive for those seeking a cost-effective and reliable solution for their surveillance needs.

The hub is designed to work in harmony with a suite of complementary products, including models 500000, 500009, 500015, 500022, 500023, 500024, 500029, and 500120, ensuring a high degree of compatibility and the potential for a comprehensive security system expansion.

With its capacity to connect multiple video sources to a single monitor or recording device, the VideoEase Passive CCTV Hub is an essential component in sophisticated security and surveillance applications. Its efficient, versatile, and user-friendly nature makes it a top choice for professionals looking to maintain vigilance with minimal complexity.

Muxlab VideoEase Passive CCTV Hub, UTP/UTP Features

  • Port switch to set Power-Thru or Pass-Thru mode
  • Pin configuration table on unit
  • Space efficient, rack mountable

Product Documents

User Manual

Key Features

  • Maximize CCTV setup with this Muxlab VideoEase hub, ensuring seamless video signal transmission.
  • Extend your surveillance reach; supports up to 2200' via Cat 5 for clear video monitoring.
  • Enhance video clarity; the hub maintains signal integrity with less than 2dB insertion loss.
  • Simplify PTZ camera control; supports remote 2-wire PTZ up to 4000', streamlining operations.
  • Reliable video distribution; features greater than 40dB common mode rejection at 8 MHz.
  • Versatile connectivity with RJ45 jacks, perfect for integrating various CCTV equipment easily.

What's in the box:

  • Muxlab VideoEase Passive CCTV Hub
  • Muxlab Lifetime Warranty
