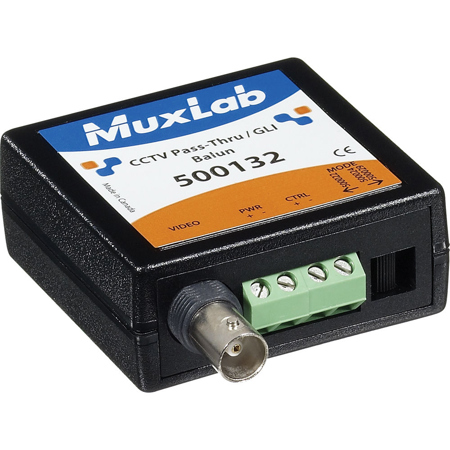

Muxlab CCTV Pass-Thru/GLI Balun

SKU: ML500132 MFR: 500132
Be the first to review this itemAsk a Question
$49.00
$75.00
Save: $26 (35%)
Earn VIP Reward Points

Key Features

  • Ensure clear CCTV video signals with this balun, eliminating ground loop interference up to 50VDC.
  • Extend your surveillance camera range up to 2200ft using Cat5e/6 cable with this CCTV BNC to RJ45 balun.
  • Simplify CCTV installations; this balun supports remote low voltage power over twisted pair wiring.
  • This CCTV balun supports 2-wire PTZ control up to 4000ft, compatible with RS-422 and RS-485 systems.
  • Select between Power-Thru and Pass-Thru modes using the integrated switch for flexible CCTV setups.
  • Durable ABS fire retardant plastic enclosure ensures reliable performance in temperatures from 32 to 131°F.
