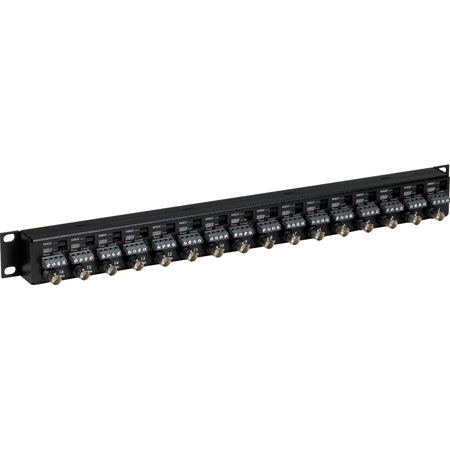

Muxlab VideoEase Passive CCTV/GLI Hub, UTP/Coax

SKU: ML500133 MFR: 500133
Earn VIP Reward Points

Key Features

  • Maximize CCTV setup with this VideoEase hub, supporting composite video & NTSC formats.
  • Extend camera reach up to 2200' using Cat 5, ensuring reliable video transmission distances.
  • Isolate ground loops up to 50VDC, enhancing video signal clarity for your CCTV cameras.
  • Simplify PTZ control with 2-wire support up to 4000', streamlining camera management tasks.
  • Utilize pass-thru mode for remote power, optimizing power distribution to your CCTV system.
  • Ensure robust video signal with >15 dB return loss, maintaining high-quality video clarity.
