Muxlab Passive CCTV Power Integrator Hub, 24/28 VAC, Europe

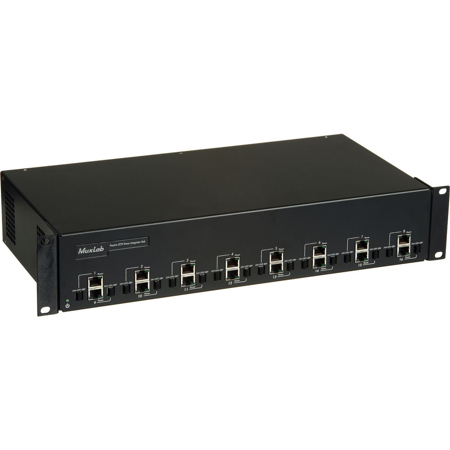

Muxlab Power Integrator Hub: Picture 1 thumbnail
Muxlab Power Integrator Hub: Picture 2 thumbnail
See all Muxlab items
25% Off

Muxlab Passive CCTV Power Integrator Hub, 24/28 VAC, Europe

SKU: ML500136EUR MFR: 500136-EUR
Be the first to review this itemAsk a Question
$825.00
$1,100.00
Save: $275 (25%)
OR
$69/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Integrate CCTV power easily with this Muxlab hub, supporting 24/28 VAC for reliable camera operation.
  • Maximize your CCTV setup; this power integrator supports composite video signals like NTSC and PAL.
  • Ensure clear video with a bandwidth of DC to 8 MHz, perfect for high-resolution CCTV camera feeds.
  • Extend CCTV camera reach up to 2200' using Cat 5e/6 cable, optimizing placement and coverage.
  • Simplify PTZ control with 2-wire support, extending control distances up to 4000' for your cameras.
  • Enjoy robust protection with auto-reset fuses on each port, ensuring uninterrupted CCTV operation.
