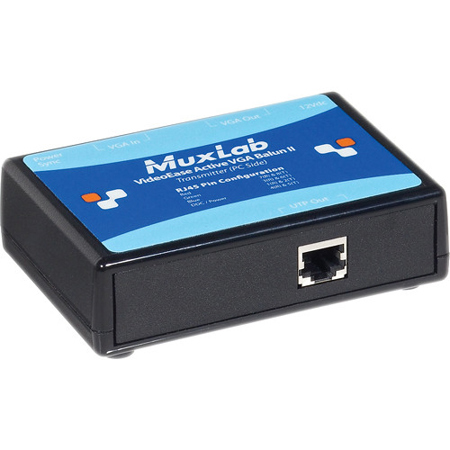

Muxlab Active VGA Balun II Transmitter, No Power

SKU: ML500141 MFR: 500141
Be the first to review this itemAsk a Question
$144.50
$210.00
Save: $65.5 (31%)
Earn VIP Reward Points

Key Features

  • Extend your VGA signal up to 1000ft with this Active VGA Balun II Transmitter over Cat5e/6 cable.
  • Enjoy crystal-clear images with resolutions up to 1920x1200 using this VGA transmitter.
  • This VGA Balun offers ground loop isolation, preventing signal interference for optimal clarity.
  • Easily connect PCs, laptops, and monitors using the versatile VGA Balun II Transmitter.
  • Achieve transparent VGA transmission, making setup a breeze with this user-friendly balun.
  • Durable ABS enclosure ensures long-lasting performance for your surveillance and security needs.
See More Product Details
Special Order?Estimated to Ship: 11/14/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$14.99
2-Year Adorama Protect$24.99
3-Year Adorama Protect$37.99

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab Active VGA Balun II Specifications

  • Environment

    VGA. VESA VP&D 1.0, VIP ver 2.0. DDC1 and DDC1

  • Devices

    PCs, laptops, monitors, LCD monitors, plasma screens, DLP projectors

  • Transmission

    Transparent to the user

  • Bandwidth

    Up to 220 MHz (1920x1200 resolution), 1080p

  • Input Impedance

    HD15; 75Ohms

  • Output Impedance

    Cat5: 100Ohms

  • Connectors: Transmitter

    VGA/Component Input (PC): DB15HD-F
    VGA/Component Output (Local Monitor): DB15HD-F
    VGA/Component Output (Cat5E): RJ45 shielded

  • Connectors: Receiver

    VGA/Component Input (Cat5E): RJ45 shielded
    VGA/Component Output (Display): DB15HD-M

  • Maximum Distance

    Remote Power:
    150' / 45.72m (Tx Balun unpowered, Rx balun powered)
    150' / 45.72m (Tx Balun powered, Rx balun unpowered)

    For VGA via Cat 5E/6:
    640 x 480 (VGA): 1000' / 304.80m
    800 x 600 (SVGA): 1000' / 304.80m
    1024 x 768 (XGA): 1000' / 304.80m
    1280 x 1024 (SXGA): 850' / 259.08m
    1600 x 1200 (UXGA): 850' / 259.08m
    1366 x 768 (WXGA): 850' / 259.08m
    1680x1050 (WSXGA): 850' / 259.08m
    1920 x1200 (WUXGA): 600' / 182.88m

  • Maximum Distance 1

    For Component Video (YPbPr) via Cat 5E/6:
    480i/p: 1000' / 304.80m
    1080p: 600' / 182.88m
    1080i: 850' / 259.08m

  • RJ45 Pin Configuration

    Reverse Polarity Sensitive (Use EIA/TIA 568 A or B, straight through wiring)
    Red: Pin 7 (R) Pin 8 (T)
    Green: Pin 3 (R) Pin 6 (T)
    Blue: Pin 1 (R) Pin 2 (T)
    DDC/Remote Power: Pin 4 (R) Pin 5 (T)

  • Gain Control

    Gain control via brightness and sharpness potentiometers (Rev B)

  • LED Indicators

    Tx Balun:
    Power:1x Green LED
    Sync: 1x Green LED

    Rx Balun:
    Power: 1x Green LED

  • Cable

    Category 5 or better twisted pair cable
    Transmitter requires additional VGA jumper cables (not included)

  • Ground Loop Isolation

    Up to -2VDC to +3VDC between PC and display ground

  • Enclosure

    Black. ABS fire retardant plastic

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    14 to 158 deg. F (-10 to 70 deg. C)

  • Humidity

    Up to 95% non-condensing

  • Regulatory

    FCC/CE, RoHS

  • Dimensions

    Transmitter: 4.5 x 3.8 x 1.25" (11.43 x 9.65 x 3.18cm)
    Receiver: 2 2.4 x 2.25 x 1.0" (6.10 x 5.72 x 2.54cm) plus 6" cable lead

  • Weight

    2 lbs (910g)

Designed For Use With:

  • Muxlab

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Active VGA Balun II

The Active VGA Balun II Transmitter allows VGA or component video to be transmitted via cost-efficient unshielded copper twisted cable in a point-to-point configuration.

The product supports remote power pass-thru and is DC compliant with all "plug-and-play" laptops, PCs and displays. The product supports up to 1920 x 1200 pixels and 1080p resolution and features manual gain adjustment and local monitor output for added versatility.

The product converts the VGA signal from an unbalanced signal to a balanced signal and amplifies and equalizes the signal at the receiving end. It provides excellent image quality and minimizes distortions due to smearing, propagation delay and phase deviation. The transmitter and receiver are shown in the photo below.

Muxlab Active VGA Balun II Features

  • Extend your VGA signal up to 1000ft with this Active VGA Balun II Transmitter over Cat5e/6 cable
  • Enjoy crystal-clear images with resolutions up to 1920x1200 using this VGA transmitter
  • This VGA Balun offers ground loop isolation, preventing signal interference for optimal clarity
  • Easily connect PCs, laptops, and monitors using the versatile VGA Balun II Transmitter
  • Achieve transparent VGA transmission, making setup a breeze with this user-friendly balun
  • Durable ABS enclosure ensures long-lasting performance for your surveillance and security needs

Warranty Information

This product has a limited warranty of 24 months.

Compatibility

Designed for use with: Muxlab

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your VGA signal up to 1000ft with this Active VGA Balun II Transmitter over Cat5e/6 cable.
  • Enjoy crystal-clear images with resolutions up to 1920x1200 using this VGA transmitter.
  • This VGA Balun offers ground loop isolation, preventing signal interference for optimal clarity.
  • Easily connect PCs, laptops, and monitors using the versatile VGA Balun II Transmitter.
  • Achieve transparent VGA transmission, making setup a breeze with this user-friendly balun.
  • Durable ABS enclosure ensures long-lasting performance for your surveillance and security needs.

What's in the box:

  • Muxlab Active VGA Balun II Transmitter
  • Installation Guide
  • Muxlab 2 Year Limited Warranty
