Muxlab Active VGA Balun II Receiver, No Power
SKU: ML500142
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Muxlab Balun II Receiver Specifications
Environment
VGA. VESA VP&D 1.0, VIP ver 2.0. DDC1 and DDC1
Devices
PCs, laptops, monitors, LCD monitors, plasma screens, DLP projectors
Transmission
Transparent to the user
Bandwidth
Up to 220 MHz (1920x1200 resolution), 1080p
Input Impedance
HD15; 75Ohms
Output Impedance
Cat5: 100Ohms
Connectors: Transmitter
VGA/Component Input (PC): DB15HD-F
VGA/Component Output (Local Monitor): DB15HD-F
VGA/Component Output (Cat5E): RJ45 shieldedConnectors: Receiver
VGA/Component Input (Cat5E): RJ45 shielded
VGA/Component Output (Display): DB15HD-MMaximum Distance
Remote Power:
150' / 45.72m (Tx Balun unpowered, Rx balun powered)
150' / 45.72m (Tx Balun powered, Rx balun unpowered)
For VGA via Cat 5E/6:
640 x 480 (VGA): 1000' / 304.80m
800 x 600 (SVGA): 1000' / 304.80m
1024 x 768 (XGA): 1000' / 304.80m
1280 x 1024 (SXGA): 850' / 259.08m
1600 x 1200 (UXGA): 850' / 259.08m
1366 x 768 (WXGA): 850' / 259.08m
1680x1050 (WSXGA): 850' / 259.08m
1920 x1200 (WUXGA): 600' / 182.88mMaximum Distance 1
For Component Video (YPbPr) via Cat 5E/6:
480i/p: 1000' / 304.80m
1080p: 600' / 182.88m
1080i: 850' / 259.08mRJ45 Pin Configuration
Reverse Polarity Sensitive (Use EIA/TIA 568 A or B, straight through wiring)
Red: Pin 7 (R) Pin 8 (T)
Green: Pin 3 (R) Pin 6 (T)
Blue: Pin 1 (R) Pin 2 (T)
DDC/Remote Power: Pin 4 (R) Pin 5 (T)Gain Control
Gain control via brightness and sharpness potentiometers (Rev B)
LED Indicators
Tx Balun:
Power:1x Green LED
Sync: 1x Green LED
Rx Balun:
Power: 1x Green LEDCable
Category 5 or better twisted pair cable
Transmitter requires additional VGA jumper cables (not included)Ground Loop Isolation
Up to -2VDC to +3VDC between PC and display ground
Enclosure
Black. ABS fire retardant plastic
Operating Temperature
32 to 104 deg. F / 0 to 40 deg. C
Storage Temperature
14 to 158 deg. F / -10 to 70 deg. C
Humidity
Up to 95% non-condensing
Regulatory
FCC/CE, RoHS
Dimensions
Transmitter: 4.5 x 3.8 x 1.25" / 11.43 x 9.65 x 3.18cm
Receiver: 2 2.4 x 2.25 x 1.0" / 6.10 x 5.72 x 2.54cm plus 6" cable leadWeight
2lbs / 0.91kg
UPC Code
627699001424

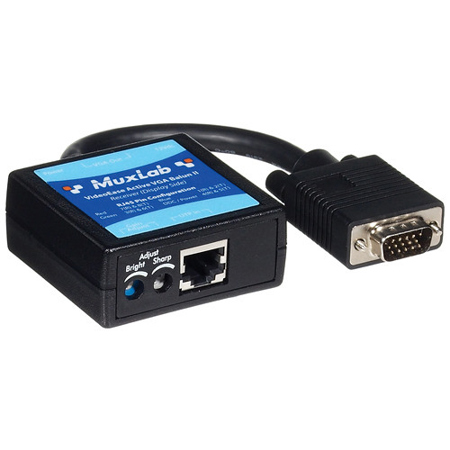

About Muxlab Balun II Receiver
What's in the box:
- Muxlab Active VGA Balun II Receiver
- Installation Guide
- Muxlab 2 Year Warranty
