Muxlab Active VGA/Audio Balun Kit
See all Muxlab items

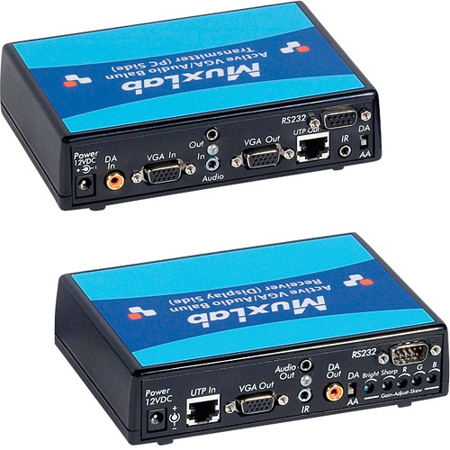

Muxlab Active VGA/Audio Balun Kit, Includes Transmitter, Receiver

SKU: ML500145
