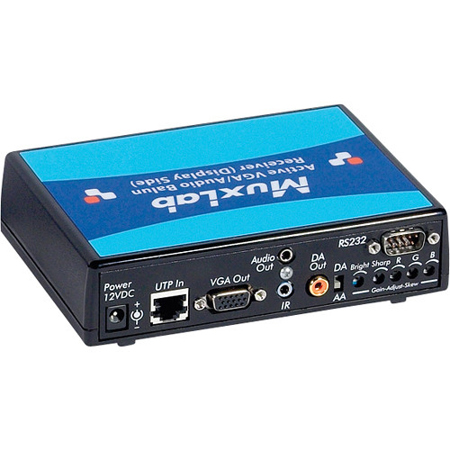

Muxlab Active VGA/Audio Balun Receiver with Power Supply

SKU: ML500147 MFR: 500147
Earn VIP Reward Points

Key Features

  • Extend VGA signals up to 1000ft with this Active VGA/Audio Balun Receiver, perfect for large venues.
  • Enjoy crystal-clear audio with the integrated stereo and digital audio support on this receiver.
  • This Muxlab receiver supports up to 1920 x 1200 resolution, ensuring a sharp, detailed display.
  • Easy setup with standard Cat 5e/6 cables makes this VGA balun receiver a breeze to install.
  • Use with PCs, laptops, & projectors; this VGA receiver offers broad device compatibility.
  • Fine-tune image quality with brightness and sharpness adjustments on the VGA balun receiver.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$94.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Balun Receiver Specifications

  • Environment

    VGA. VESA VP&D 1.0, VIP ver 2.0. DDC1 and DDC2 with Analog Stereo and/or Digital Audio, IR and RS232 control

  • Devices

    PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors

  • Transmission

    Transparent to the user

  • Bandwidth

    Up to 220 MHz (1920 x 1200 resolution), 1080p

  • Input Impedance

    HD15: 75Ohms
    Stereo Audio: 2.2 KOhms

  • Output Impedance

    Cat 5e/6: 100Ohms

  • Connectors: Receiver

    Link Input: RJ45S
    VGA Output (Display): HD15-F
    Stereo Audio Output: 3.5mm jack
    Digital Audio Output: RCA-F
    IR-Sensor Input: 3.5mm (stereo) jack
    RS232: DB9-M

  • Maximum Distance

    VGA via Cat 5e/6 UTP:
    640 x 480 (VGA): 1000" (305m)
    800 x 600 (SVGA): 1000" (305m)
    1024 x 768 (XGA): 1000" (305m)
    1280 x 1024 (SXGA):850" (260m)
    1600 x 1200 (UXGA):800" (245m)
    1366 x 768 (WXGA):850" (260m)
    1680x1050 (WSXGA):850" (260m)
    1920 x 1200 (WUXGA):600" (180m)

    Audio:
    Analog Stereo Audio: 1000" (305 m), Digital Audio: 1000" (305 m)

  • RJ45 Pin Configuration

    Reverse Polarity Sensitive (Use EIA/TIA 568 A or B, straight through wiring)
    Green (Y): Pin 4 (R) Pin 5 (T)
    Blue (Pb): Pin 1 (R) Pin 2 (T)
    Red (Pr): Pin 7 (R) Pin 8 (T)
    IR-Emitter, RS-232: Pin 3 (R) Pin 6 (T)

  • Brightness Adjustment

    Brightness control via rotary switch on the receiver. (Factory default setting: "None")

  • Sharpness Adjustment

    Sharpness control via potentiometer on the receiver
    (Factory default setting: Completely rotated counterclockwise)

  • Skew Adjustment

    Skew control via 3 potentiometers (R, G, B) on the receiver
    (Factory default setting: Completely rotated counterclockwise)

  • LED Indicators

    Tx Balun Power: 1x Green LED
    Sync: 1x Green LED
    Rx Balun Power: 1x Green LED

  • IR Interface

    IR Emitter (500998): IR Wavelength: 940 nm
    IR Sensor (500999): IR Wavelength: 940 nm, Carrier freq: 38 KHz, Receiving Distance: 50"(15m)
    Power requirement:: 12 VDC at 2 mA

  • Cable

    Cat 5e/6 unshielded twisted pair (or better)

  • Power Supply

    110-240V/12VDC/0.5A, 12VDC power jacks
    Removable AC blades included for North America, Continental Europe & UK

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -10 to 70 deg. C / 14 to 158 deg. F

  • Humidity

    Up to 95% non-condensing

  • Enclosure

    ABS fire retardant plastic

  • Regulatory

    FCC/CE, RoHS

  • Dimensions

    6 x 4.25 x 1.50" / 15.24 x 10.80 x 3.81cm

  • Weight

    2lbs / 0.91kg

Designed For Use With:

  • Muxlab

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Balun Receiver

It's time to experience the innovative and high-quality performance of the Active VGA/Audio Balun Receiver with Power Supply. This reliable and durable device, designed to work seamlessly with the MuXLab Active VGA Audio Transmitter (500146), enables VGA and stereo or digital audio signals to be received via cost-efficient unshielded copper twisted cable in a point-to-point configuration.

This user-friendly balun receiver is not just a device, but a solution that converts a CCTV RJ45 video signal into a VGA signal, making it compatible with computers or other devices equipped with a VGA input. Its unique capability to transform a differential signal, such as a CCTV RJ45 signal, into a single-ended signal, like a VGA signal, sets it apart from the competition.

With its compatibility with the Muxlab brand and its CCTV RJ45 to 3.5mm phono and CCTV RJ45 to VGA capabilities, this Active VGA/Audio Balun Receiver is a versatile and essential tool for those seeking to optimize their audio and video setup. Experience the difference today with this innovative solution for signal conversion.

Muxlab Balun Receiver Features

  • High-quality Active VGA/Audio Balun Receiver with Power Supply for optimal signal conversion
  • Compatible with MuXLab Active VGA Audio Transmitter (500146) for seamless operation
  • Efficiently receives VGA and stereo or digital audio signals via unshielded copper twisted cable
  • Converts CCTV RJ45 video signal into a VGA signal for use with VGA-equipped devices
  • Reliable and durable construction for long-lasting performance
  • User-friendly design with CCTV RJ45 to 3.5mm phono and CCTV RJ45 to VGA capabilities

Key Features

  • Extend VGA signals up to 1000ft with this Active VGA/Audio Balun Receiver, perfect for large venues.
  • Enjoy crystal-clear audio with the integrated stereo and digital audio support on this receiver.
  • This Muxlab receiver supports up to 1920 x 1200 resolution, ensuring a sharp, detailed display.
  • Easy setup with standard Cat 5e/6 cables makes this VGA balun receiver a breeze to install.
  • Use with PCs, laptops, & projectors; this VGA receiver offers broad device compatibility.
  • Fine-tune image quality with brightness and sharpness adjustments on the VGA balun receiver.

What's in the box:

  • Muxlab Active VGA/Audio Balun Receiver with Power Supply
  • Muxlab 2 Year Warranty
