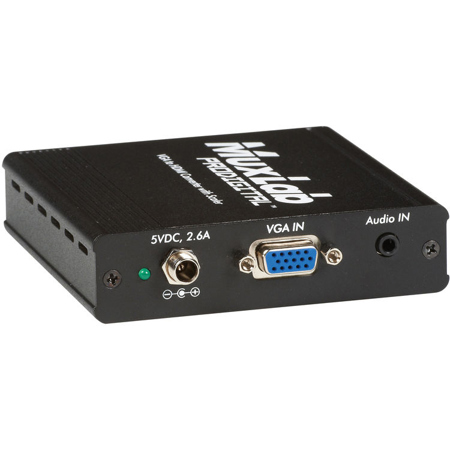

Muxlab VGA to HDMI Converter with Scaler
See all Muxlab items

Muxlab VGA to HDMI Converter with Scaler

SKU: ML500149
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What resolutions does the VGA to HDMI Converter with Scaler support?

The converter supports a wide range of HD and PC resolutions up to 1080p or WUXGA, providing flexibility for various display requirements.

Can the VGA to HDMI Converter with Scaler be used with gaming consoles?

Yes, the converter is compatible with a variety of devices, including gaming consoles, allowing for a versatile connection to a single display.

Does this converter also transmit audio signals?

Absolutely, the VGA to HDMI Converter with Scaler converts analog stereo audio input to digital format and embeds it into the HDMI output as 2-Channel LPCM.

How do I adjust the output resolution using this converter?

The device includes a resolution button that lets you select and adjust the output resolution to achieve the best picture quality for your display.

Is this converter easy to set up for someone who is not tech-savvy?

Yes, the converter features a compact and easy-to-use design, making it accessible for users of all technical abilities to connect and enjoy high-quality video and audio.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab VGA to HDMI Converter Specifications

  • Environment

    HDMI 1.3

  • Devices

    Plasma, projectors, monitors, TV, PC, laptops, servers

  • Transmission

    Transparent to the user

  • Applications

    Corporate Boardrooms
    Classrooms, Auditoriums and lecture theatres
    Training rooms
    Training Facilities
    Meeting rooms
    Videoconference rooms

  • Video Resolution

    PC: VGA, SVGA, XGA, SXGA, UXGA,WXGA,WSXGA, WUXGA
    SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p

  • Audio Bandwidth

    20Hz to 20KHz

  • Audio Impedance

    >10Ohms

  • Audio SNR

    >70dB at 20Hz to 20KHz

  • Signals

    HDMI 1.3a protocol and HDCP

  • Connectors

    1x VGA HD-15 input receptacle
    1x Audio input 3.5mm Stereo Jack
    1x HDMI output receptacle
    1x Mini USB Service port
    1x 2.1mm barrel locking power connector

  • Power Supply

    110-240V/5VDC power supply with interchangeable blades

  • LEDs

    1x Power LED (green)

  • Push buttons

    2x Push-buttons for Auto Adjust and Resolution settings

  • Power Consumption

    4.6 W

  • Enclosure

    Metal

  • Chassis Style

    Ruggedized Aluminum Extrusion

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Dimensions

    4.02 x 4.02 x 0.98" / 10.21 x 10.21 x 2.49cm

  • Weight

    1.43lbs / 0.65kg

  • UPC Code

    627699001493

About Muxlab VGA to HDMI Converter

The VGA to HDMI Converter with Scaler is designed to scale analog video from PC input source to digital HDMI output of wide-range HD and PC resolutions up to 1080p or WUXGA. Besides video scaling, the device can convert analog stereo audio input to digital format and embed it to HDMI output as 2-Channel LPCM. This unit has a comprehensive resolution button that allows user to select a variety of output resolutions and adjust for best picture quality.

Muxlab VGA to HDMI Converter Features

  • HDMI and DVI 1.0 Compliant
  • Scales many PC resolutions to many HD or PC resolutions
  • Solves odd VGA resolutions to display on a fixed HDMI panel
  • Support high resolution output
  • PC resolutions supported: VGA, SVGA, XGA, SXGA, UXGA,WXGA,WSXGA, WUXGA
  • SD/HD resolutions supported: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
  • Automatically detects the factory settings of the connected display and outputs the corresponding resolution and refresh rate, when the NATIVE resolution is selected
  • Supports stereo analog input with PC video to HDMI output
  • Supports firmware upgrading via USB
  • Powered by local 5VDC power supply with locking connector
  • Elegant Aluminum enclosure designed for ruggedness and better cooling

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HDMI and DVI 1.0 Compliant
  • Support high resolution output
  • PC resolutions supported
  • SD/HD resolutions supported
  • Supports stereo analog input

What's in the box:

  • Muxlab VGA to HDMI Converter with Scaler
  • Power Adapter 5VDC/2.6A with Interchangeable Blades
  • Installation Guide
  • Muxlab 2 Year Warranty
