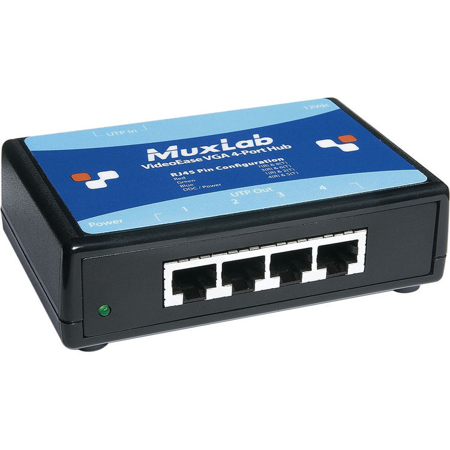

Muxlab VGA 1x4 Distribution Hub, 4 Ports, 220-240V
See all Muxlab items
25% Off

Muxlab VGA 1x4 Distribution Hub, 4 Ports, 220-240V

SKU: ML500151 MFR: 500151
Be the first to review this itemAsk a Question
$330.00
$440.00
Save: $110 (25%)
OR
$55/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Distribute VGA signals to 4 displays with this reliable Muxlab distribution hub.
  • Achieve high resolution video (1920x1440) across multiple screens using Cat5/6 cable.
  • Use in boardrooms, classrooms, or retail for effective multi-screen presentations.
  • Enjoy easy setup and transparent operation with this VGA distribution amplifier.
  • Extend VGA signals up to 1000' with low latency, perfect for large installations.
  • Supports PCs, laptops, and various displays with ground loop isolation on every port.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab Distribution Hub Specifications

  • Environment

    VGA. VESA VP&D 1.0, VIP ver 2.0. DDC1 and DDC1

  • Devices

    PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors

  • Transmission

    Transparent to the user

  • Bandwidth

    Up to 280 MHz (1920 x 1440 resolution), 1080p

  • Applications

    Digital signage
    Boardroom systems
    Multi-room systems
    Classroom training
    Retail systems
    Electronic billboards
    Electronic signs
    Video kiosks
    Point-of-sale displays
    Instore video

  • Impedance: Video

    Coax: 75Ohms
    UTP: 100Ohms

  • Connectors

    VGA Input (Cat5/6): 1x RJ45 shielded VGA Output (Cat5/6): 4x RJ45 shielded

  • DDC Compliance

    Transmits DDC control signals on RJ45 pins 4&5 for Plug-and-Play operation

  • Remote Power

    Transmits remote DC power on RJ45 pins 4&5

  • Maximum Distance

    Remote Power:
    Source to Hub: 150' (46 m)
    Hub to Display: 150'(46 m)

    VGA Source to Display:
    640 x 480 (VGA): 1000' (305 m)
    800 x 600 (SVGA): 1000' (305 m)
    1024 x 768 (XGA): 1000' (305 m)
    1280 x 1024 (SXGA): 850" (260 m)
    1600 x 1200 (UXGA):800'(245m)
    1366 x 768 (WXGA):850' (260m)
    1680x1050 (WSXGA):850' (260m)
    1920x1200 (WUXGA): 600' (180m)

    Component Video:
    480i/p: 1000' (305 m)
    1080i: 850' (260 m)
    1080p: 600' (180 m)

  • RJ45 Pin Configuration

    Red: Pin 7 (R) Pin 8 (T)
    Green: Pin 3 (R) Pin 6 (T)
    Blue: Pin 1 (R) Pin 2 (T)
    DDC/Remote Power: Pin 4 (R)Pin 5 (T) (Reverse Polarity Sensitive Use EIA/TIA 568A or 568B straight-through wiring)

  • Gain Adjustment

    Gain control via DIP switches on receiver (factory default setting: all OFF)

  • LED Indicators

    Power: 1x Green LED Sync: 1x Green LED per port.

  • Cable

    Category 5/6 or better twisted pair cable

  • Ground Loop Isolation

    Ground loop isolation on every port, 2VDC to +3VDC between PC and display ground

  • Power Supply

    220-240V/12VDC/1.25A, Detachable North American or Continental Europe AC power cord included, 12VDC power jacks

  • Enclosure

    ABS fire retardant plastic

  • Regulatory

    FCC/CE, RoHS

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -10 to 70 deg. C / 14 to 158 deg. F

  • Humidity

    Up to 95% non-condensing

  • Dimensions

    4.5 x 3.8 x 1.25" / 11.43 x 9.65 x 3.18cm

  • Weight

    2lbs / 0.91kg

About Muxlab Distribution Hub

What sets the VGA 1x4 Distribution Hub apart is its ability to efficiently distribute a single VGA (RGBHV) source to as many as four displays using cost-effective Cat5/6 cabling. This high-quality, durable hub is designed to work seamlessly with the Active VGA Balun II Kit (500140) and Active VGA Balun II Receivers (500142), ensuring reliable and consistent signal distribution.

To support one display, at least one (1) 500140 is necessary. However, the versatility of this user-friendly hub allows for the addition of up to three (3) more 500142 receivers to support three additional displays. This makes it an ideal solution for environments like classrooms, conference rooms, and control centers where multiple displays are needed to project the same video signal.

With its compatibility with both VGA and RGB signals, this efficient distribution hub offers a convenient and versatile solution for users needing to connect a variety of devices using different signal types. Whether you're looking to connect multiple devices to a single source or distribute video signals to different outputs, the VGA 1x4 Distribution Hub is a reliable choice.

Muxlab Distribution Hub Features

  • Plug and Play - DDC1 and DDC2 Compliant
  • Remote power up to 150' (46 m)
  • Modular RJ45 on input and output
  • Supports up to 1920 x 1440, 1080p
  • Ground loop isolation on every port
  • Works in conjunction with 500140 and 500142

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Distribute VGA signals to 4 displays with this reliable Muxlab distribution hub.
  • Achieve high resolution video (1920x1440) across multiple screens using Cat5/6 cable.
  • Use in boardrooms, classrooms, or retail for effective multi-screen presentations.
  • Enjoy easy setup and transparent operation with this VGA distribution amplifier.
  • Extend VGA signals up to 1000' with low latency, perfect for large installations.
  • Supports PCs, laptops, and various displays with ground loop isolation on every port.

What's in the box:

  • Muxlab VGA 1x4 Distribution Hub
  • External Power Supply
  • AC Power Cord
  • Installation Guide
  • Muxlab 2 Year Warranty
