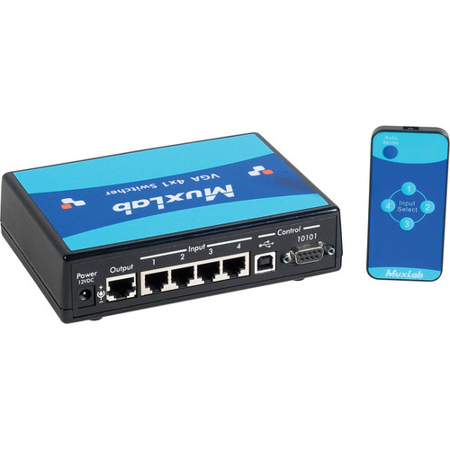

Muxlab VGA 4x1 Switcher, 110V

SKU: ML500160 MFR: 500160
Earn VIP Reward Points

Key Features

  • Seamless VGA switching: Effortlessly switch between 4 VGA sources with this switcher.
  • High resolution support: Enjoy crystal-clear images with resolutions up to 1920x1440.
  • Extended transmission: Transmit VGA signals up to 1000ft with Cat5e/6 cabling.
  • Versatile control options: Control via IR remote, USB, RS232, or manual selection.
  • Plug-and-play setup: Easy setup with DDC control signals for immediate operation.
  • Ideal for presentations: Perfect for classrooms, boardrooms, and digital signage.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab VGA Switcher Specifications

  • Environment

    VGA. VESA VP&D 1.0, VIP ver 2.0 and DDC1

  • Devices

    PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors

  • Transmission

    Transparent to the user

  • Applications

    Digital signage
    Boardroom systems
    Multi-room systems
    Classroom training
    Retail systems
    Electronic billboards
    Electronic signs
    Video kiosks
    Point-of-sale displays
    Instore video

  • Bandwidth

    Up to 280 MHz (1920 x 1440 resolution), 1080p

  • Impedance: Video

    Coax: 75Ohms
    UTP: 100Ohms

  • Connectors

    VGA Input (Cat5E/6): 4x RJ45 shielded
    VGA Output (Cat5E/6): 1x RJ45 shielded USB and RS232 connectors for switcher control

  • DDC Control

    Transmits DDC control signals on RJ45 pins 4&5 for Plug-and-Play operation

  • Remote Power

    Transmits remote DC power on RJ45 pins 4&5

  • Maximum Distance

    Remote Power:
    Transmitter Balun to Switcher: 150' (46 m)
    Switcher to Receiver Balun: 150'(46 m)

    VGA Source to Display:
    640 x 480 (VGA): 1000' (305 m)
    800 x 600 (SVGA): 1000' (305 m)
    1024 x 768 (XGA): 1000' (305 m)
    1280 x 1024 (SXGA): 850" (260 m)
    1366 x 768 (WXGA): 850' (260 m)1680 x 1050 (WSXGA): 850' (260 m)
    1600 x 1200 (UXGA): 800' (245 m)
    1920 x 1200 (WUXGA): 600' (180 m)

  • RJ45 Pin Configuration

    Red: Pin 7 (R) Pin 8 (T)
    Green: Pin 3 (R) Pin 6 (T)
    Blue: Pin 1 (R) Pin 2 (T)
    DDC/Remote Power: Pin 4 (R)Pin 5 (T) (Reverse Polarity Sensitive Use EIA/TIA 568A or 568B straight-through wiring)

  • Gain Adjustment

    Gain compensation rotary switch and a potentiometer for equalization

  • Switcher Control

    Manual, IR Remote, USB/RS232, Includes USB flash drive containing port control software

  • LED Indicators

    Auto: 1x Amber LED
    Power: 1x Green LED
    Link: 4x Amber LEDs
    Select: 4x Green LEDs

  • Cable

    Cat 5e/6 unshielded twisted pair (or better)

  • Ground Loop Isolation

    Ground loop isolation on every port, 2VDC to +3VDC between PC and display ground

  • Power Supply

    110V/12VDC/3.35A
    Detachable AC power cords included
    12VDC power jacks

  • Enclosure

    ABS fire retardant plastic

  • Regulatory

    FCC Class A, CE, RoHS

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -10 to 70 deg. C / 14 to 158 deg. F

  • Humidity

    Up to 95% non-condensing

  • Dimensions

    6.00 x 4.25 x 1.50" / 15.24 x 10.80 x 3.81cm

  • Weight

    2.4lbs / 1.09kg

About Muxlab VGA Switcher

You can effortlessly manage and display your video content with the high-quality VGA 4x1 Switcher, designed to facilitate seamless switching between up to four VGA (RGBHV) sources on a single display. This user-friendly switcher is an ideal solution for environments that require a centralized control of video sources, such as digital signage, boardrooms, multi-room systems, classroom training, retail systems, electronic billboards, signs, video kiosks, and point-of-sale displays.

Crafted for durability and reliable performance, the VGA 4x1 Switcher operates efficiently over Cat5e/6 cable, offering a more cost-effective and streamlined cabling solution. Its compatibility with the Active VGA Balun II (500140) and Active VGA Balun II Transmitter (500141) ensures a flexible and scalable setup. To accommodate one source and one display, at least one 500140 is necessary, while up to three additional 500141 units can be integrated to connect three more video sources.

This versatile switcher is engineered to support a variety of VGA, RGB, Ethernet, RS-232, and USB input sources, making it a highly adaptable choice for any setting that demands high-quality video distribution. Whether you're looking to enhance your home theater experience, engage students in a classroom, or captivate customers with dynamic in-store video, the VGA 4x1 Switcher stands as a reliable and cost-effective solution that meets a broad range of multimedia needs.

Muxlab VGA Switcher Features

  • Auto and Manual switching modes
  • Control via: manual, IR, RS232 and USB
  • Plug and Play - DDC Compliant
  • Remote power up to 150'(46 m)
  • Modular RJ45 on input and output
  • Supports up to 1920 x 1440, 1080p
  • Includes GUI software and IR remote
  • Works in conjunction with 500140/141/142
  • May be cascaded with VGA 1x4 Hub (500150)

Key Features

  • Seamless VGA switching: Effortlessly switch between 4 VGA sources with this switcher.
  • High resolution support: Enjoy crystal-clear images with resolutions up to 1920x1440.
  • Extended transmission: Transmit VGA signals up to 1000ft with Cat5e/6 cabling.
  • Versatile control options: Control via IR remote, USB, RS232, or manual selection.
  • Plug-and-play setup: Easy setup with DDC control signals for immediate operation.
  • Ideal for presentations: Perfect for classrooms, boardrooms, and digital signage.

What's in the box:

  • Muxlab VGA 4x1 Switcher
  • External Power Supply
  • AC Power Cord
  • IR Remote Control
  • Battery for IR Remote Control
  • USB Type A-Type B Cable
  • Memory Key with GUI Software
  • Installation Guide
  • Muxlab 2 Year Warranty
