37% Off

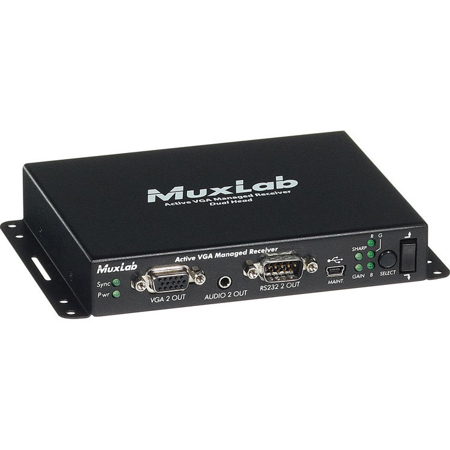

Muxlab Active VGA Managed Receiver, Dual Head

SKU: ML500174 MFR: 500174
Earn VIP Reward Points

Key Features

  • Extend your display reach with this Active VGA Receiver, up to 1000ft via Cat5e/6 cable.
  • Enjoy high-resolution video up to 1080p/1920x1200 with our reliable VGA managed receiver.
  • Connect PCs, laptops, & monitors easily using this receiver's versatile VGA connectivity.
  • Simplify setup with the Active VGA Receiver's user-friendly, transparent transmission.
  • Ensure clear signal quality with integrated gain and sharpness adjustments on the receiver.
  • Durable design ensures long-term reliability for your surveillance and security applications.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$44.99

2 Year

$79.99

3 Year

$119.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Receiver Specifications

  • Environment

    VGA, analog stereo audio, RS232

  • Devices

    PCs, laptops, CRT monitors, LCD monitors, plasma screens, touchscreens

  • Transmission

    Transparent to the user

  • Maximum Resolution

    1080p
    1920x1200

  • Connectors: Front Panel

    VGA 2 Out: 1x HD15F
    Audio 2 Out: 1x 3.5 mm stereo jack
    RS232 2 Out: 1x DB9M
    Maintenance: 1x Mini USB

  • Connectors: Rear Panel

    Power: 1x power jack
    VGA 1 Out: 1x HD15F
    Link In: 1x RJ45S
    RS232 1 Out: 1x DB9M
    Audio 1 Out: 1x 3.5 mm stereo jack
    Cascade Out: 1x RJ45S

  • Maximum Distance

    Up to 1920x1200 at 60Hz; 1080P (depending on the cable length)
    Up to 1000' / 304.80m
    Dispatcher to receiver / Repeater Hub to receiver

  • RJ45 Pin Configuration

    Red: Pin 7 (R), Pin 8 (T)
    Blue: Pin 1 (R), Pin 2 (T)
    Green: Pin 4 (R), Pin 5 (T)
    COM: Pin 3 (R), Pin 6 (T)

  • LED Indicators

    Sync: 1x Green LED
    Power: 1x Green LED
    Sharpness: 1x Green LED
    Gain: 1x Green LED
    R: 1x Green LED
    G: 1x Green LED
    B: 1x Green LED

  • Cable

    Cat5e/6 unshielded twisted pair (or better)

  • Power Supply

    110-240 V / 12 VDC / 0.5 A power jacks

  • Power Consumption

    6 W

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to 185 deg. F / -20 to 85 deg. C

  • Humidity

    Up to 95% non-condensing

  • Regulatory Approvals

    FCC, CE-EMC Directive 89 / 336 / EE, RoHS, WEEE

  • Dimensions

    Hybrid VESA 75 mm and 100 mm mounting surface
    Enclosure: 5.68 x 4.45 x 1.04" / 14.43 x 11.30 x 2.64cm

  • Weight

    2lbs / 0.91kg

Designed For Use With:

  • Muxlab

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Receiver

When seeking a durable and high-quality solution for signal conversion, look no further than the Active VGA Managed Receiver, Dual Head from Adorama. This innovative device is designed to seamlessly convert CCTV RJ45 signals into VGA signals, making it an essential tool for those utilizing CCTV cameras and digital video recorders.

Engineered with a user-friendly interface, this managed receiver is compatible with a broad spectrum of devices, enhancing its versatility across various applications. Its standout feature is the dual head design, a unique attribute that enables users to connect two monitors or displays to a single device simultaneously. This feature not only increases productivity but also boosts efficiency by facilitating the viewing of multiple information sources at once.

Reliable and robust, the Active VGA Managed Receiver, Dual Head is more than just a signal converter. It's a comprehensive solution for those seeking to optimize their video and audio equipment setup. Whether you're managing a complex security system or setting up a multimedia workstation, this device is designed to meet your needs while ensuring a smooth and high-quality signal transmission.

Muxlab Receiver Features

  • High-quality Active VGA Managed Receiver, ideal for CCTV and DVR applications
  • Innovative dual head design for simultaneous connection to two monitors or displays
  • User-friendly interface, compatible with a wide range of devices
  • Reliable signal conversion from CCTV RJ45 to VGA
  • Enhances productivity and efficiency by allowing viewing of multiple information sources
  • Durable and robust construction for long-lasting use in various settings

Key Features

  • Extend your display reach with this Active VGA Receiver, up to 1000ft via Cat5e/6 cable.
  • Enjoy high-resolution video up to 1080p/1920x1200 with our reliable VGA managed receiver.
  • Connect PCs, laptops, & monitors easily using this receiver's versatile VGA connectivity.
  • Simplify setup with the Active VGA Receiver's user-friendly, transparent transmission.
  • Ensure clear signal quality with integrated gain and sharpness adjustments on the receiver.
  • Durable design ensures long-term reliability for your surveillance and security applications.

What's in the box:

  • Muxlab Active VGA Managed Receiver
  • Muxlab 2 Year Warranty
