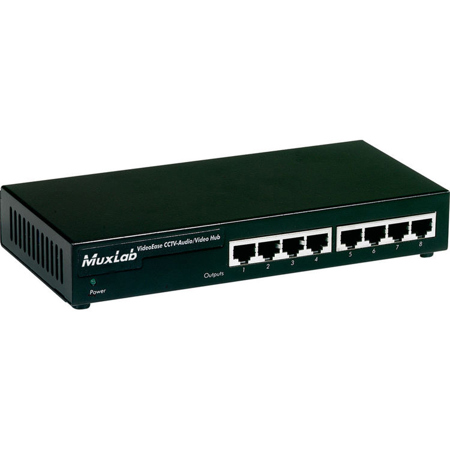

Muxlab VideoEase Audio-Video Distribution Hub, 220-240V, Europe
See all Muxlab items
27% Off

Muxlab VideoEase Audio-Video Distribution Hub, 220-240V, Europe

SKU: ML500201 MFR: 500201
Be the first to review this itemAsk a Question
$472.80
$650.00
Save: $177.2 (27%)
OR
$79/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Distribute audio/video signals with this Muxlab hub, ensuring top-notch clarity.
  • Achieve reliable video distribution across multiple displays using Cat 5/6 twisted pair.
  • This audio-video distribution hub supports DVD, PC video servers, and LCD displays.
  • Enjoy transparent transmission; this video distribution amplifier is easy to integrate.
  • Extend composite video up to 2200' and S-Video up to 1000' with ease via Cat 5/6.
  • Minimize signal loss with a video bandwidth of DC to 8 MHz for optimal performance.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab VideoEase Audio-Video Distribution Hub, 220-240V, Europe Specifications

  • Compatibility

    Baluns: 500000, 500001, 500009, 500012, 500016, 500017, 500019, 500021, 500027, 500027, 500038, 500039

  • Environment

    Composite video (NTSC, PAL), S-Video, line level analog audio

  • Devices

    DVD, cable boxes, PC video servers, matrix switchers, monitors, projectors, plasmas, LCD displays and other composite video and analog audio equipment

  • Transmission

    Transparent to the user

  • Impedance

    Source Impedance Requirements:
    Video Out: 75 Ohms
    Audio Out: 600Ohms max.

    Destination Impedance Requirements:
    Video In: 75 Ohms
    Audio In: 600 Ohms min.

    Hub Impedance:
    Video In: 100 ohm balanced
    Audio In: 10 kOhms min. balanced
    Video Out: 100 Ohms balanced
    Audio Out: 600 ohm balanced

  • Bandwidth

    3 dB Bandwidth
    Video: DC to 8 MHz
    Audio: 50 Hz to 16 kHz

  • Differential

    Max. Differential Input
    Video: 0.55 Vp-p
    Audio: .50 Vp-p

    Max. Differential Output
    Video: 0.55 Vp-p
    Audio: .50 Vp-p

  • Insertion Loss

    Video: 0 dB max. at 4 MHz
    Audio: 1 dB max. at 1 kHz (differential)

  • Return Loss

    Video Return Loss: 24 dB minimum

  • Common Mode Rejection

    Video: Greater than 40 dB over the frequency range
    Audio: Greater than 60 dB over the frequency range (Input: balanced. Output: unbalanced)

  • Crosstalk

    Crosstalk Immunity: 60 dB minimum over the frequency range

  • Maximum Distance

    Composite Video Color: 2200' (670m)
    Composite Video B&W: 2500' (762m)
    S-Video: 1000' (305m) (via Cat 5/6 Twisted Pair - UTP)

  • Cable

    UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100Ohms at 1 MHz, Cat 3 or better

  • Connectors

    Source Input: 1 RJ45 on rear panel
    Cascade Output: 1 RJ45 on rear panel
    Distribution Outputs: 8 RJ45 on front panel

  • Pins

    Video 1: Ring 7 Tip 8
    Audio 1: Ring 1 Tip 2
    Video 2: Ring 4 Tip 5
    Audio 2: Ring 3 Tip 6

  • Diagnostics

    Power LED - green

  • Power Supply

    220/240V DC: +/- 12VDC, 5W total max.

  • Power Connector

    5-pin DIN; pin 1 GND, pin 2 GND, pin 4 -12V, pin 5 +12V

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95%

  • Compliance

    FCC, CE-EMC Directive 89/336/EEC

  • Dimensions

    8.5 x 4 x 1.3" / 21.59 x 10.16 x 3.30cm

  • Weight

    2.1lbs / 0.95kg

About Muxlab VideoEase Audio-Video Distribution Hub, 220-240V, Europe

It's time to revolutionize your audio-visual experience with the VideoEase Audio-Video Distribution Hub, a high-quality and reliable product from the reputable brand, Muxlab. This advanced and innovative hub is designed to distribute audio and video signals from multiple sources to multiple destinations, making it an ideal solution for both commercial and residential settings.

The VideoEase Audio-Video Distribution Hub can accommodate up to two composite or one S-Video signal, and up to two line-level analog audio signals. These signals can be distributed to up to eight destinations using cost-efficient Cat5/6 cabling, making this hub a practical solution for networking multiple devices.

One of the standout features of this distribution hub is its scalability. The hub can be cascaded to support up to seventy-two displays, providing a versatile solution for large-scale audio-visual setups. It is compatible with all Muxlab baluns that support composite video, S-Video, and analog audio, including the 500000, 500001, 500012, 500016, and 500017 models.

Whether you're setting up a boardroom system, a classroom training environment, or a digital signage network, the VideoEase Audio-Video Distribution Hub is the perfect tool to streamline your audio-visual distribution. Experience the convenience and cost-effectiveness of this durable and high-quality product, designed specifically for the European market with a 220-240V specification.

Muxlab VideoEase Audio-Video Distribution Hub, 220-240V, Europe Features

  • Can distribute audio-video to eight (8) displays
  • Cascadable up to 64 displays via Looping Output
  • Composite video up to 2200' (670m) in color via Cat 5 twisted pair
  • S-Video up to 1000' (300m) in color via Cat 5 twisted pair
  • Supports up to 2 video and 2 audio channels
  • Pin-compatible with baluns 500000, 500009, 500001, 500012, 500016, 500017
  • Supports NTSC and PAL

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Distribute audio/video signals with this Muxlab hub, ensuring top-notch clarity.
  • Achieve reliable video distribution across multiple displays using Cat 5/6 twisted pair.
  • This audio-video distribution hub supports DVD, PC video servers, and LCD displays.
  • Enjoy transparent transmission; this video distribution amplifier is easy to integrate.
  • Extend composite video up to 2200' and S-Video up to 1000' with ease via Cat 5/6.
  • Minimize signal loss with a video bandwidth of DC to 8 MHz for optimal performance.

What's in the box:

  • Muxlab VideoEase Audio-Video Distribution Hub
  • Muxlab 2 Year Warranty
