32% Off

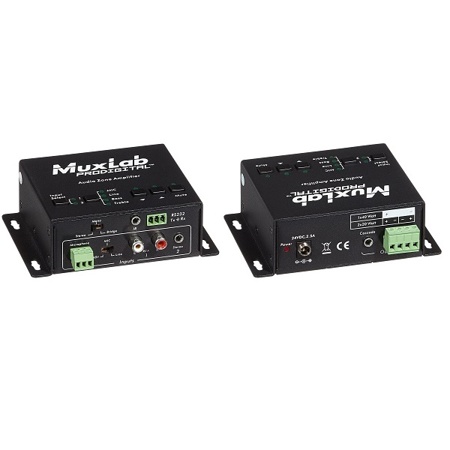

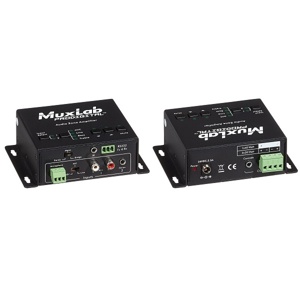

Muxlab Audio Zone Amplifier for Hi-Fi Audio Baluns and Audio Matrix Switch, 2x 20W, United Kingdom

SKU: ML500216UK MFR: 500216-UK
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Muxlab audio zone amplifier, ideal for Hi-Fi setups.
  • Boost your audio with 2x20W power output, perfect for small to medium-sized listening spaces.
  • Multiple input options including RCA, 3.5mm, and screw-type connectors offer versatile connectivity.
  • Achieve optimal impedance match for clear audio, enhancing your overall listening experience.
  • Durable metal enclosure ensures long-lasting performance for reliable audio distribution.
  • Enjoy low noise audio amplification, delivering pristine sound for critical listening applications.
See More Product Details
Special Order?Estimated to Ship: 08/13/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Audio Zone Amplifier Specifications

  • Compatibility

    Line level Analog Audio

  • Environment

    Audio Distribution

  • Power Output

    20W RMS maximum per channel into 4 ohm

  • Front Control

    Input select, Volume, Bass, Treble, Mute

  • Power Requirement

    60W max, 24VDC 2.5A

  • Gain

    26dB

  • Frequency

    20Hz to 20KHz

  • Connectors

    Input:
    2x RCA (L/R) connectors
    1x 3.5mm stereo connector
    3-position Screw type connector for microphone
    3-position Screw type connector for RS232
    1x 3.5mm IR Sensor connector
    Output:
    4-position Screw type connector for speakers
    1x Loopout 3.5mm stereo connector
    Power input: 1x locking power jack, 2.0mm

  • Control

    Pushbuttons, RS232, and Optional IR

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -40 to 85 deg. C / -40 to 185 deg. F

  • Humidity

    Maximum 90% (non-condensing)

  • Enclosure

    Metal

  • Dimensions

    4.9 x 3.5 x 1.5" / 12.45 x 8.89 x 3.81cm

  • Weight

    1lbs / 0.45kg

About Muxlab Audio Zone Amplifier

The Muxlab Audio Zone Amplifier is a Class D digital amplifier that allows one (1) analog source to be distributed to a pair of 20W per channel stereo speakers within a zone. The Audio Zone Amplifier can be cascaded infinitely across multiple zones to give a multi-room audio solution. The Audio Zone Amplifier features two (2) stereo analog audio input lines, microphone input with 48V phantom supply and two (2) 20W, 4-ohm speaker outputs or one (1) 40W, 8-ohm speaker output. Volume and source control via the front push buttons or via IR using the optional IR remote kit.

Muxlab Audio Zone Amplifier Features

  • Two Analog Stereo Audio Inputs
  • Microphone input with 48V phantom supply
  • 20W per channel into 4Ohms
  • Cascadable to further amplifiers
  • Compatible with Muxlab Hi-Fi Audio Baluns and Audio Matrix Switch
  • Volume control
  • Ground loop isolation
  • Controllable via pushbuttons, RS232 and optional IR

Key Features

  • Experience superior sound quality with this Muxlab audio zone amplifier, ideal for Hi-Fi setups.
  • Boost your audio with 2x20W power output, perfect for small to medium-sized listening spaces.
  • Multiple input options including RCA, 3.5mm, and screw-type connectors offer versatile connectivity.
  • Achieve optimal impedance match for clear audio, enhancing your overall listening experience.
  • Durable metal enclosure ensures long-lasting performance for reliable audio distribution.
  • Enjoy low noise audio amplification, delivering pristine sound for critical listening applications.

What's in the box:

  • Muxlab Audio Zone Amplifier
  • 2x Pluggable Terminal Blocks
  • RS232 Cable
  • 24VDC 2.5A United Kingdom Power Adapter
  • Power Cord
  • 4x Plastic Feet
  • User Manual
  • Muxlab 2 Year Warranty
