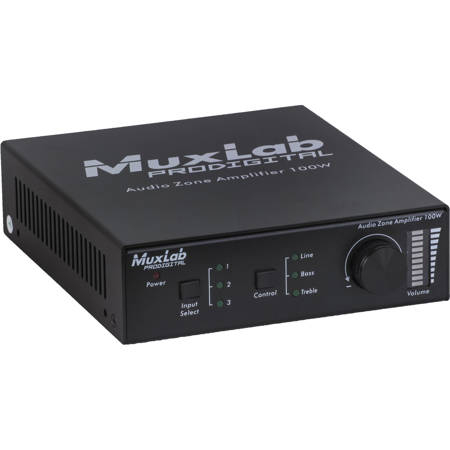

Muxlab 2-Channel 100W Class D Audio Zone Amplifier

SKU: ML500217 MFR: 500217
Be the first to review this itemAsk a Question
$546.00
OR
$91/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this 2-channel amplifier, perfect for home or small venue use.
  • This 100W Class D audio zone amplifier delivers robust power output with exceptional energy efficiency.
  • Easily connect your audio system using versatile input options, including RCA, 3.5mm, and Optical TosLink.
  • Customize your sound with EQ controls, optimizing audio for speakers in any environment with this amplifier.
  • Enjoy seamless integration with MuxLab analog audio products, ensuring top-tier compatibility and performance.
  • Built for durability, this compact amplifier features a metal enclosure and includes rack-mounting ears.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$54.99

2 Year

$94.99

3 Year

$149.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500217 Specifications

  • Environment

    Analog Audio

  • Devices

    Audio System, Line Output, Microphone, Speaker

  • Compatibility

    Compatible with MuxLab Analog Audio Products

  • Transmission

    Transparent to The User

  • Frequency Response

    20Hz to 20KHz

  • CMMR / SNR

    >75dB @ 20Hz-20KHz / 80dB at Maximum Output

  • Input Impedance

    >10KOhm

  • Damping Coefficient

    >100

  • Stereo Channel Separation

    >75dB @ 20HZ to 20KHz

  • THD + Noise

    1% @ 1KHz, 50W

  • Voltage Gain

    25 dB

  • Power Output

    1x100 Watts (@ 4Ohm) or 2x50 Watts (@ 8Ohm)

  • Connectors

    Two (2) RCA Input Jacks for L+R audio input
    Two (2) 3.5mm Jacks; one input & one cascade output
    One (1) 4-pin terminal block (5.08mm) for the speakers
    One (1) Optical TosLink for the Digital Audio
    One (1) IR Sensor 3.5mm stereo Jack
    One (1) RJ45 Shielded for the Ethernet LAN connection
    One (1) 3-pin terminal block (3.81mm) for RS232
    One (1) 4-pin DIN Jack for Power

  • Power Supply

    One (1) 110-240VAC to 33VDC power supply

  • Temperature

    Operating: 32 Degree to 122 Degree F (0 Degree to 50 Degree C)
    Storage: -4 Degree to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    5.83 x 1.73 x 6.50" (148 x 44 x 165mm)

  • Weight

    1.59 lbs (720g)

About Muxlab 500217

The MuxLab Audio Zone Amplifier 100W is a Class D amplifier which allows analog or digital sources to feed a pair of 50 W per channel speakers. When set in Bridge mode and paired with the MuxLab 70V Transformer unit (500755-70V), the system is compatible with distributed 70V speaker systems over longer distances and supporting daisy chain configurations. The device may be controlled locally via push buttons and a knob, and remotely via RS232, IR and an IP webserver interface.

The Audio Zone Amplifier features two analog 2CH audio inputs (RCA & 3.5mm) & one (1) PCM digital optical input (TosLink), along with two 50W 8 Ohm speaker outputs or one 100W 4 Ohm speaker output (terminal block).

Applications
Audio Distribution Systems, Meeting & Classroom applications, Hospitality industry, Digital signage, Ceiling and shelf speakers.

Muxlab 500217 Features

  • Two Analog 2CH Audio Inputs and One Digital Optical Input
  • Supports 2x50 Watts into 8 Ohm, and 1x100 Watts (Bridge mode) into 4 Ohm
  • Cascadable Allowing for Chaining Amplifiers
  • Compatible with MuxLab Hi-Fi Audio Baluns and Audio Matrix Switch (500210)
  • Compatible with MuxLab 70V Transformer (500755-70V) to Allow for Longer Distance Connections and Chaining of 70V Speaker Systems
  • Volume, Bass and Treble Control, with Mute
  • Controllable via push buttons, RS232, IR and IP webserver interface

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this 2-channel amplifier, perfect for home or small venue use.
  • This 100W Class D audio zone amplifier delivers robust power output with exceptional energy efficiency.
  • Easily connect your audio system using versatile input options, including RCA, 3.5mm, and Optical TosLink.
  • Customize your sound with EQ controls, optimizing audio for speakers in any environment with this amplifier.
  • Enjoy seamless integration with MuxLab analog audio products, ensuring top-tier compatibility and performance.
  • Built for durability, this compact amplifier features a metal enclosure and includes rack-mounting ears.

What's in the box:

  • Muxlab 2-Channel 100W Class D Audio Zone Amplifier
  • Pluggable 4-Position Terminal Blocks
  • RS232 Cable
  • 4A 33VDC Power Adapter
  • Remote Control
  • IR Sensor
  • Power Cord
  • 2x Detachable Mounting Ears
  • 4x Screws
  • 4x Plastic Feet
  • User Manual
  • Muxlab 2 Year Limited Warranty
