Muxlab Component Video Hub, 8 Ports, 110V
See all Muxlab items

Muxlab Component Video Hub, 8 Ports, 110V

SKU: ML500250
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What types of video sources can this Component Video Hub support?

This Component Video Hub can support a wide range of video sources, including computers, cameras, and gaming consoles.

How many devices can I connect to this Video Hub?

Our Component Video Hub features 8 ports, allowing you to connect up to eight devices simultaneously.

What is the power supply for this Component Video Hub?

This Component Video Hub operates on a 110V power supply.

What type of video resolution does this Component Video Hub support?

Our Component Video Hub supports 1080p resolution, allowing for high-definition video distribution.

Can the Component Video Hub distribute audio signals as well?

Yes, in addition to full component video (YPbPr/RGB) sources, this hub can also distribute digital or analog audio video sources.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab Component Video Hub, 8 Ports, 110V Specifications

  • Compatibility

    500000, 500002, 500009, 500020, 5000021, 500050, 500051, 500052, 500053 Baluns

  • Environment

    Component baseband video (YPbPr/RGB) and Digital or Mono Analog Audio

  • Devices

    DVD players, DVR, AV matrix switchers, DLP projectors, plasmas, monitors, home theatre

  • Applications

    Digital signage
    Boardroom systems
    Residential and commercial multi-display systems
    Classroom training
    Retail systems
    Electronic billboards
    Electronic signs
    Video kiosks
    Point-of-sale displays
    In-store video

  • Transmission

    Transparent to the user

  • 3dB Bandwidth

    Video: DC to 77 MHz
    Digital Audio: DC to 52MHz
    Analog Audio: 20 to 20kHz

  • Insertion Loss

    Video: -0.8 dB at 4 MHz
    Digital Audio: -1.26 dB at 4 MHz
    Analog Audio: 1 dB at 4 MHz (differential)

  • Video Return Loss

    -23dB at 4 MHz

  • Common Mode Rejection

    Video: Greater than 40 dB over the frequency range
    Digital Audio: Greater than 31.5 dB over the frequency range
    Analog Audio: Greater than 60 dB at 1 KHz; Greater than 40 dB over the frequency range
    (Input: balanced. Output: balanced)

  • Crosstalk Immunity

    -60 dB at 4 MHz

  • Total Harmonic Distortion

    Analog Audio: Less than 0.007% at 1KHz

  • Max. Distance

    via Cat 5 Twisted Pair (UTP)
    Component Video (YPbPr):
    480i/p: 1000' (305m)
    720p and 1080i: 500' (152m)
    Digital Audio: 600' (182m)
    Analog Audio: 3250' (990m)
    Measured between Source (i.e.: DVD) and Destination (i.e.: Monitor) with Hub placed anywhere between the source and destination

  • Cascadability

    Up to 2 levels

  • Ground Loop Isolation

    Ground loop isolation on every port

  • Cable

    UTP
    24 gauge or lower solid copper twisted pair wire impedance: 100Ohms at 1 MHz, Cat 3 or better

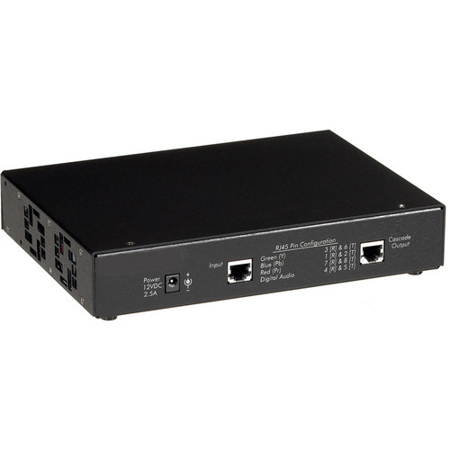

  • Connectors

    Source Input: 1x RJ45S on rear panel
    Looping Output: 1x RJ45S on rear panel

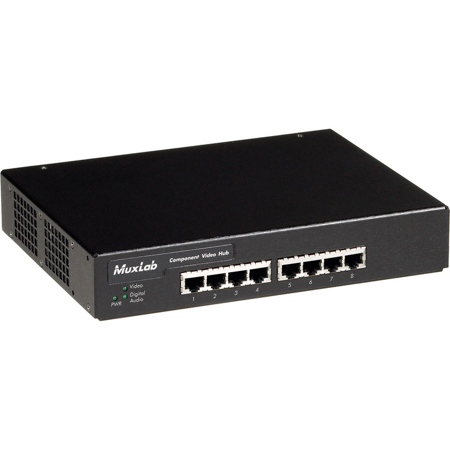

    Distribution Outputs: 16x RJ45S on front panel

  • RJ45 Pin Configuration

    Red (Pr) : Pins 7 [R] & 8 [T]
    Green (Y) : Pins 3 [R] & 6 [T]
    Blue (Pb) : Pins 1 [R] & 2 [T]
    Digital/Analog Audio : Pins 4 [R] & 5 [T] (Reverse Polarity Sensitive)

  • Configuration Switch

    Sets hub to digital or analog audio on fourth twisted pair, Factory default: analog audio

  • LED Diagnostics

    Power (green), Video Sync (green), Digital Audio Sync (green)

  • Power Supply

    External AC: 110V
    DC: 12VDC, 1.25A

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Compliance

    FCC, CE-EMC Directive 89/336/EEC, RoHS, WEEE

  • Dimensions

    9.12 x 6.75 x 1.75" / 23.16 x 17.15 x 4.45cm

  • Weight

    3.3lbs / 1.50kg

About Muxlab Component Video Hub, 8 Ports, 110V

When seeking a reliable and efficient solution for high-definition video distribution, look no further than our Component Video Hub. This high-quality, durable device is designed to handle full component video (YPbPr/RGB) sources, as well as digital or analog audio video sources. With its 8-port capacity, this hub allows for the seamless distribution of your video and audio signals to up to eight different destinations.

Engineered for user-friendly operation, this Component Video Hub is perfect for connecting a diverse range of video sources, including computers, cameras, and gaming consoles. Its 110V power supply ensures steady and uninterrupted performance, making it an ideal choice for both professional and personal use.

Whether you're setting up a multi-monitor display for gaming, broadcasting live video feeds, or simply connecting multiple devices to your home entertainment system, this Component Video Hub offers the flexibility and efficiency you need. Its ability to support 1080p resolution means you can enjoy high-definition video signals on multiple displays, such as monitors, TVs, or projectors.

Experience the convenience of cost-efficient cabling with our 8-port Component Video Hub, designed to deliver superior video quality and performance. Please note that the number of destinations may vary depending on the model, with the 500250 model supporting up to eight ports.

Muxlab Component Video Hub, 8 Ports, 110V Features

  • Modular RJ45 on input and output
  • Cascadable up to two levels
  • Supports 480i/p up to 1000' (305m) via Cat5
  • Supports 720p/1080i/p up to 500' (152m) via Cat 5
  • Supports digital or combined L/R analog audio channel on fourth twisted pair
  • Ground loop isolation on every port
  • Integrates seamlessly with Muxlab Video Ease baluns

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhance your video distribution with this 8-Port Component Video Hub for crystal-clear signals.
  • Easily distribute component video to multiple displays using reliable RJ45 connections.
  • This video distribution amplifier supports resolutions up to 1080i for high-quality viewing.
  • Perfect for digital signage, retail displays, and boardroom systems with multi-display setups.
  • Enjoy ground loop isolation on every port, ensuring a clean and stable video signal always.
  • Extend your video reach up to 500' for 720p/1080i, making it ideal for large installations.

What's in the box:

  • Muxlab Component Video Hub
  • 12VDC/1.25A External Power Supply
  • Rubber Stand-offs
  • Installation Guide
  • Muxlab 2 Year Warranty
