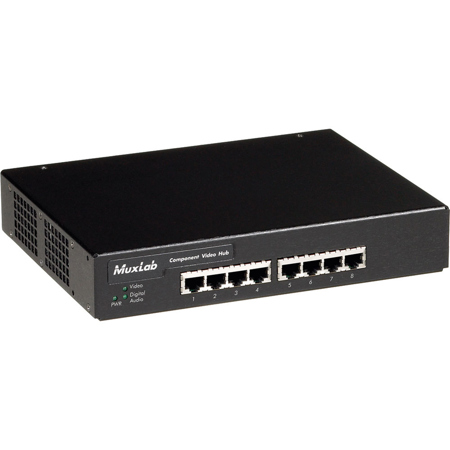

Muxlab Component Video Hub, 8 Ports, 220-240V

SKU: ML500251 MFR: 500251
Earn VIP Reward Points

Key Features

  • Distribute component video easily with this 8-port Muxlab Video Hub, perfect for home theaters.
  • Enjoy wide compatibility with DVD players, projectors, and more using this reliable video distribution.
  • Achieve long-range video signal extension up to 1000ft via Cat 5 twisted pair for 480i/p resolutions.
  • Utilize ground loop isolation on every port to ensure a clear, noise-free video and audio experience.
  • This video hub supports both digital and analog audio, configurable via a simple switch setting.
  • Ideal for digital signage, retail displays, and boardroom systems, offering versatile video solutions.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Component Video Hub, 8 Ports, 220-240V Specifications

  • Compatibility

    500000, 500002, 500009, 500020, 5000021, 500050, 500051, 500052, 500053 Baluns

  • Environment

    Component baseband video (YPbPr/RGB) and Digital or Mono Analog Audio

  • Devices

    DVD players, DVR, AV matrix switchers, DLP projectors, plasmas, monitors, home theatre

  • Applications

    Digital signage
    Boardroom systems
    Residential and commercial multi-display systems
    Classroom training
    Retail systems
    Electronic billboards
    Electronic signs
    Video kiosks
    Point-of-sale displays
    In-store video

  • Transmission

    Transparent to the user

  • 3dB Bandwidth

    Video: DC to 77 MHz
    Digital Audio: DC to 52MHz
    Analog Audio: 20 to 20kHz

  • Insertion Loss

    Video: -0.8 dB at 4 MHz
    Digital Audio: -1.26 dB at 4 MHz
    Analog Audio: 1 dB at 4 MHz (differential)

  • Video Return Loss

    -23dB at 4 MHz

  • Common Mode Rejection

    Video: Greater than 40 dB over the frequency range
    Digital Audio: Greater than 31.5 dB over the frequency range
    Analog Audio: Greater than 60 dB at 1 KHz; Greater than 40 dB over the frequency range
    (Input: balanced. Output: balanced)

  • Crosstalk Immunity

    -60 dB at 4 MHz

  • Total Harmonic Distortion

    Analog Audio: Less than 0.007% at 1KHz

  • Max. Distance

    via Cat 5 Twisted Pair (UTP)
    Component Video (YPbPr):
    480i/p: 1000' (305m)
    720p and 1080i: 500' (152m)
    Digital Audio: 600' (182m)
    Analog Audio: 3250' (990m)
    Measured between Source (i.e.: DVD) and Destination (i.e.: Monitor) with Hub placed anywhere between the source and destination

  • Cascadability

    Up to 2 levels

  • Ground Loop Isolation

    Ground loop isolation on every port

  • Cable

    UTP
    24 gauge or lower solid copper twisted pair wire impedance: 100Ohms at 1 MHz, Cat 3 or better

  • Connectors

    Source Input: 1x RJ45S on rear panel
    Looping Output: 1x RJ45S on rear panel
    Distribution Outputs: 16x RJ45S on front panel

  • RJ45 Pin Configuration

    Red (Pr) : Pins 7 [R] & 8 [T]
    Green (Y) : Pins 3 [R] & 6 [T]
    Blue (Pb) : Pins 1 [R] & 2 [T]
    Digital/Analog Audio : Pins 4 [R] & 5 [T] (Reverse Polarity Sensitive)

  • Configuration Switch

    Sets hub to digital or analog audio on fourth twisted pair, Factory default: analog audio

  • LED Diagnostics

    Power (green), Video Sync (green), Digital Audio Sync (green)

  • Power Supply

    External AC: 220/240V
    DC: 12VDC, 1.25A

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Compliance

    FCC, CE-EMC Directive 89/336/EEC, RoHS, WEEE

  • Dimensions

    9.12 x 6.75 x 1.75" / 23.16 x 17.15 x 4.45cm

  • Weight

    3.3lbs / 1.50kg

About Muxlab Component Video Hub, 8 Ports, 220-240V

Where high-quality video and audio distribution is a necessity, the Component Video Hub stands out as a reliable solution. This efficient device allows for the seamless distribution of one full component video (YPbPr/RGB) source and one digital or analog audio video source to up to eight destinations. This makes it an ideal choice for those seeking a cost-efficient cabling solution.

Designed with eight ports, this user-friendly hub is compatible with the 500251 model. Its versatility is further enhanced by its ability to support a wide voltage range of 220-240V, making it a suitable choice for use in various regions and countries.

Whether you're connecting computers, printers, or other networking equipment to a local area network (LAN) or wide area network (WAN), this durable Component Video Hub is designed to meet your needs. Manufactured by Muxlab, a renowned name in the field of networking equipment, you can trust in the quality and reliability of this product.

In a world where connectivity is key, this Component Video Hub provides an efficient and reliable solution for your networking needs. Its high-quality, durable design, coupled with its user-friendly interface, makes it a standout choice in the realm of networking equipment.

Muxlab Component Video Hub, 8 Ports, 220-240V Features

  • Modular RJ45 on input and output
  • Cascadable up to two levels
  • Supports 480i/p up to 1000' (305m) via Cat5
  • Supports 720p/1080i/p up to 500' (152m) via Cat 5
  • Supports digital or combined L/R analog audio channel on fourth twisted pair
  • Ground loop isolation on every port
  • Integrates seamlessly with Muxlab Video Ease baluns

Key Features

  • Distribute component video easily with this 8-port Muxlab Video Hub, perfect for home theaters.
  • Enjoy wide compatibility with DVD players, projectors, and more using this reliable video distribution.
  • Achieve long-range video signal extension up to 1000ft via Cat 5 twisted pair for 480i/p resolutions.
  • Utilize ground loop isolation on every port to ensure a clear, noise-free video and audio experience.
  • This video hub supports both digital and analog audio, configurable via a simple switch setting.
  • Ideal for digital signage, retail displays, and boardroom systems, offering versatile video solutions.

What's in the box:

  • Muxlab Component Video Hub
  • 12VDC/1.25A External Power Supply
  • Rubber Stand-offs
  • Installation Guide
  • Muxlab 2 Year Warranty
