31% Off

Muxlab Component Video Hub, 16 Ports, 110V

SKU: ML500252 MFR: 500252
Earn VIP Reward Points

Key Features

  • Distribute component video signals to 16 displays with this video distribution hub.
  • Achieve long-range video: up to 1000ft for 480i/p via Cat 5 twisted pair UTP cable.
  • Enjoy reliable signal transmission with ground loop isolation on every port of the hub.
  • Perfect for digital signage, retail, and boardroom systems needing video distribution.
  • Supports both digital and analog audio; easily switch configurations on the video hub.
  • This component video hub ensures high-quality video with a 77 MHz bandwidth.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Component Video Hub, 16 Ports, 110V Specifications

  • Compatibility

    500000, 500002, 500009, 500020, 5000021, 500050, 500051, 500052, 500053 Baluns

  • Environment

    Component baseband video (YPbPr/RGB) and Digital or Mono Analog Audio

  • Devices

    DVD players, DVR, AV matrix switchers, DLP projectors, plasmas, monitors, home theatre

  • Applications

    Digital signage
    Boardroom systems
    Residential and commercial multi-display systems
    Classroom training
    Retail systems
    Electronic billboards
    Electronic signs
    Video kiosks
    Point-of-sale displays
    In-store video

  • Transmission

    Transparent to the user

  • 3dB Bandwidth

    Video: DC to 77 MHz
    Digital Audio: DC to 52MHz
    Analog Audio: 20 to 20kHz

  • Insertion Loss

    Video: -0.8 dB at 4 MHz
    Digital Audio: -1.26 dB at 4 MHz
    Analog Audio: 1 dB at 4 MHz (differential)

  • Video Return Loss

    -23dB at 4 MHz

  • Common Mode Rejection

    Video: Greater than 40 dB over the frequency range
    Digital Audio: Greater than 31.5 dB over the frequency range
    Analog Audio: Greater than 60 dB at 1 KHz; Greater than 40 dB over the frequency range
    (Input: balanced. Output: balanced)

  • Crosstalk Immunity

    -60 dB at 4 MHz

  • Total Harmonic Distortion

    Analog Audio: Less than 0.007% at 1KHz

  • Max. Distance

    via Cat 5 Twisted Pair (UTP)
    Component Video (YPbPr):
    480i/p: 1000' (305m)
    720p and 1080i: 500' (152m)
    Digital Audio: 600' (182m)
    Analog Audio: 3250' (990m)
    Measured between Source (i.e.: DVD) and Destination (i.e.: Monitor) with Hub placed anywhere between the source and destination

  • Cascadability

    Up to 2 levels

  • Ground Loop Isolation

    Ground loop isolation on every port

  • Cable

    UTP
    24 gauge or lower solid copper twisted pair wire impedance: 100Ohms at 1 MHz, Cat 3 or better

  • Connectors

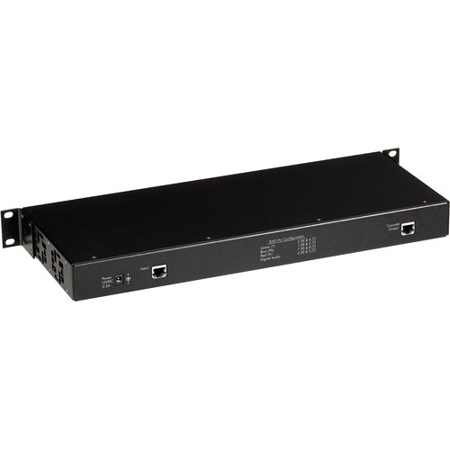

    Source Input: 1x RJ45S on rear panel
    Looping Output: 1x RJ45S on rear panel

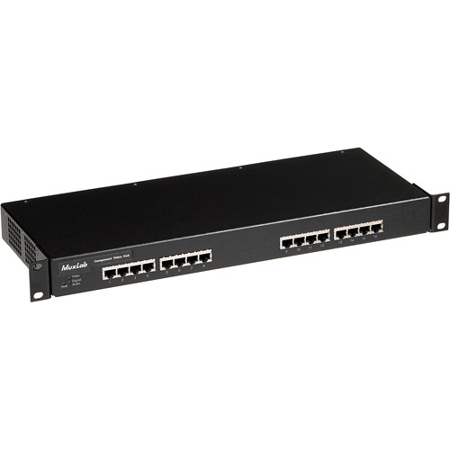

    Distribution Outputs: 16x RJ45S on front panel

  • RJ45 Pin Configuration

    Red (Pr) : Pins 7 [R] & 8 [T]
    Green (Y) : Pins 3 [R] & 6 [T]
    Blue (Pb) : Pins 1 [R] & 2 [T]
    Digital/Analog Audio : Pins 4 [R] & 5 [T] (Reverse Polarity Sensitive)

  • Configuration Switch

    Sets hub to digital or analog audio on fourth twisted pair, Factory default: analog audio

  • LED Diagnostics

    Power (green), Video Sync (green), Digital Audio Sync (green)

  • Power Supply

    External AC: 110V
    DC: 12VDC, 2.5A

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Compliance

    FCC, CE-EMC Directive 89/336/EEC, RoHS, WEEE

  • Dimensions

    19 x 6.75 x 1.75" / 48.26 x 17.15 x 4.45cm

  • Weight

    5.5lbs / 2.49kg

  • UPC Code

    627699002520

About Muxlab Component Video Hub, 16 Ports, 110V

The Muxlab Component Video Hub is a robust and high-quality solution for distributing a full component video (YPbPr/RGB) source along with a digital or analog audio video source to multiple destinations. Designed for versatility and efficiency, this hub supports up to sixteen (16) ports, making it an ideal choice for those who require a comprehensive and reliable network connection for a multitude of devices.

Crafted with durability in mind, the 500252 model ensures a more cost-efficient cabling system by allowing seamless distribution to either eight (8) or sixteen (16) locations, depending on the model selected. This makes it a perfect fit for environments such as offices, homes, and small businesses that demand high-speed Ethernet network connections for devices like computers, printers, and other network-enabled equipment.

The Component Video Hub boasts 16 Gigabit Ethernet ports, each capable of supporting speeds of up to 10 Gbps, ensuring that your network's performance is maximized for efficiency and speed. Compatibility with a wide range of operating systems, including Windows, MacOS, and Linux, adds to the hub's versatility, making it a universally adaptable solution for various setups.

Ease of use is at the forefront of the design, with the hub engineered to be user-friendly, allowing for quick and straightforward setup. This is particularly beneficial for users with limited technical knowledge who need a reliable network without the complexity of a difficult installation process.

In summary, the Muxlab Component Video Hub stands out as a durable, high-quality, and efficient networking solution that offers reliable performance and versatility for connecting multiple devices within a network. Whether for professional or personal use, this hub is engineered to meet the demands of any setting requiring a robust component video and audio distribution network.

Muxlab Component Video Hub, 16 Ports, 110V Features

  • Modular RJ45 on input and output
  • Cascadable up to two levels
  • Supports 480i/p up to 1000' (305m) via Cat5
  • Supports 720p/1080i/p up to 500' (152m) via Cat 5
  • Supports digital or combined L/R analog audio channel on fourth twisted pair
  • Ground loop isolation on every port
  • Integrates seamlessly with Muxlab Video Ease baluns

Key Features

  • Distribute component video signals to 16 displays with this video distribution hub.
  • Achieve long-range video: up to 1000ft for 480i/p via Cat 5 twisted pair UTP cable.
  • Enjoy reliable signal transmission with ground loop isolation on every port of the hub.
  • Perfect for digital signage, retail, and boardroom systems needing video distribution.
  • Supports both digital and analog audio; easily switch configurations on the video hub.
  • This component video hub ensures high-quality video with a 77 MHz bandwidth.

What's in the box:

  • Muxlab Component Video Hub
  • 12VDC/2.5A External Power Supply
  • Installation Guide
  • Muxlab 2 Year Warranty
