Compatible with Muxlab CCTV baluns 500009, 500023, 500015, 500130, 500122
Private and public broadband CATV, VHF and FM networks
Terrestrial CATV, local channel amplified antennas, DVD players, RF modulators, splitters, cable modems and other broadband video equipment, Does not support satellite dish RF
Transparent to the user
3 dB Bandwidth: 5 - 900 MHz
Video Channels Supported: CATV 2 - 142, VHF channels 2 - 13, FM broadcast band
<10 dB: 5 - 10 MHz / <3 dB: 10 - 600 MHz
<4 dB: 600 - 725 MHz / <3 dB: 725 - 900 MHz
-20dB or higher at 5 - 900 MHz
Cat5e/6 UTP: 24-AWG or lower solid copper twisted pair
Impedance: 100 - 120Ohms
Coax: Impedance - 75Ohms at 1 MHz (RG6)
Connector - Input: "F" connector - male
Connector - Output: RJ45 - female
RJ45 Pin Configuration: RJ45 Pins 7 & 8
Up to 330' (100 m) via Cat 5 UTP depending on channel frequency and input power
Maximum 330' (100 m) at CATV Channel 2. May require tilt amplifiers at higher frequencies
Floating 24VAC at 70mA RMS max.
Shares power with camera PSU. Connects to camera's power terminals.
FCC Part 15 Class A, CE
ABS
0 to 40 deg. C / 32 to 104 deg. F
-10 to 70 deg. C / 14 to 158 deg. F
Up to 95% (non-condensing)
1 x 2.5" / 2.54 x 6.35cm
1.05oz / 29.77g
627699903025
For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

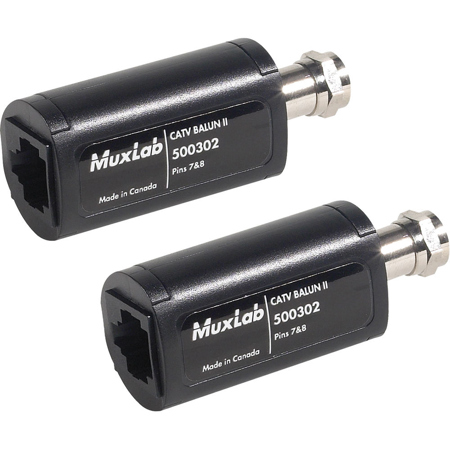

Take your CATV, VHF, and FM system integration to the next level with the durable and high-quality CATV Balun II (500302), now available in a convenient 2-pack. This innovative device allows you to replace traditional 75-ohm coaxial cable with a more efficient and cost-effective single pair of Cat 5 UTP cable in specific applications.
Designed for seamless integration into structured cabling systems, the CATV Balun II offers a reliable and versatile solution for broadband video systems. Whether you're setting up for educational purposes in schools, operational use in government buildings, professional environments like offices and financial institutions, or for healthcare in hospitals, this balun chassis is engineered to meet your needs. It's also perfectly suited for hospitality settings such as hotels and residential complexes, ensuring that CATV equipment can be conveniently moved or added to any modular wall outlet.
The CATV Balun II stands out for its compatibility with a wide array of devices and its ability to work in conjunction with RF splitters, combiners, amplifiers, and cable modems, creating a comprehensive cabling solution. Its high-quality construction by Muxlab, a brand synonymous with excellence in the field, guarantees that the CATV Balun II is not only easy to use but also built to last, even under the demands of regular and rigorous use.
Upgrade your network's capabilities and maintain a high level of signal integrity with the CATV Balun II, the professional's choice for a streamlined and efficient broadband video system.
