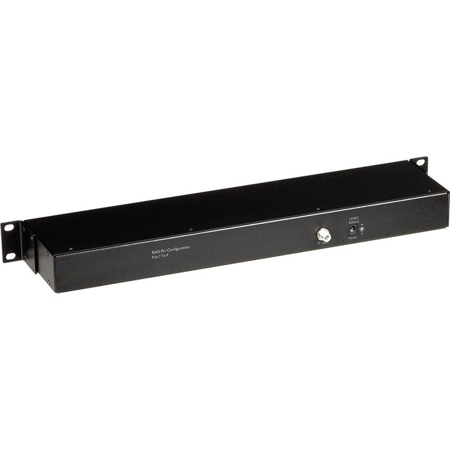

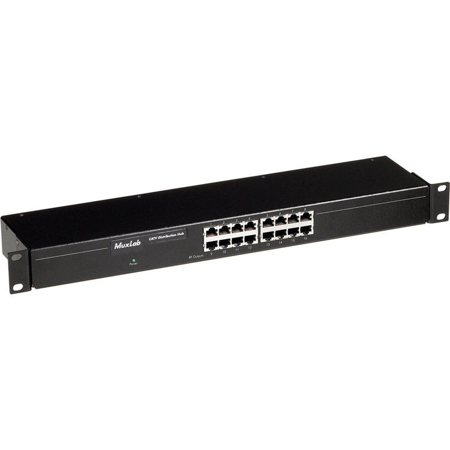

Muxlab CATV Distribution Hub, 16 Ports, 110V

500302, 500306 Baluns

Broadband CATV, VHF, FM, broadband Internet, digital cable. Does not support satellite RF

Set-top tuners, RF splitters, RF amplifiers, modulators, combiners, re-processors, cable modems

Transparent to the user

Residential, apartment, condominiums, hotels, offices, schools, hospitals, airports, trading floors

CATV: 54-900 MHz
Return Channel: 5-42MHz

Forward path (S21):
55-450 MHz: > 12 dB, 450-900 MHz: > 10 dB
Reverse path (S12):
5-42 MHz: > 0 dB

>5 dB from 5 to 42MHz 6 dB from 55 to 900 MHz

> 30 dB from 5 to 900 MHz

1U Rack-mount

Cat 5 UTP: Dependent on channel frequency, input power and receiver sensitivity

Power: 1x Green LED

UTP:
24 gauge or lower solid copper twisted pair wire impedance: 100Ohms at 1 MHz
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' at 1 MHz

"F":
Impedance: 75Ohms at 1 MHz (RG6)

RF Input: "F" connector
RF Outputs: 8x or 16x RJ45S depending on model

RJ45 Pins 7&8

12VDC at 400 mA

Desktop 110-240V switching power supply
Input: 100-240V, 0.5A Max, 50-60Hz
Output: +12V, 1.25A. Output Power: 15W Max. Detachable AC power cord

0 to 40 deg. C / 32 to 104 deg. F

-10 to 70 deg. C / 14 to 158 deg. F

Up to 95% (non-condensing)

Anodized aluminum

FCC, CE, RoHS

19 x 3.9 x 1.75" / 48.26 x 9.91 x 4.45cm

41oz / 1162.33g
